BTS Confined Space Pro-3 Premium Tripod Kit with IKAR HRA Fall Arrest Blocks with Recovery Winch

Tripods are essential pieces of equipment for any operations within confined spaces.

One of their main purposes is to simplify access and escape for workers that are set to operate within these hazardous areas. At the same time, they can make it much easier to rescue workers if something goes wrong. An injured worker can be winched back to safety with the help of a tripod.

The BTS Confined Space Pro-3 Premium Tripod Kit includes:

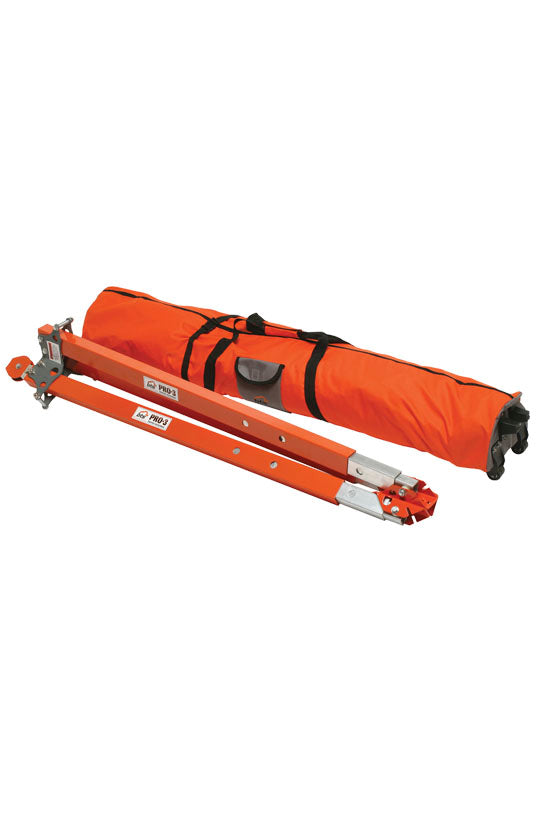

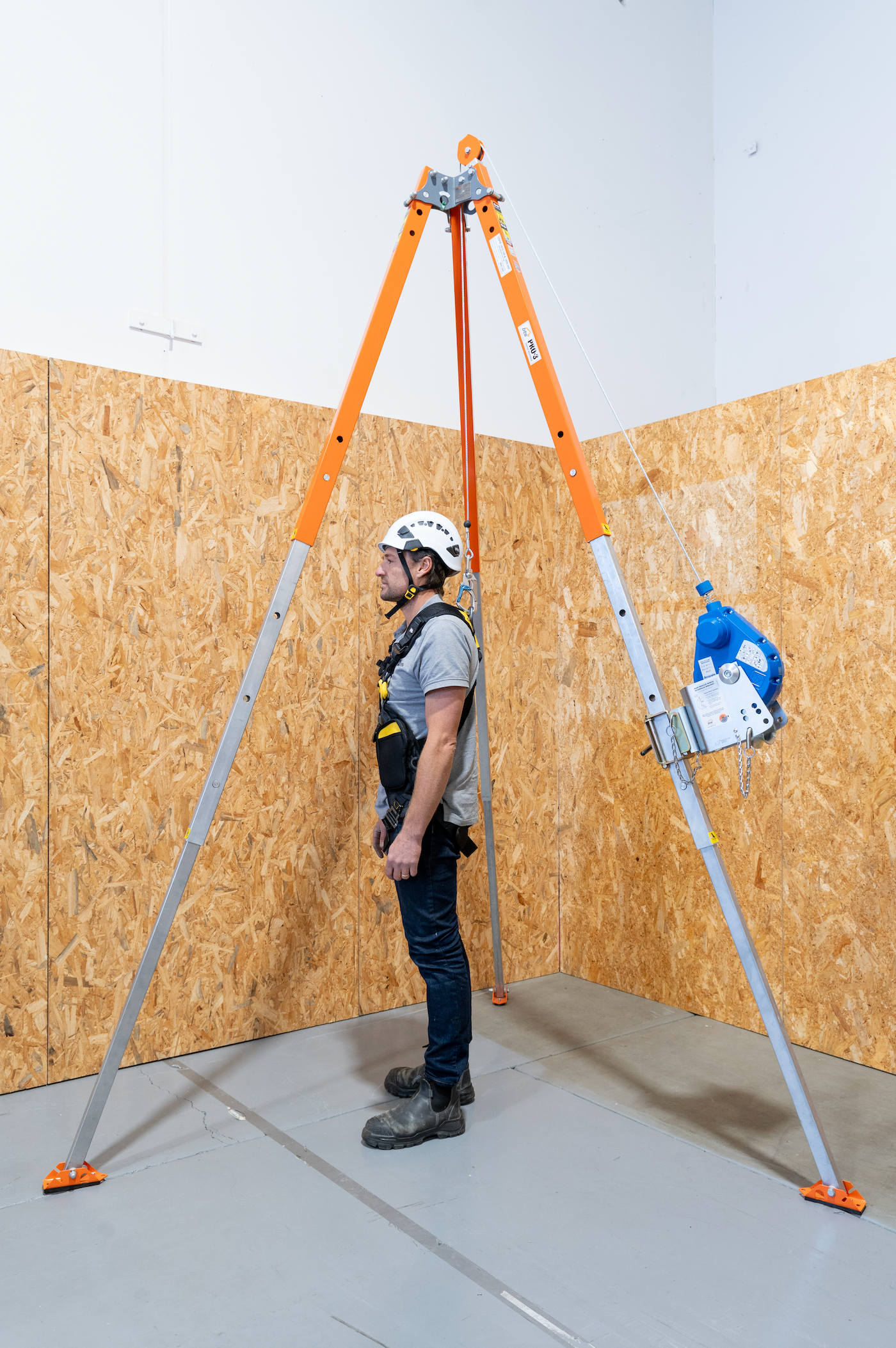

1. BTS Confined Space Pro-3 Tripod

The BTS Pro Series Tripods remain the markets first choice as a suitably rated anchorage device for when workers are entering confined spaces and for use in fall arrest and rescue applications.

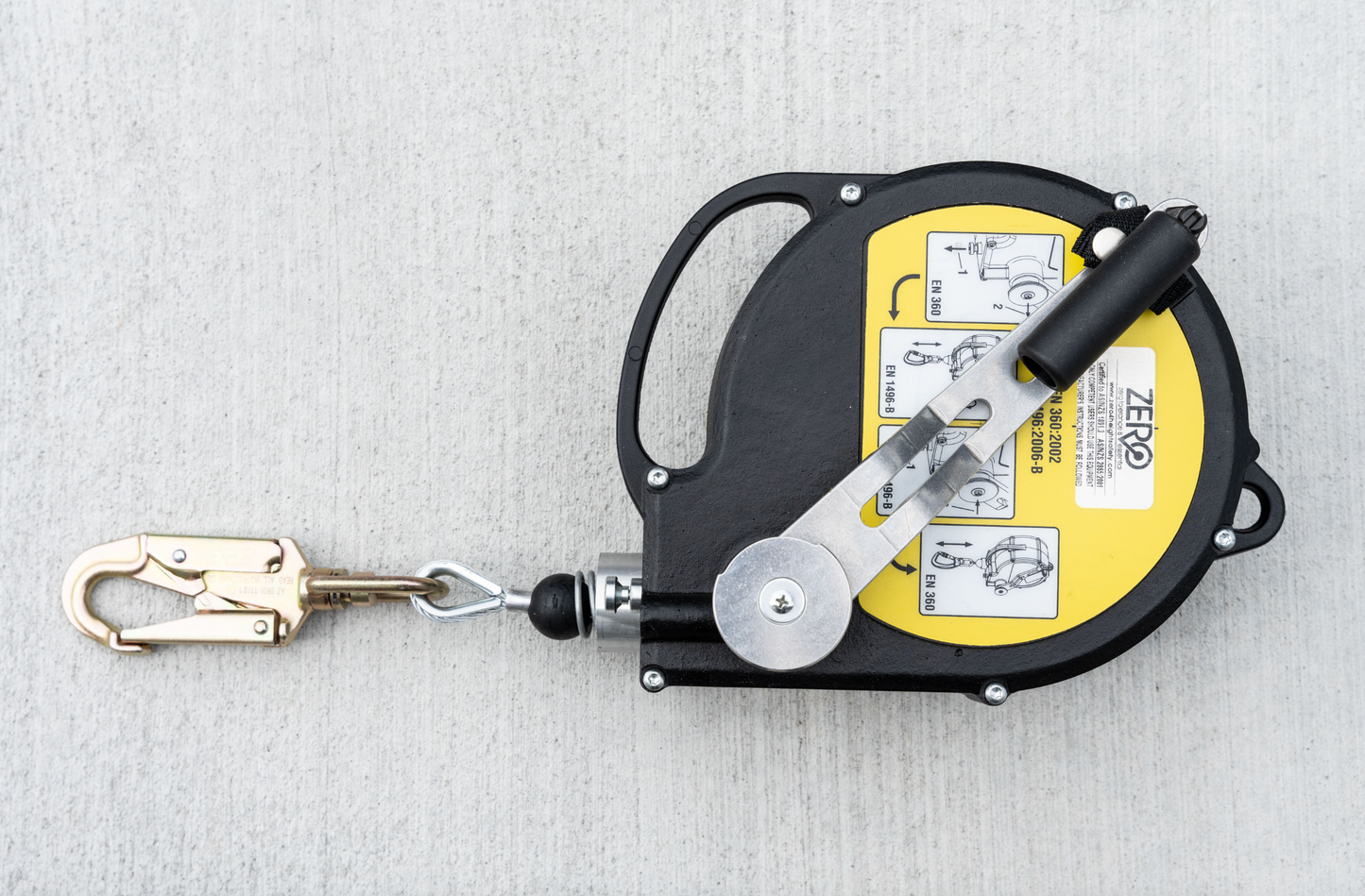

2. IKAR HRA Fall Arrest Blocks with Recovery Winch

IKAR height-safety devices with rescue hoisting facilities are equipped with a winching unit, type 3 SRL certified to EN 360 standards. In case of a rescue after a fall, the person who has suffered the accident can be rescued quickly and safely.

• Fall Arrest Block with an integral recovery mechanism
• Fitted with steel rope lifeline within a rugged aluminium housing
• The attachment anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.
• In addition to connecting the fall arrest block with recovery mechanism, it can also be fitted to tripods. To protect the user when ascending and descending a vertical shafts such as sewer systems.
• The inbuilt recovery mechanism, can be engaged by pulling a pin on the side of the block and engaging a winding handle.  This then allows the device to be used to lift or lower a casualty post fall, or if they have become incapacitated in a confined space.
• Certified to EN 360 standards
• Available in 12m, 18m, 24m and 30m.

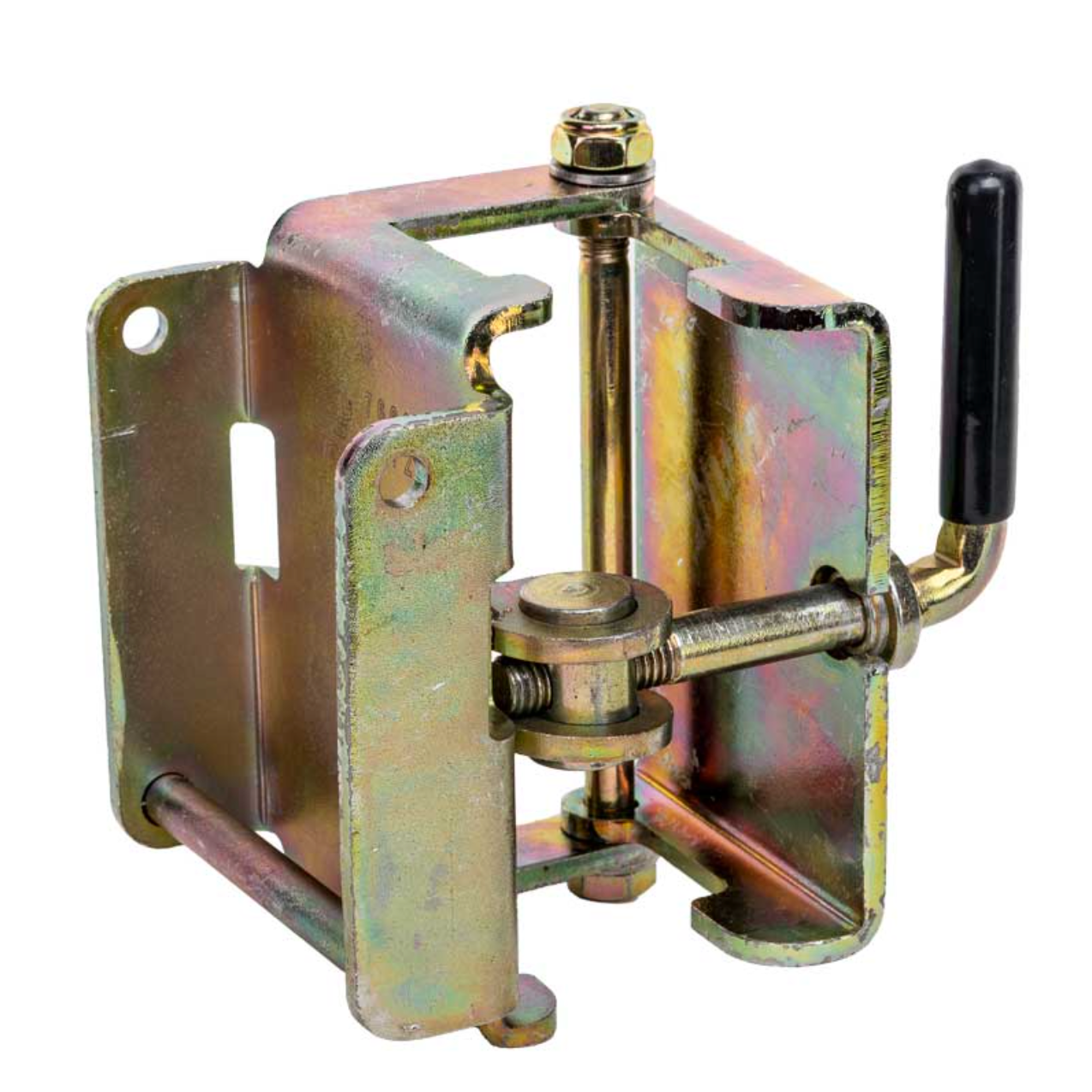

3. Universal Quick Release Interface Tripod Bracket Assembly

The universal quick release  interface Tripod bracket offers a tool free assembly and remove option on tripods for the installation of a Winch or rescue device utilising a female universal interface bracket (60202UF).

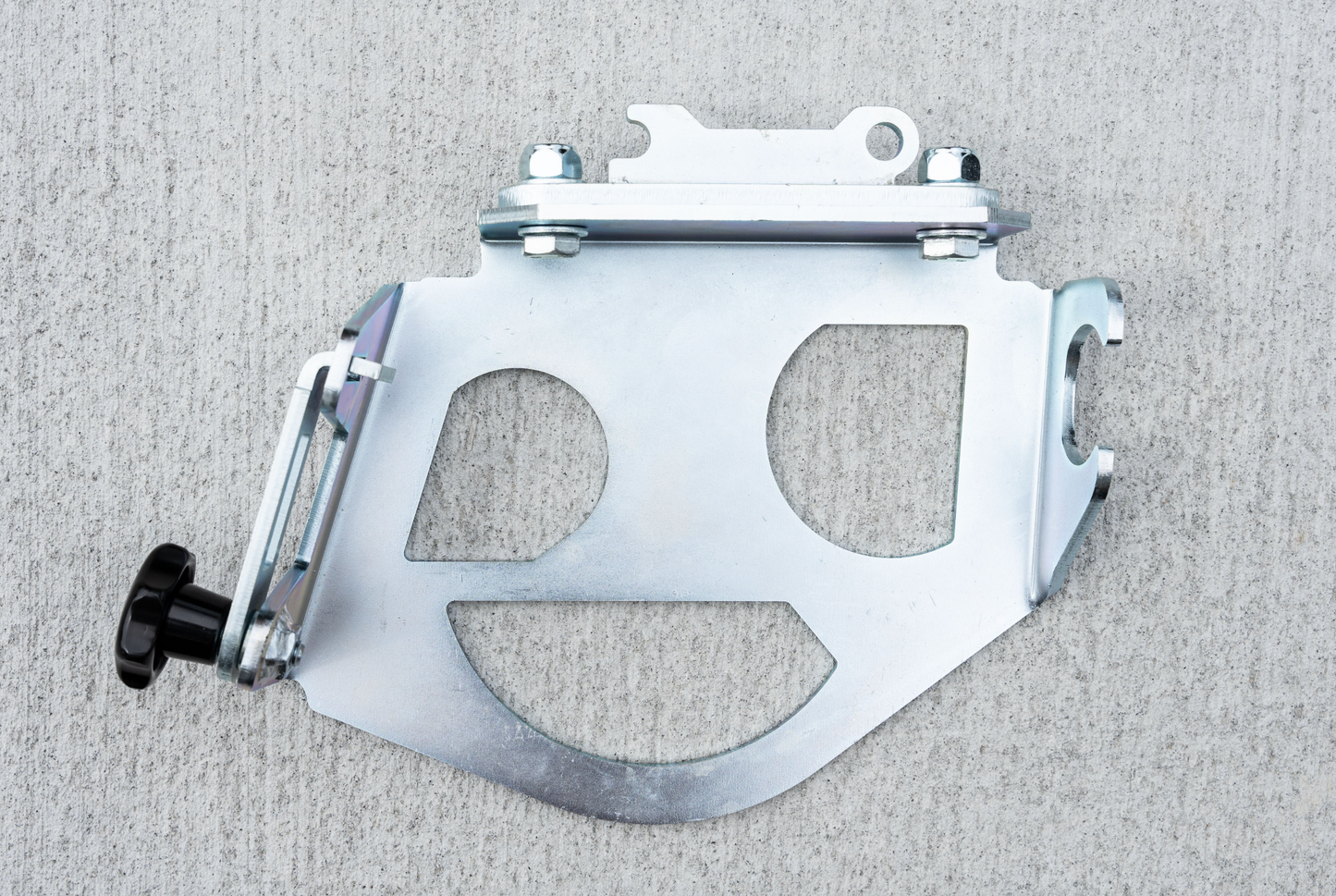

4. IKAR PRO-3G/6G Davit Bracket c/w Female Single Interface Brackets

IKAR PRO-6G Davit Bracket c/w Female Single Interface Brackets allows the IKAR Inertia Reel to be mounted on our BTS Davits or Tripods.

Part No. 60202UIM

Bracket for IKAR HRA to PRO-6G Davit or Pro-3 Tripod
