BTS Confined Space Pro-3 Basic Tripod Kit

$3,761.00
 per
Shipping calculated at checkout.

Tripods are essential pieces of equipment for any operations within confined spaces.

One of their main purposes is to simplify access and escape for workers that are set to operate within these hazardous areas. At the same time, they can make it much easier to rescue workers if something goes wrong. An injured worker can be winched back to safety with the help of a tripod.

The BTS Confined Space Pro-3 Basic Tripod Kit includes:

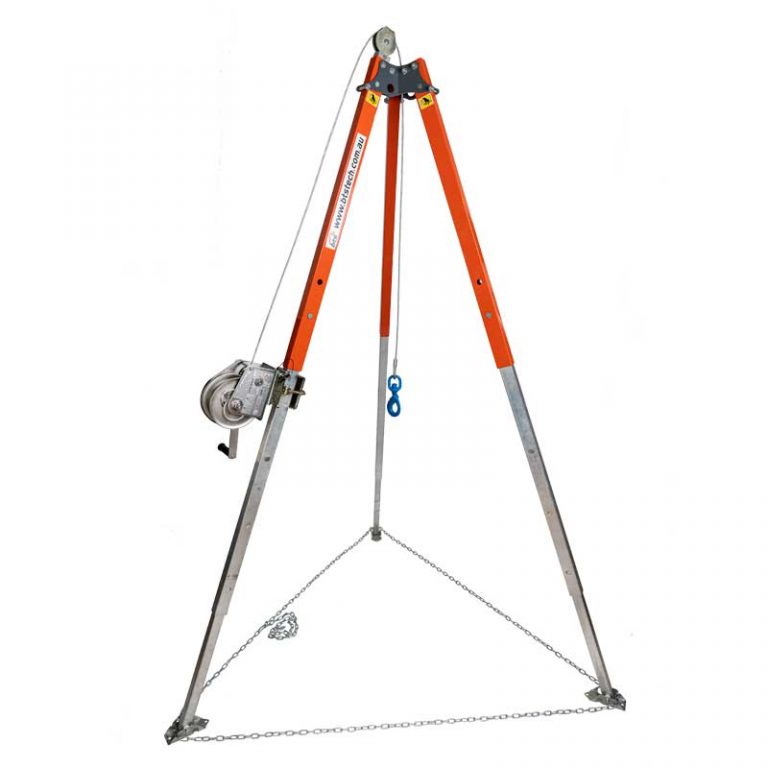

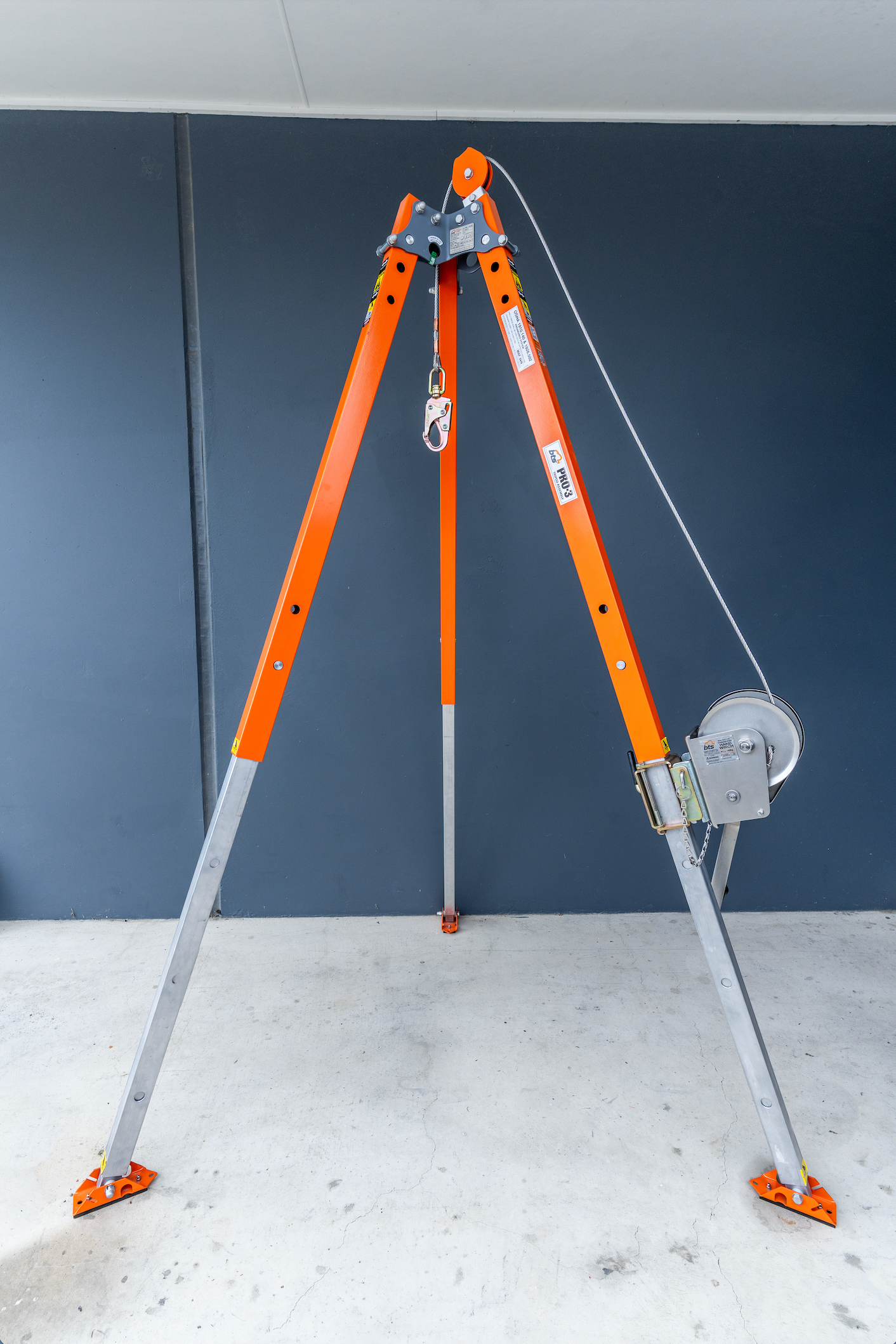

1. BTS Confined Space Pro-3 Tripod

The BTS Pro Series Tripods remain the markets first choice as a suitably rated anchorage device for when workers are entering confined spaces and for use in fall arrest and rescue applications.

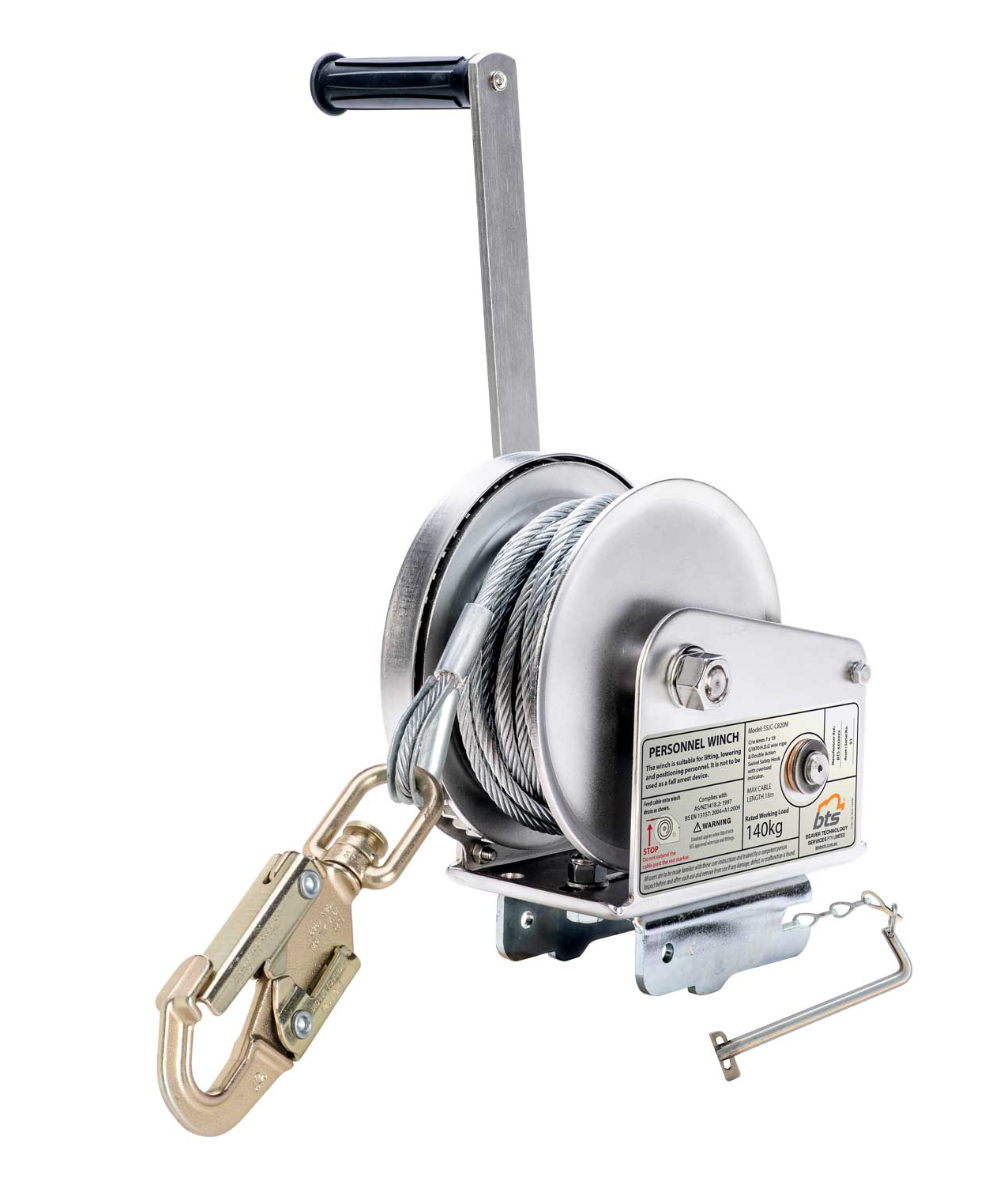

2. Stainless Steel Hand brake Winch

SSJC-C820M Stainless Steel Load Brake Winch - Rated Capacity: 140Kg (Lifting).

COMPLIES WITH AS1418.2, BS EN 13157: 2004+A1:2009 and relative EC Declaration of Conformity 2006 / 42 / EC / appendix 11A.

Complete with 18m x 6mm 7x19 H.D.G Grade G1870 Wire rope, Quick Release Single Universal Interface Bracket and 6mm Grade 80 Eye Swivel Self Locking Hook

3. Universal Quick Release Interface Tripod Bracket Assembly

The universal quick release  interface Tripod bracket offers a tool free assembly and remove option on tripods for the installation of a Winch or rescue device utilising a female universal interface bracket (60202UF).

In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

Tripod:

  • Individually adjustable telescopic legs with toe spikes, bolt/peg holes and chain holes for added stability
  • BTS-Klick dual action quick release buttons for fast and reliable height adjustment
  • Lightweight aluminium construction
  • Tripod head features integrated pulley wheel allowing for winch wire cable to pass through center of Tripod
  • Additional rated 3 tie-off points in the Tripod head for attaching additional personal fall protection equipment
  • Powder coated in Hi-Vis Safety Orange for ease of identification in trafficable work areas
  • Compatible for use with other reputable height safety manufacturer winches
  • Tripod comes complete in canvas storage bag with wheels for ease of storage and transport by one person
  • Minimal set up required - Assembled by one person
  • Manufactured, Tested & Certified to AS/NZS5532-2013

Winch:

  • 5:1 gear ratio.
  • Very low operator effort required for easy operation.
  • Double pawl safety feature.
  • Stainless steel construction Grade 304.
  • Automatic weather proof Weston brake.
  • Automatic load actuated breaking system, no free wheeling under load.
  • Winch bearings made from bronze for additional corrosion resistance.
  • Ergonomic rubber handle.
  • Enclosed gear train.
  • Minimum handle effort to lift or pull.
  • C/w18m x 6mm (59’ x 1/4”) 7x19 H.D.G Grade G1870 Wire rope.
  • C/w Double Action Swivel Safety Hook with overload indicator.
  • Quick Release female Single Universal Interface Bracket c/w locking toggle pin & jack chain lanyard designed specifically to match BTS Universal quick release interface tripod bracket (30014SB) or BTS Quick Release Double Sided Universal Male Interface Bracket (60202UA).

Specifications

  • Rating: Tripod: 12kN Winch: Maximum Rated Capacity: 140Kg
  • Lifespan: Tripod: Ongoing with Periodic Inspections Winch: 10 Years
  • Weight: est. 25kg
  • Dimensions: Tripod: Maximum Height: 3.02m, Minimum Height: 1.55m Winch: 18m Length
  • Materials: Tripod: Aluminium Winch: 304 Stainless Steel
  • Safety Standard: Tripod: AS/NZS5532-2013 Winch: AS 1418.2-1997

Manufactured, Tested & Certified to AS/NZS5532-2013


Download Technical Notice PDF
  • Sku: 40014KIT
  • Vendor: BTS
