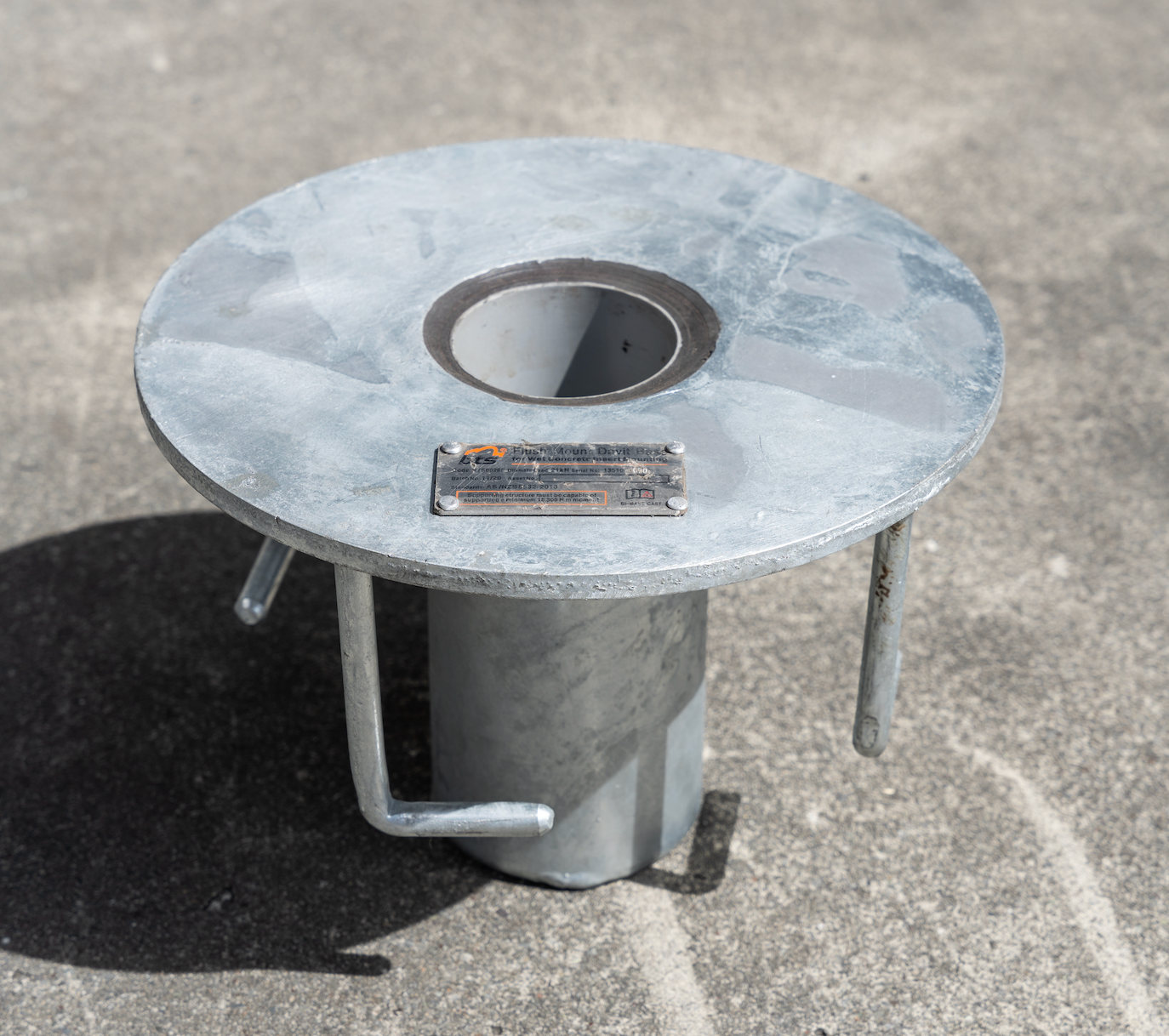

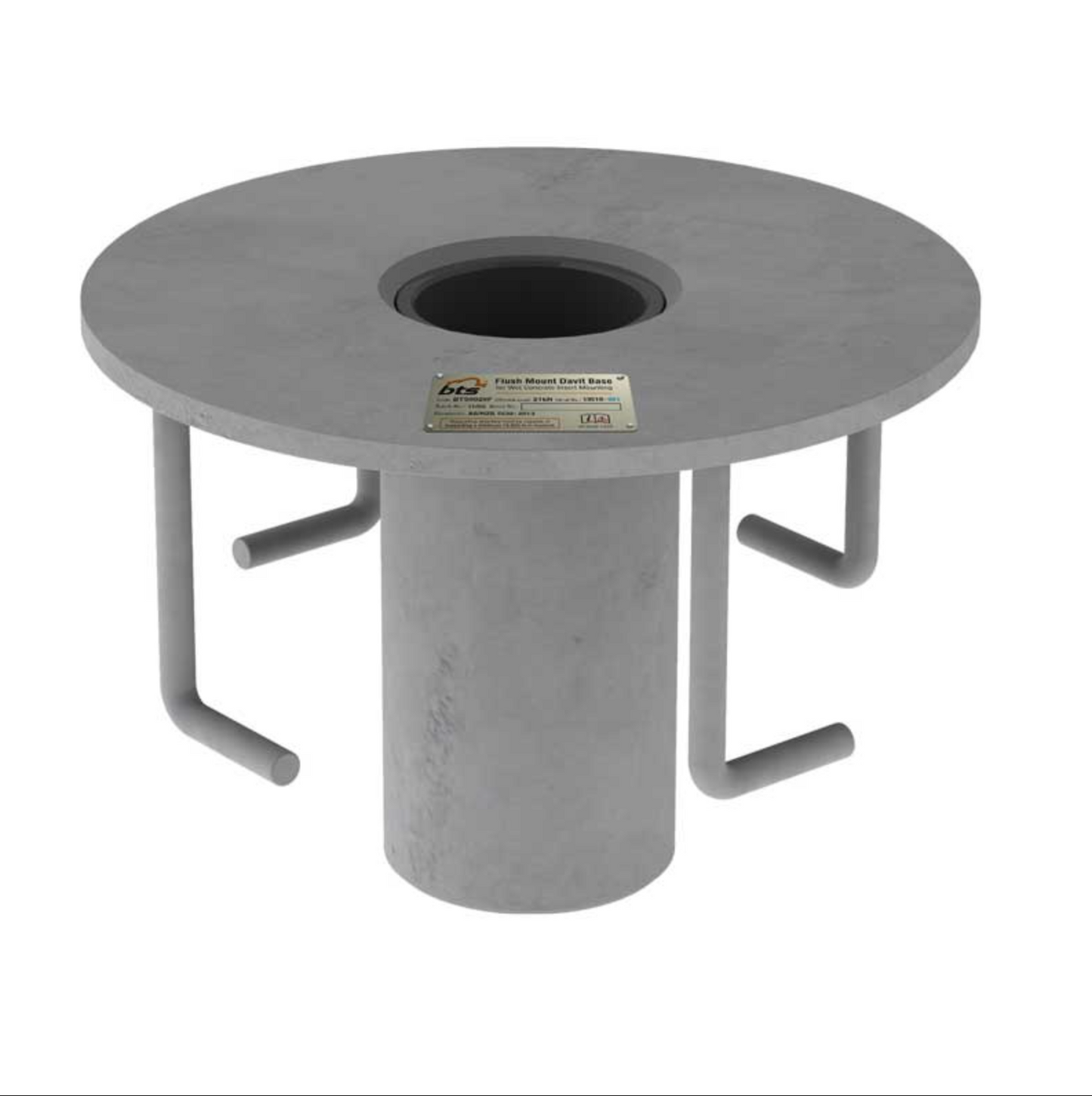

BTS Permanent Davit Base (Flush Mount for wet concrete insert mounting)

$473.00
 per
Shipping calculated at checkout.

PRO-Series Permanent davit bases are designed for permanent installations at locations where repeated or frequent use is required.

Permanent bases are available in a variety of designs, finishes, and materials to meet site specific requirements.

Heavy Duty Floor and Wall Mount Bases are intended typically for custom applications where an increased moment load capacity is required, for example: larger off sets or multiple system users.

NOTE:

Davit base must be installed by qualified and experienced personnel. Please contact NZ Access directly for further questions.

In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

  • Wet concrete insert mounting
  • This equipment is considered as part of a personal fall arrest system (PFAS) with a maximum capacity of 2 users at 140 kg (310lb) each when used with an approved BTS device
  • It can also be used (not concurrently) for materials handling with a maximum working capacity dependent to specific davit used

Specifications

  • Rating: 2 users at 140 kg (310lb) each
  • Lifespan: Ongoing with Periodic Inspections
  • Weight: 8.8kg

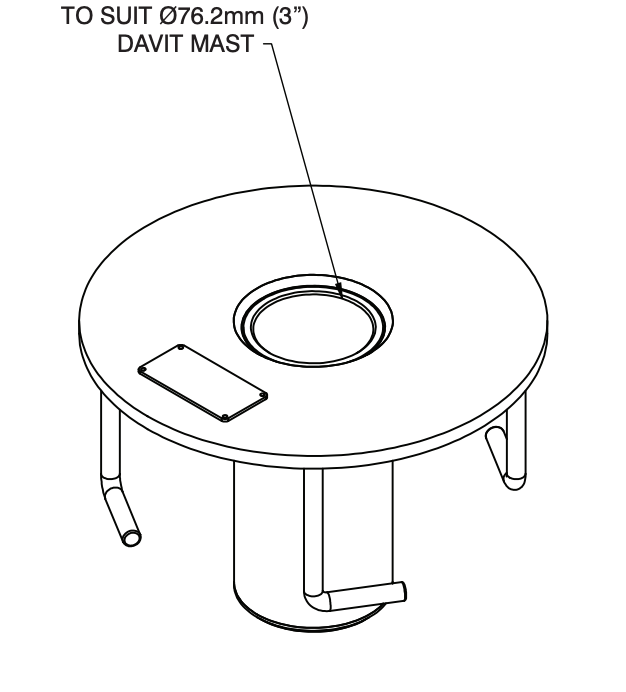

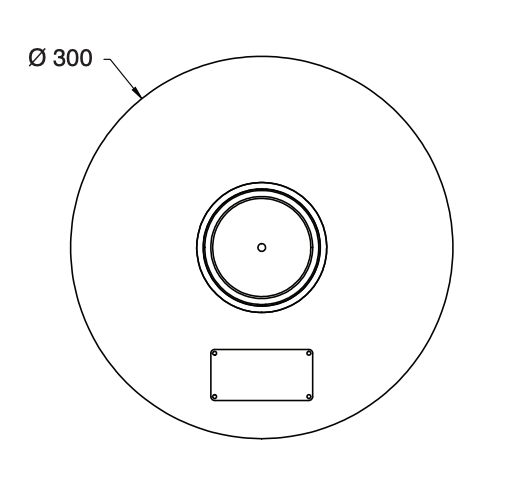

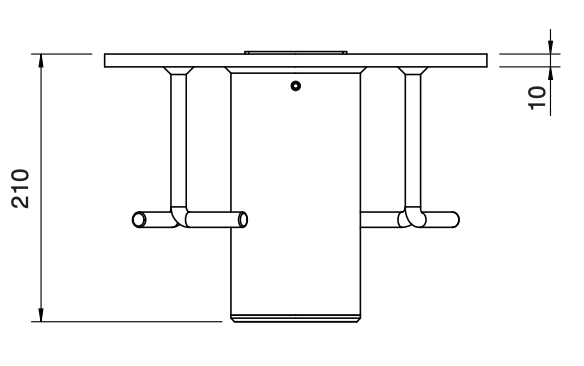

  • Dimensions: 300mm Diameter, 210mm High
  • Materials: Outer sleeve: Hot Dip Galvanised Steel - Sleeve bearing: PVC.
  • Safety Standard:


Download Technical Notice PDF
  • Sku: BTS0026F
  • Vendor: BTS
