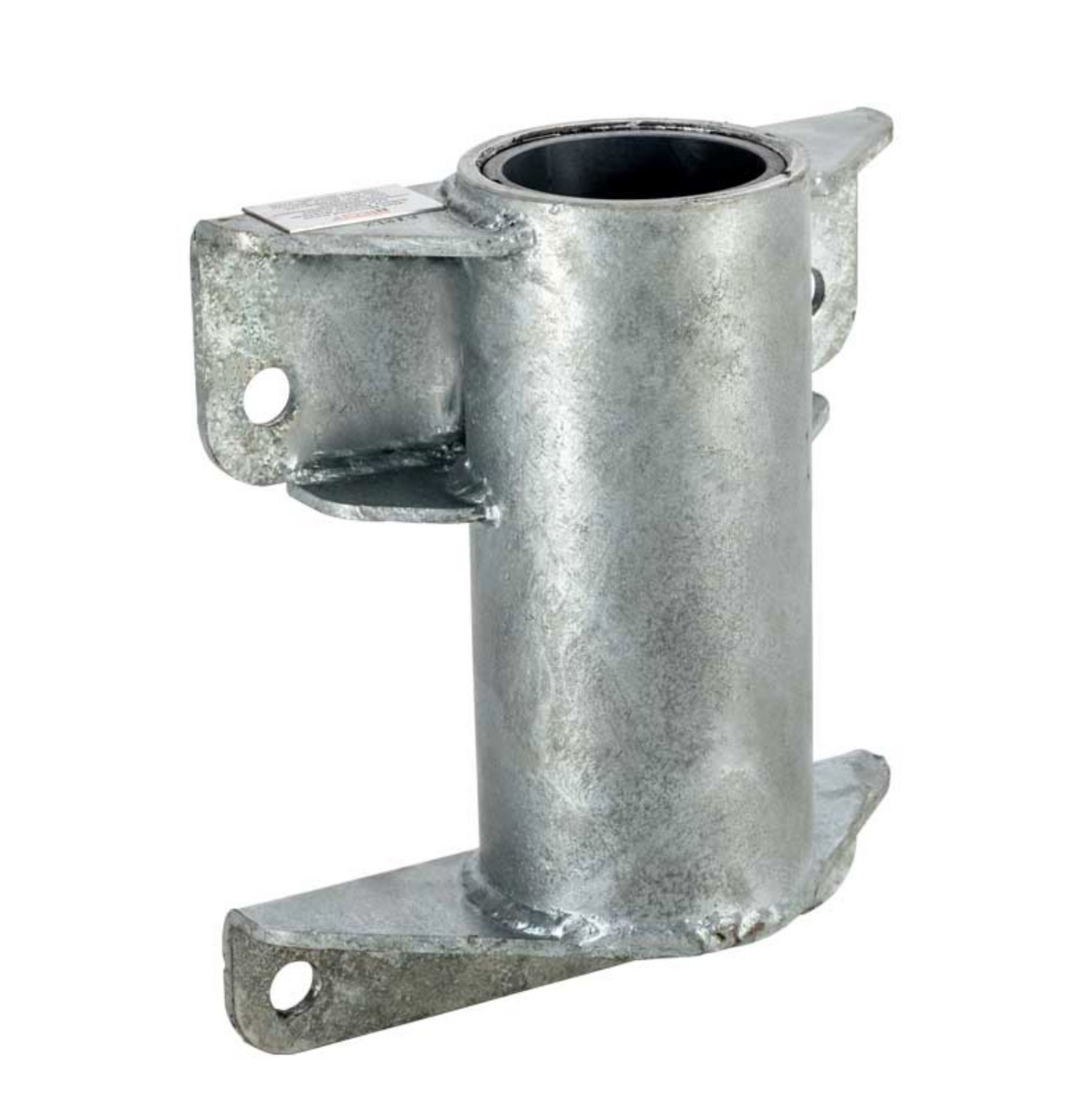

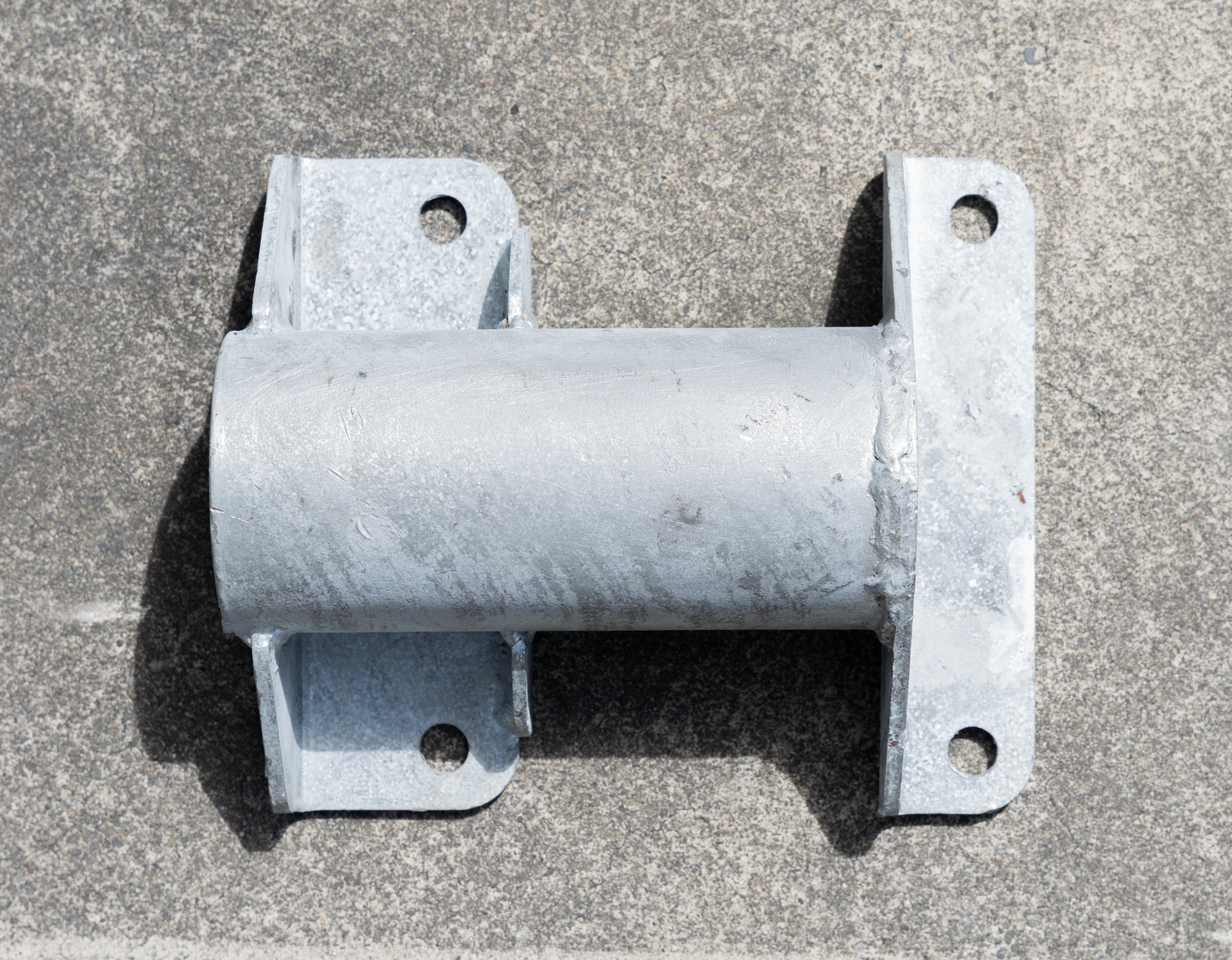

BTS Permanent Davit Base (Galvanised Wall Mount 4 point)

$385.00
 per
Shipping calculated at checkout.

PRO-Series Permanent davit bases are designed for permanent installations at locations where repeated or frequent use is required.

Permanent bases are available in a variety of designs, finishes, and materials to meet site specific requirements.

Heavy Duty Floor and Wall Mount Bases are intended typically for custom applications where an increased moment load capacity is required, for example: larger off sets or multiple system users.

NOTE:

Davit base must be installed by qualified and experienced personnel. Please contact NZ Access directly for further questions.

In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

  • Floor Mounted
  • This equipment is considered as part of a personal fall arrest system (PFAS) with a maximum capacity of 2 users at 136 kg
  • It can also be used (not concurrently) for materials handling with a maximum working capacity dependent to specific davit used

Specifications

  • Rating: 2 users at 136 kg each
  • Lifespan: Ongoing with Periodic Inspections
  • Weight: 6.2kg

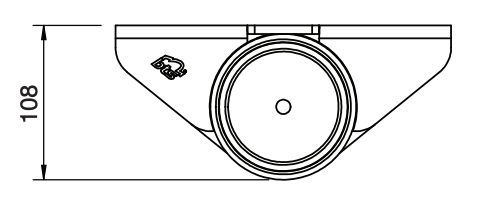

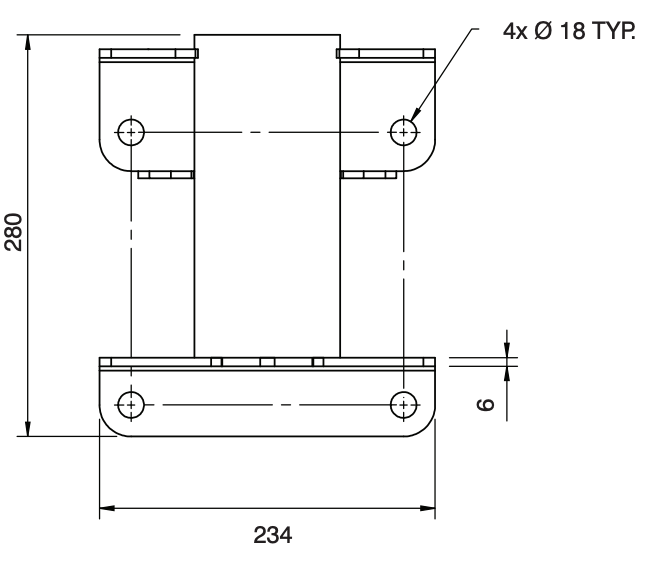

  • Dimensions: 234mmx108mmx280mm
  • Materials: Plate, gussets and sleeve: HDG (MS), Sleeve bearing: PVC Pipe
  • Safety Standard: AS/NZS 5532:2013

CEN/TS 16415:2013 (2 Users)
EN 795:2012 (Type B Anchor)


Download Technical Notice PDF
  • Sku: BTS0024
  • Vendor: BTS
