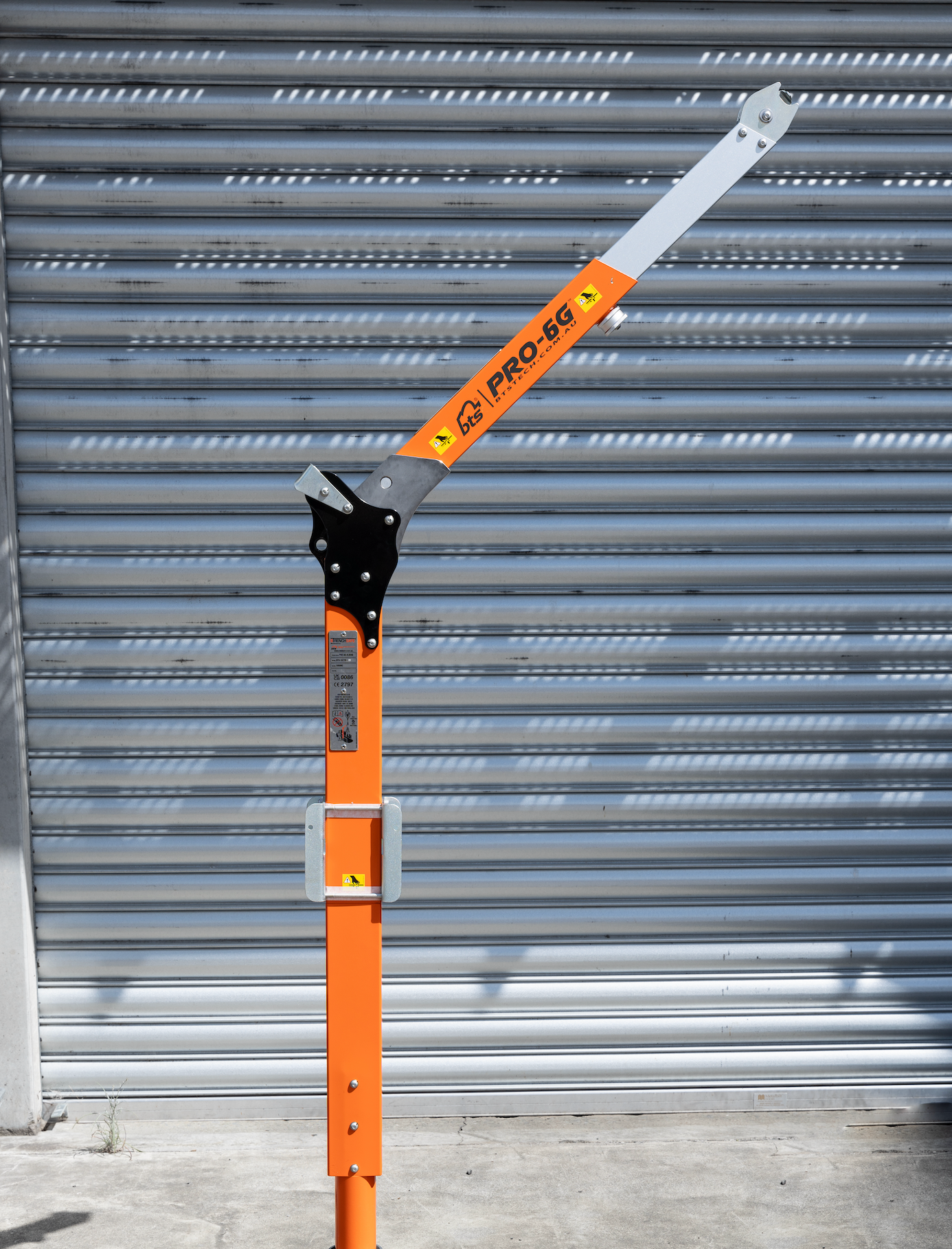

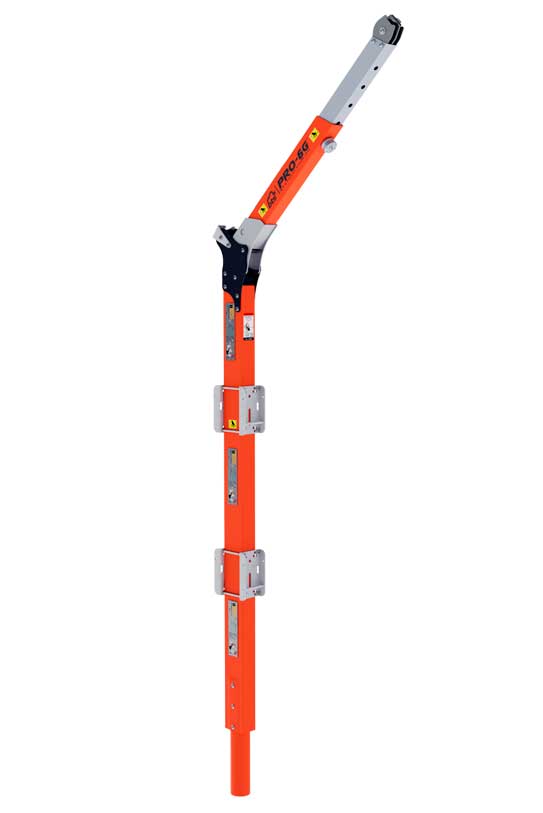

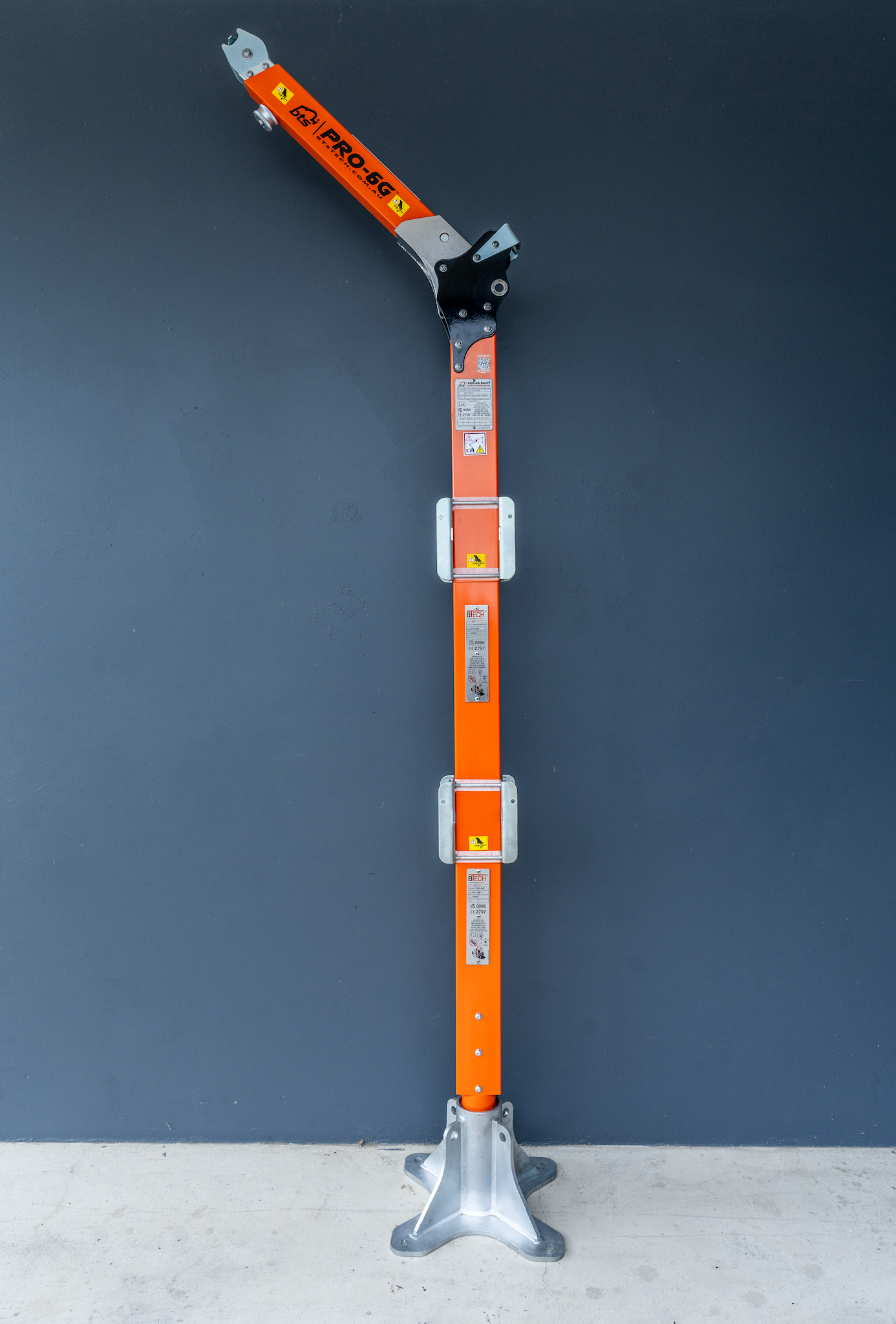

BTS Pro-6G Davit

$5,718.00
Shipping calculated at checkout.

The Pro-6G Davit a lightweight aluminium modular unit that is easy to set up by just one person. With a built in fall and davit overload indicator, it is rated to 22kN.

The PRO-6G davit system is a modular design allowing the user to create a davit setup for their individual requirements. With a range of brackets, winches and bases available, the PRO-6G Series is an ideal davit for confined space entry with a height of 1.96 - 2.79m and a offset of 0.5 to 0.7m.

In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

  • Manufactured using 6061-T6 Aluminium
  • Powder-coated with AkzoNobel Interpon D610 advance coating

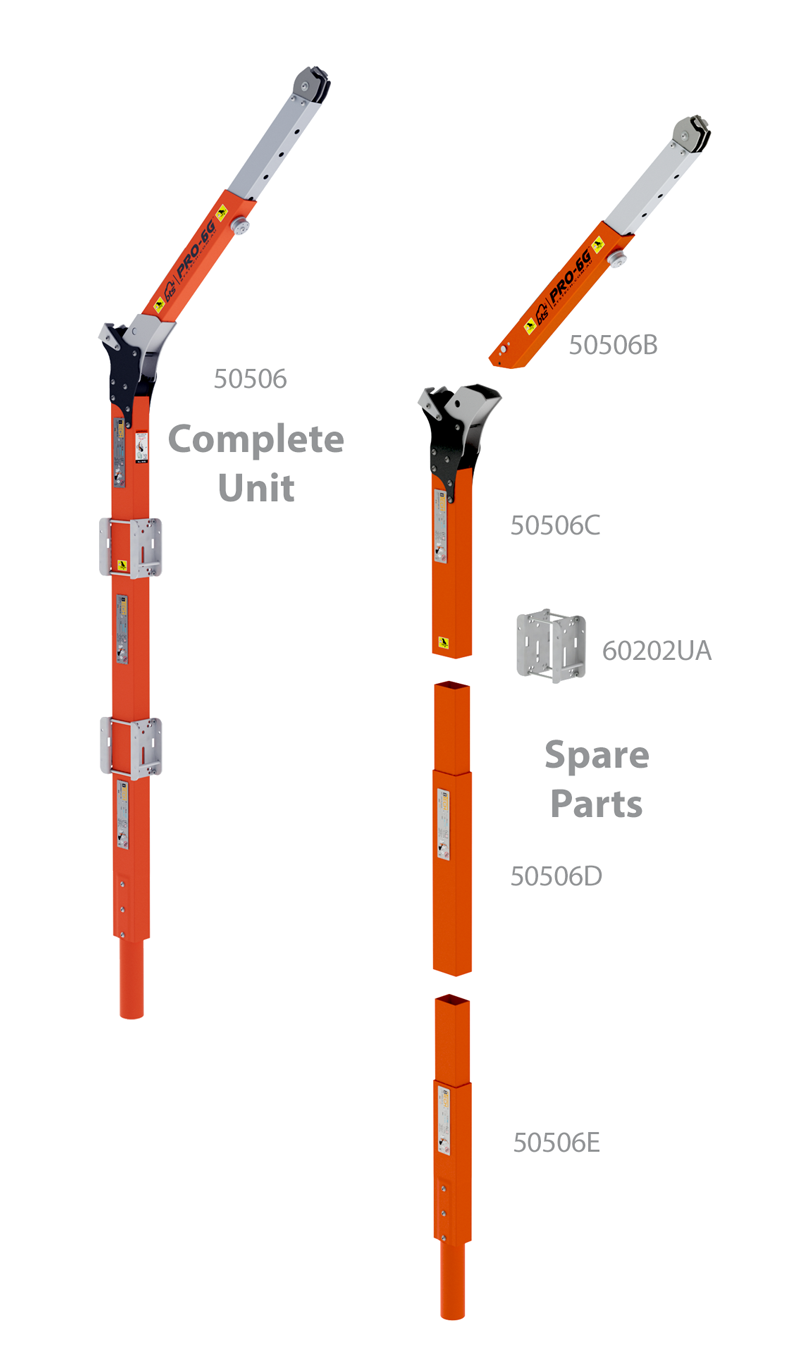

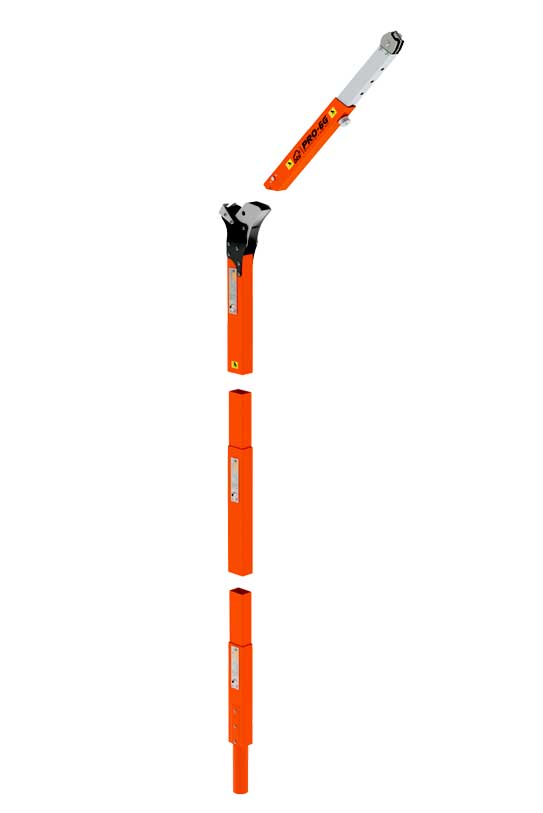

  • Modular construction of up to 4 pieces allowing for ease of transport and storage
  • Inbuilt visual fall & overload indicator
  • 5 Off set adjustment settings from 0.5 to 0.7m with self locking indexing pin
  • No special tools required for assembly or disassembly
  • Suitable for both man and material lifting/lowering applications
  • W.L.L. 140kg material handling
  • Primary anchor is Man rated to 12kN (136kg including all tools and clothing)
  • Secondary anchor is rated 15kN (anchor point for winch operator)
  • Suitable for use in both permanent and portable davit bases
  • Swivel 360 degrees
  • Quick connect winch interface bracket
  • AS/NZS 5532/ EN795/ ANSI Z359.18 compliant
  • Independently certified by BPEQ Registered Engineer for Queensland
  • Patent Pending System

Specifications

  • Rating: 22kN
  • Lifespan: Ongoing with Periodic Inspection
  • Weight:

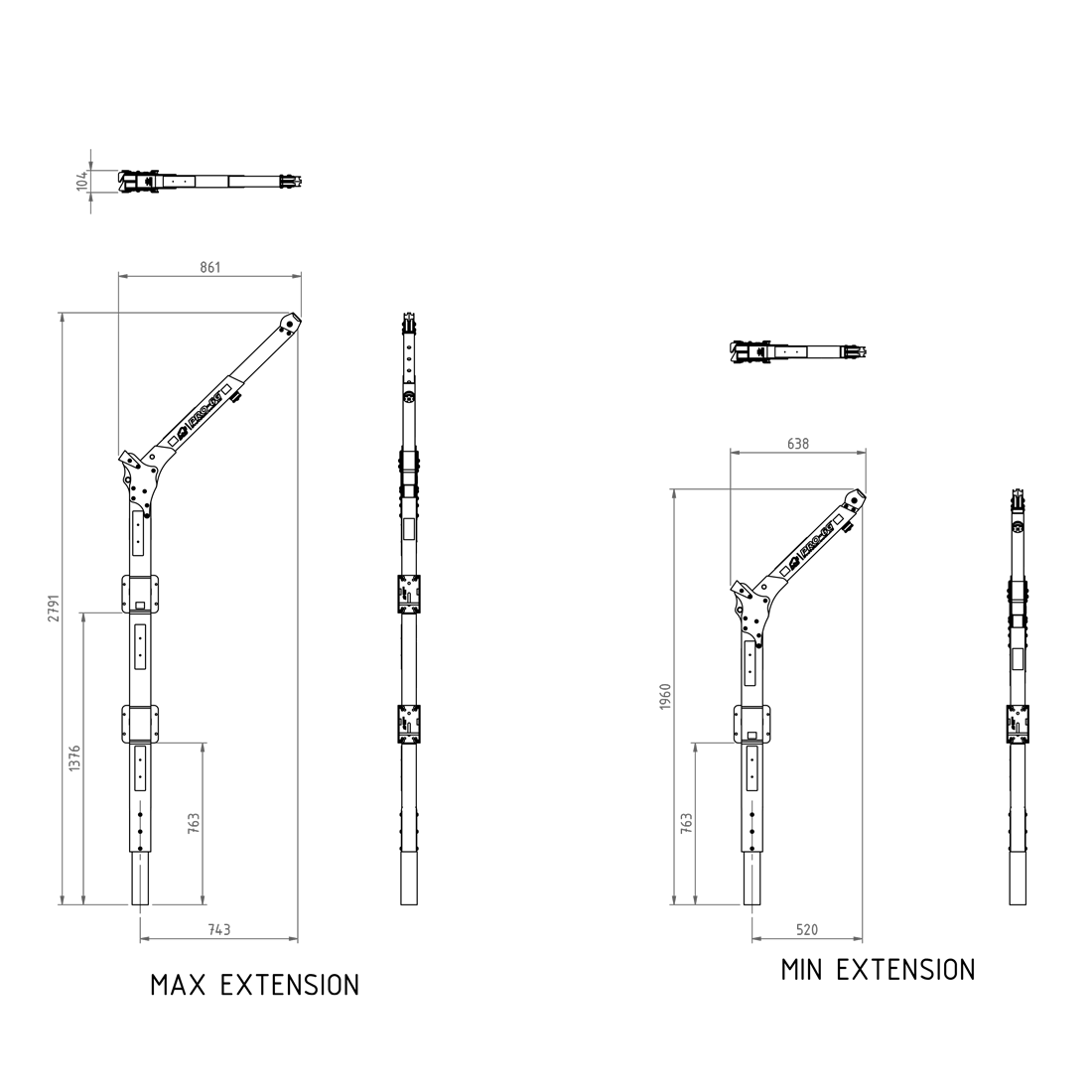

  • Dimensions: 1.96 - 2.79m and a offset of 0.5 to 0.7m
  • Materials: Lightweight material graded 6061-T6 Aluminum
  • Safety Standard: AS/NZS 5532/ EN795/ ANSI Z359.18


Download Technical Notice PDF
