FLEXBASE Portable Davit Base

Name: FLEXBASE Portable Davit Base
Brand: BTS
SKU: 30075
Price: 5339.0 NZD
Availability: InStock

$5,339.00

Shipping calculated at checkout.

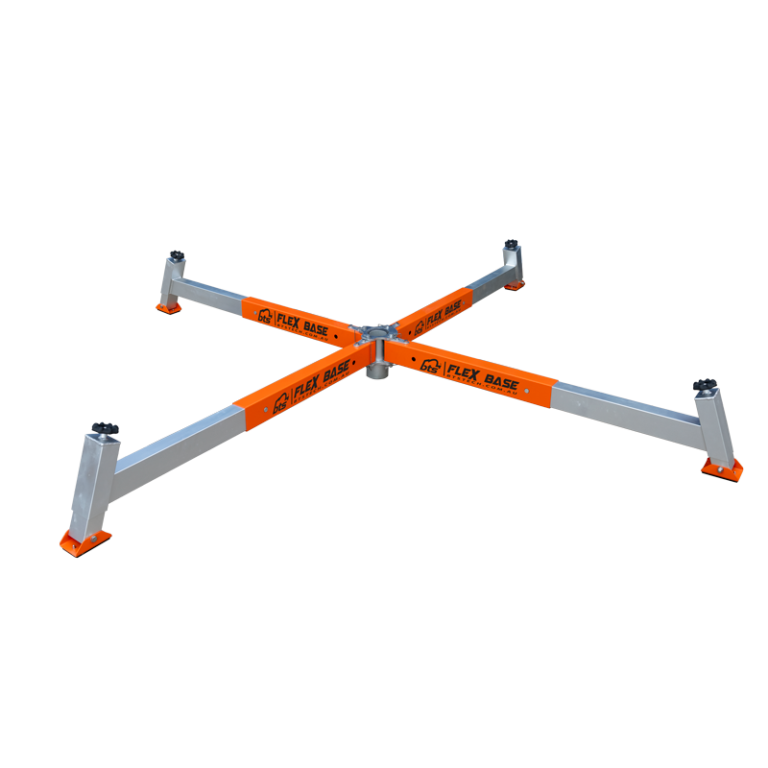

Engineered for flexibility and reliability, this innovative compact davit base adapts to your operational needs, enabling seamless performance in construction, maintenance, and rescue activities.

With easy setup, and robust construction, the BTS Flex Base Davit System is designed to allow you to quickly and securely carry out your lifting, confined space & working at heights tasks.

Standards: when used in a complete system

OSHA1926.502 and 1910.140.
ANSI Z359.18
AS/NZS 5532 & 1891.4

Material & Construction

Welded Base unit: STEEL (H.D.G Dip Spin.)
Leg Assembly: Aluminium 6061-T6 & Steel.
Sleeve bearing: PVC.

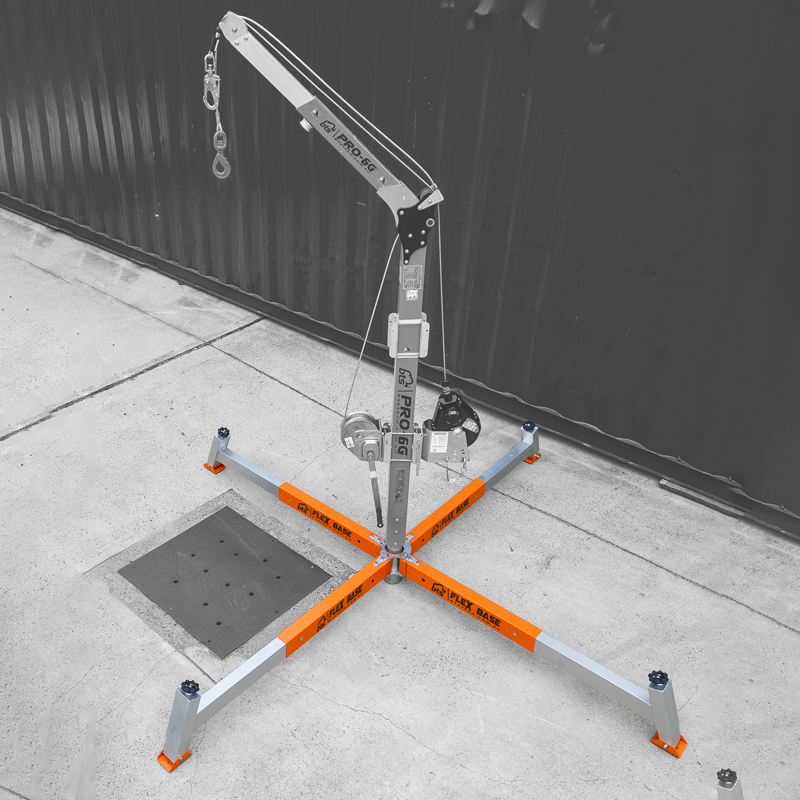

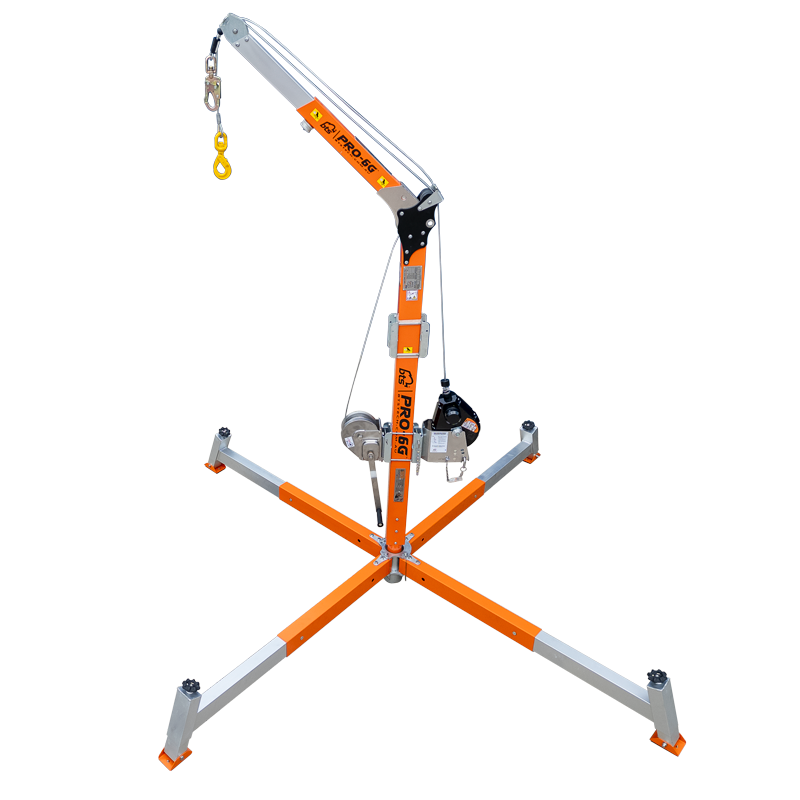

Note: Flex base shown with BTS PRO-6G Davit, Stainless Steel Material winch & IKAR SRL & Rescue winch (not included).

Product variants

In stock! Orders placed before 2pm ship same day.

Just $200.00 more for FREE STANDARD SHIPPING

Quantity

I agree with the Terms and Conditions.

Features

For use with the Pro-3G and Pro-6G davit.
Independent levelling function on each leg for uneven ground up to 3°.
Allows 360° slewing when legs fully extended.

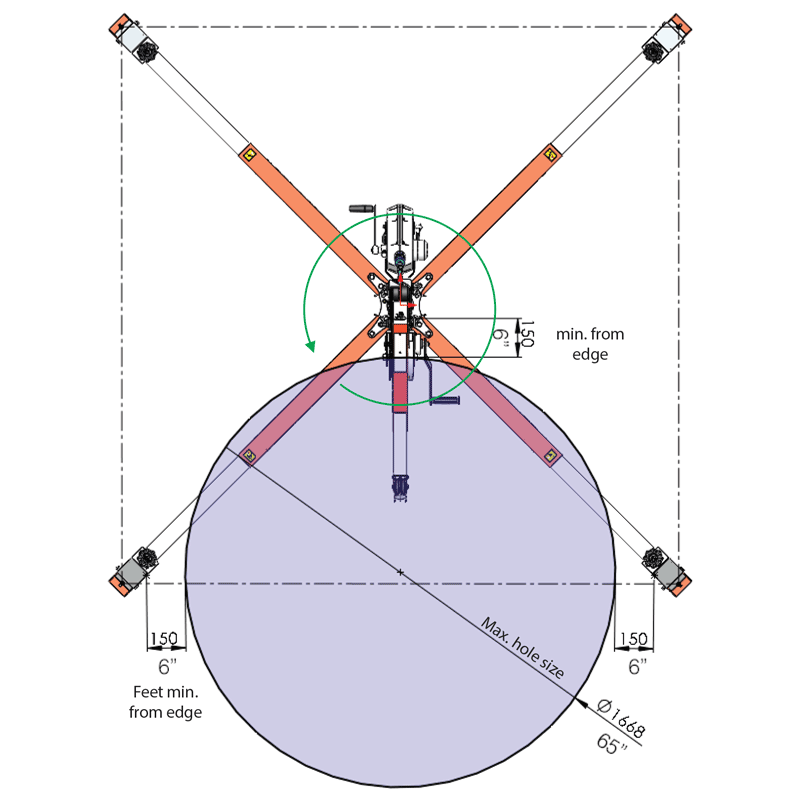

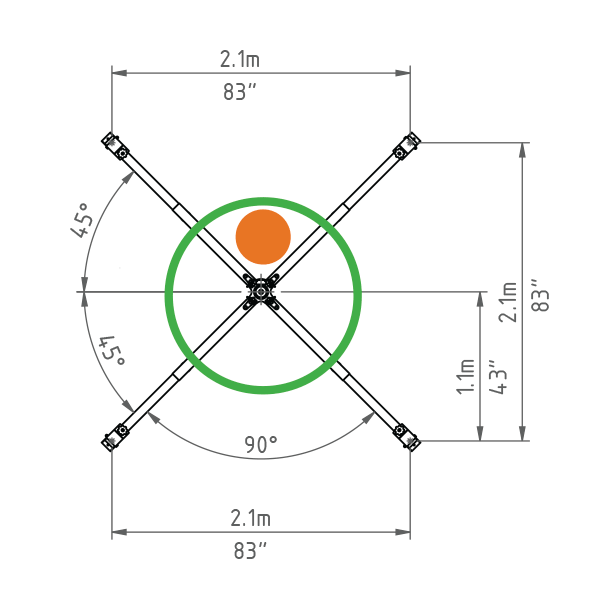

Adjustable for tighter workspace. (Note this will impact 360° slew ability). See Page 3
Weight 34kg (75lbs), however the unit can be broken down to individual components
weighing under 7kg (15lbs) each.

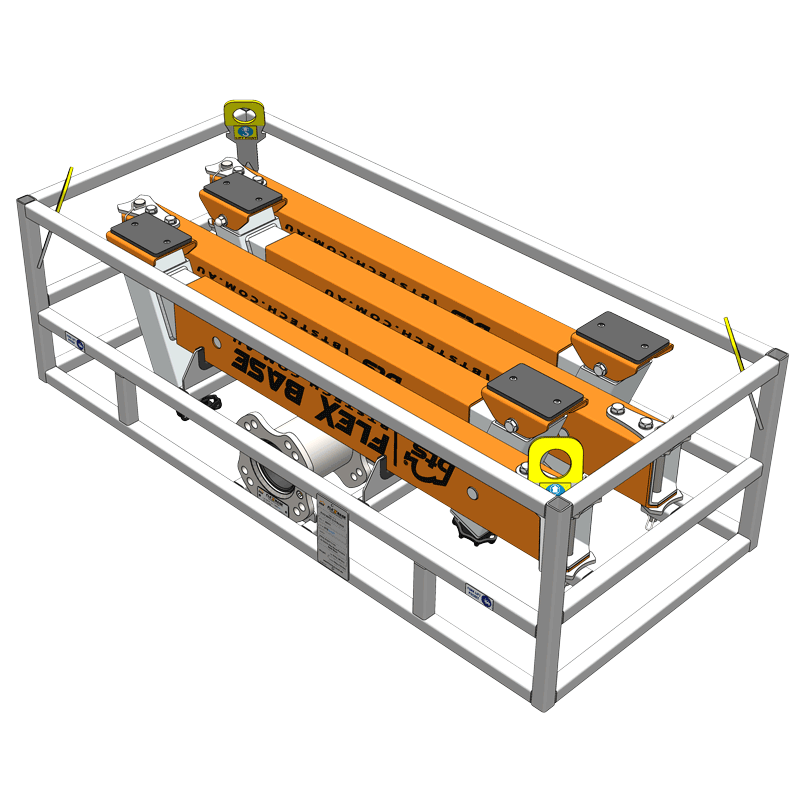

Compact transportation size.
Tool-free assembly.
This davit base is designed to be used in combination with other equipment from the
BTS range.

Specifications

Rating: Capacity: when used in a complete system Fall Arrest: Up to 2 users 140kg (310lbs) each. Work positioning: Up to 2 users 140kg (310lbs) each. Rescue retrieval: Up to 2 users 140kg (310lbs) each. MRC / WLL / Load: 140kg (310lbs) Max. 2 USERS = 1 in pit & 1 operating winch
Lifespan: Ongoing with Periodic Inspection
Weight: 34kg
Dimensions:
Materials: Welded Base unit: STEEL (H.D.G Dip Spin.) Leg Assembly: Aluminium 6061-T6 & Steel. Sleeve bearing: PVC.
Safety Standard: OSHA1926.502 and 1910.140. ANSI Z359.18 AS/NZS 5532 & 1891.4
