IKAR Heavy Duty PLW Man & Materials Winch

$2,260.00
 per
Shipping calculated at checkout.

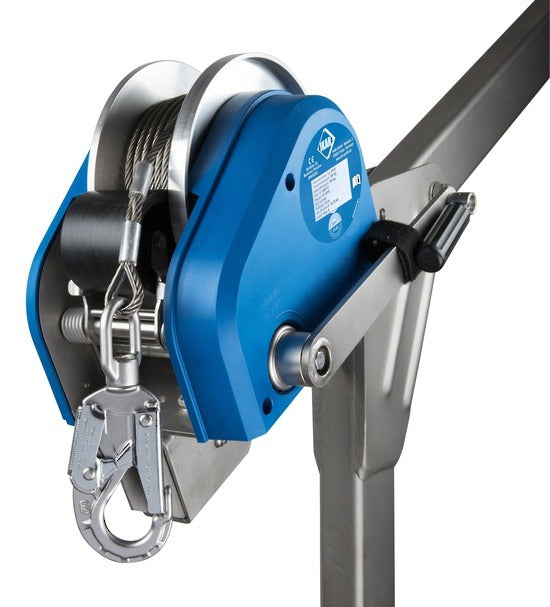

Portable robust work winch with automatic brake. Suitable for lifting men or materials up to 300 kgs.

The PLW is suitable for lifting and lowering up to 2 entrants or materials up to 300 kgs into or out of confined spaces. Can be attached to either Tripods or Davit Arms.

  • Working Load Limit - 300kg
  • Cable Specification - VA Stainless Steel Cable – 6.0mm
  • Attachment Points - Double Action Snap Hook with load indicator
  • Rope Length - 30-metre cable
  • Weight - 17kg
  • Standards: EN1808:2015 as well as being tested to RL 2006/42/EC
  • Requires mounting bracket when being added to an existing Tripod pr Davit.



Features

  • Working Load Limit - 300kg
  • Cable Specification - VA Stainless Steel Cable – 6.0mm
  • Attachment Points - Double Action Snap Hook with load indicator
  • Rope Length - 30-metre cable
  • Weight - 18.5kg
  • Standards: EN1808:2015 as well as being tested to RL 2006/42/EC
  • Requires relevant mounting brackets when being added to an existing tripod or davit

Specifications

  • Rating: Maximum nominal load: 300kg
  • Lifespan: 10 Years
  • Weight: 18.5kg

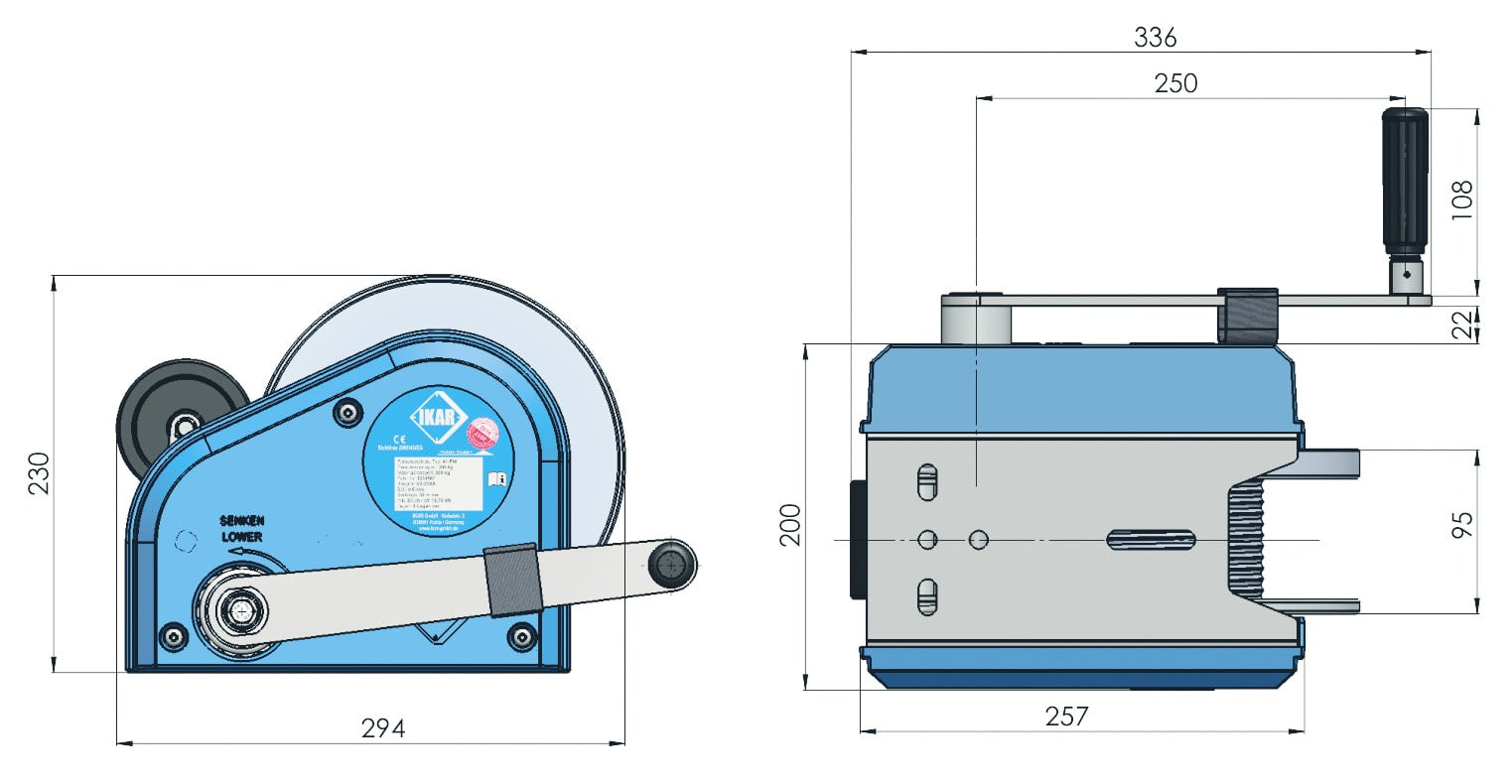

  • Dimensions: 230mmx336mmx200mm
  • Materials: Stainless Steel Cable
  • Safety Standard: EN1808:2015, RL 2006/42/EC

EN1808:2015


Download Technical Notice PDF
Download Product Manual PDF
  • Sku: 41-PLW-DA
  • Vendor: IKAR
