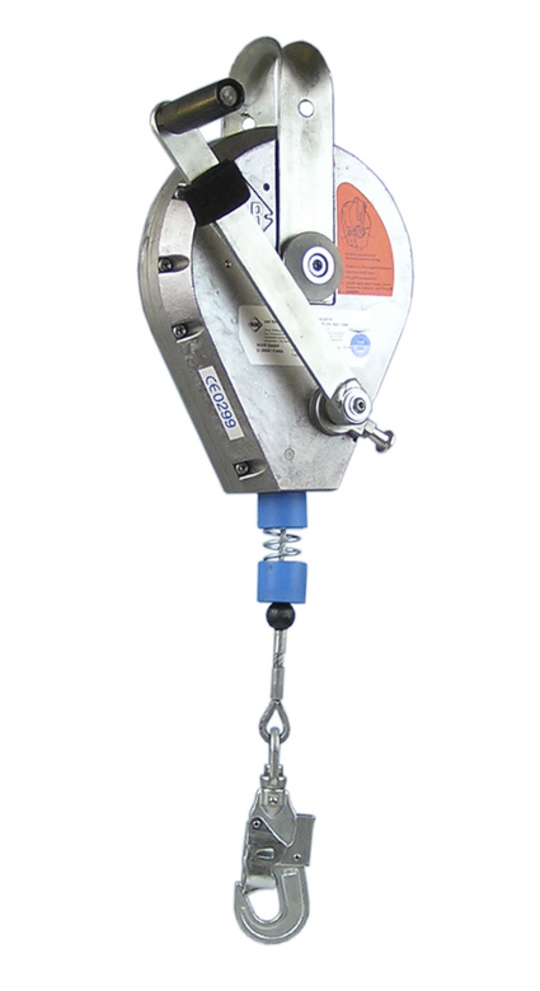

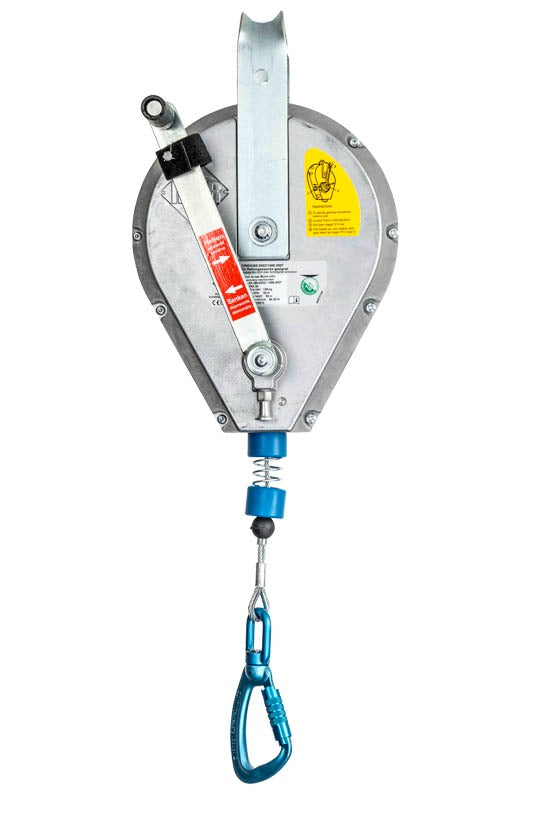

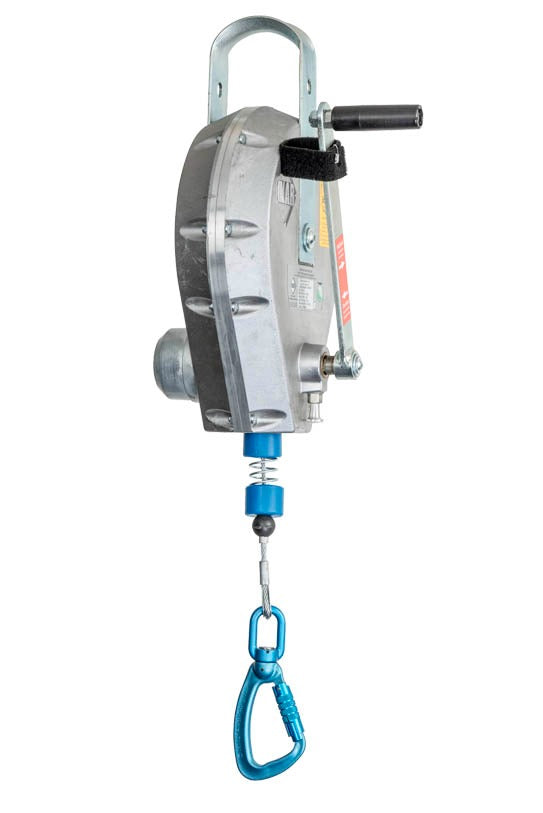

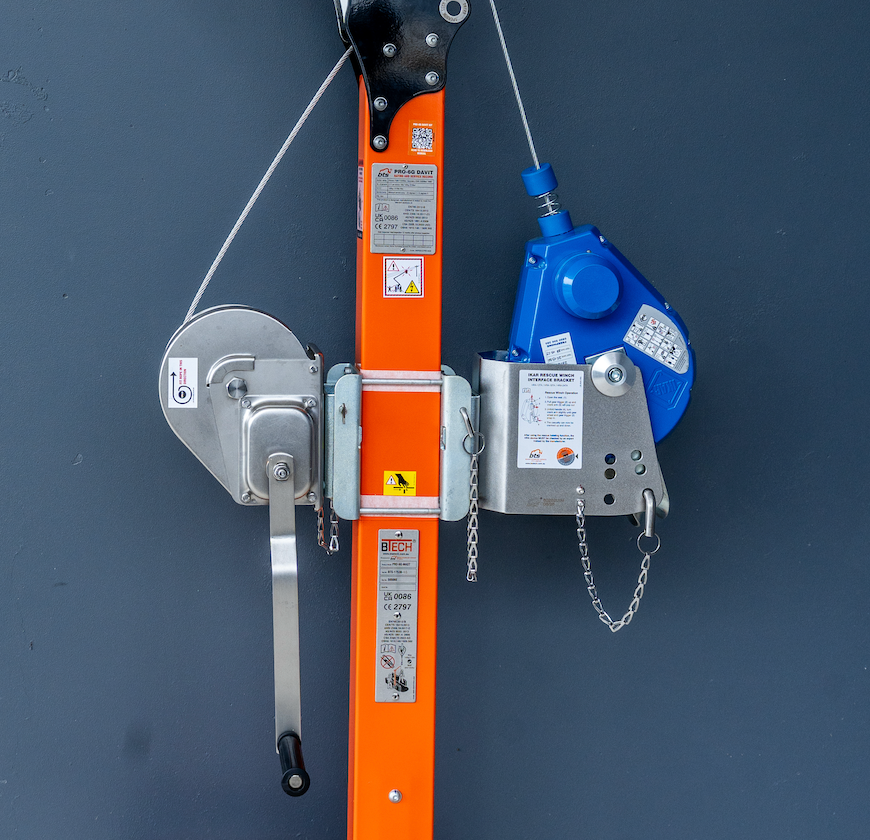

IKAR HRA Fall Arrest Blocks with Recovery Winch

$1,710.00
 per
Shipping calculated at checkout.

IKAR height-safety devices with rescue hoisting facilities are equipped with a winching unit, type 3 SRL certified to EN 360 standards. In case of a rescue after a fall, the person who has suffered the accident can be rescued quickly and safely.

  • Fall Arrest Block with an integral recovery mechanism
  • Fitted with steel rope lifeline within a rugged aluminium housing
  • The attachment anchorage point on the fall arrest block is an open steel handle, suitable for connection via a Standard Karabiner type connector, or a Standard Karabiner type connector with an Anchorage Sling, or a Large Karabiner.

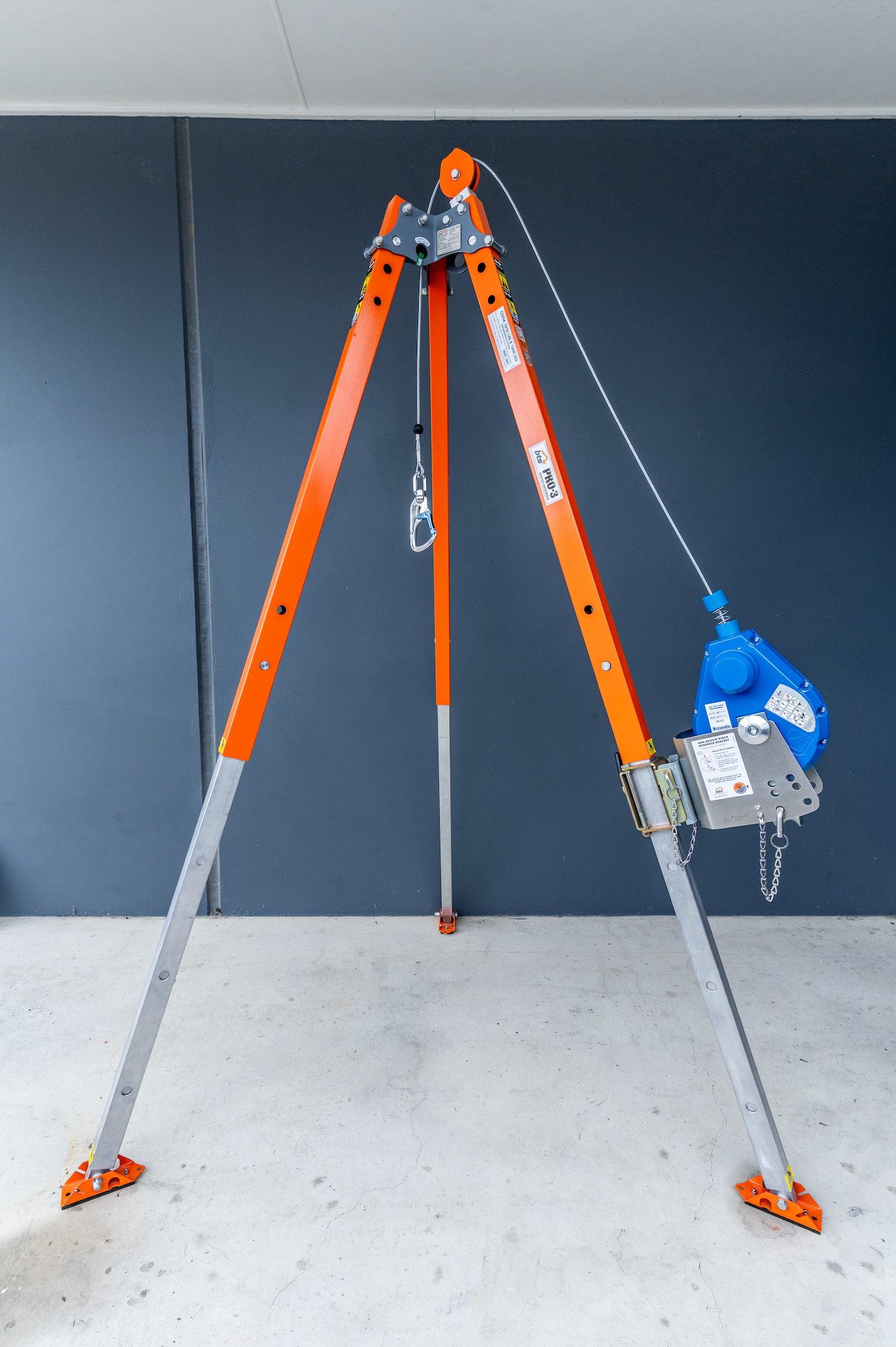

  • In addition to connecting the fall arrest block with recovery mechanism, it can also be fitted to tripods. To protect the user when ascending and descending a vertical shafts such as sewer systems.

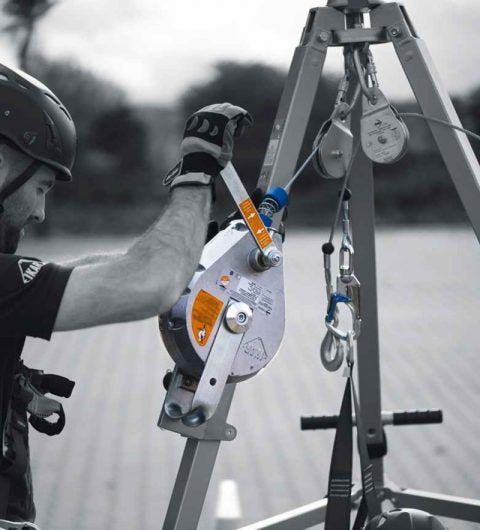

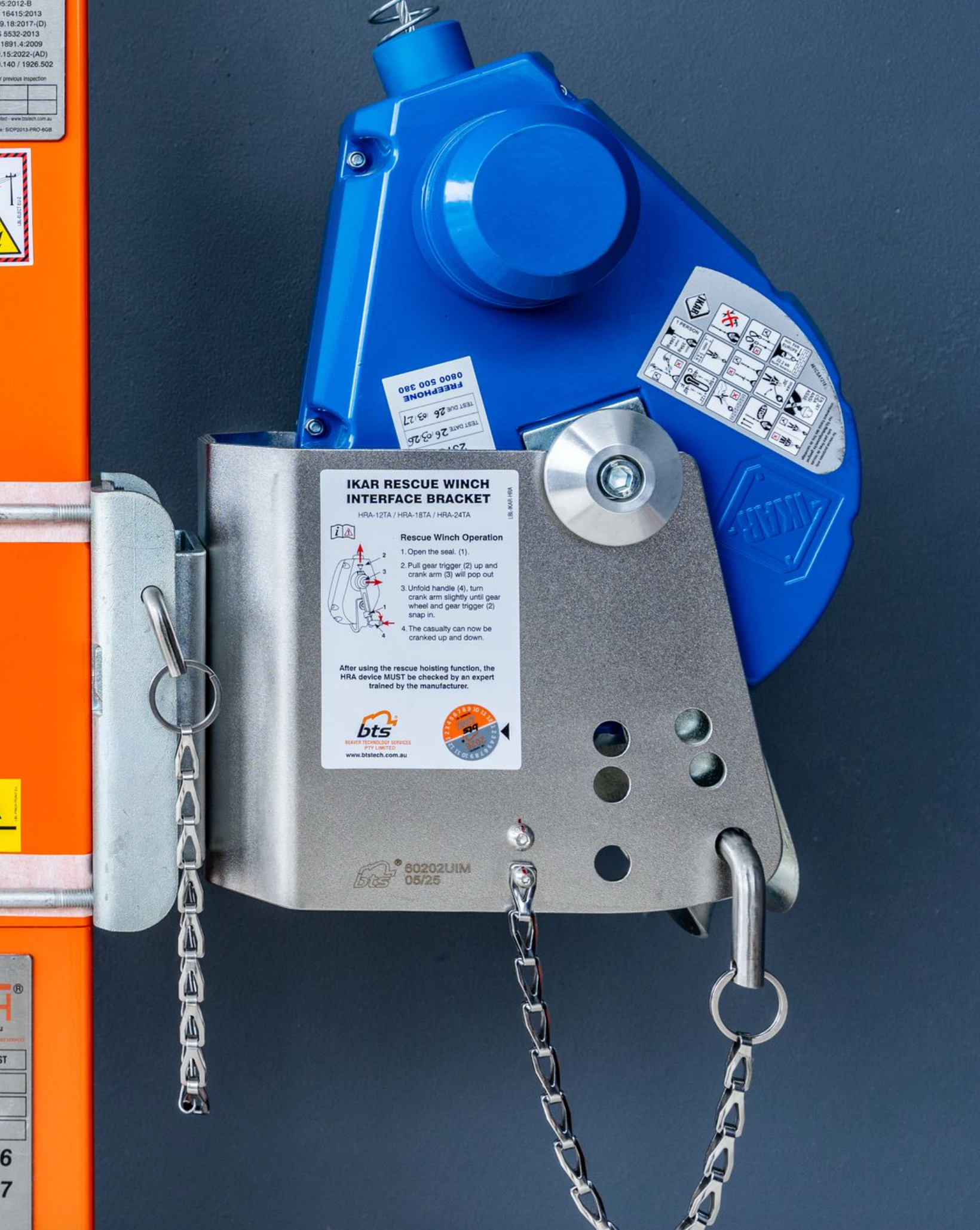

  • The inbuilt recovery mechanism, can be engaged by pulling a pin on the side of the block and engaging a winding handle.  This then allows the device to be used to lift or lower a casualty post fall, or if they have become incapacitated in a confined space.
  • Certified to EN 360 standards
  • Available in 12m, 18m, 24m and 30m.

Features

  • Integral Recovery Mechanism
  • Steel Rope Lifeline
  • Rugged Aluminium Housing
  • Equipped with a Winching Unit, certified to EN 360 standards
  • Available in 12m, 18m, 24m and 30m Cable Length
  • German Made

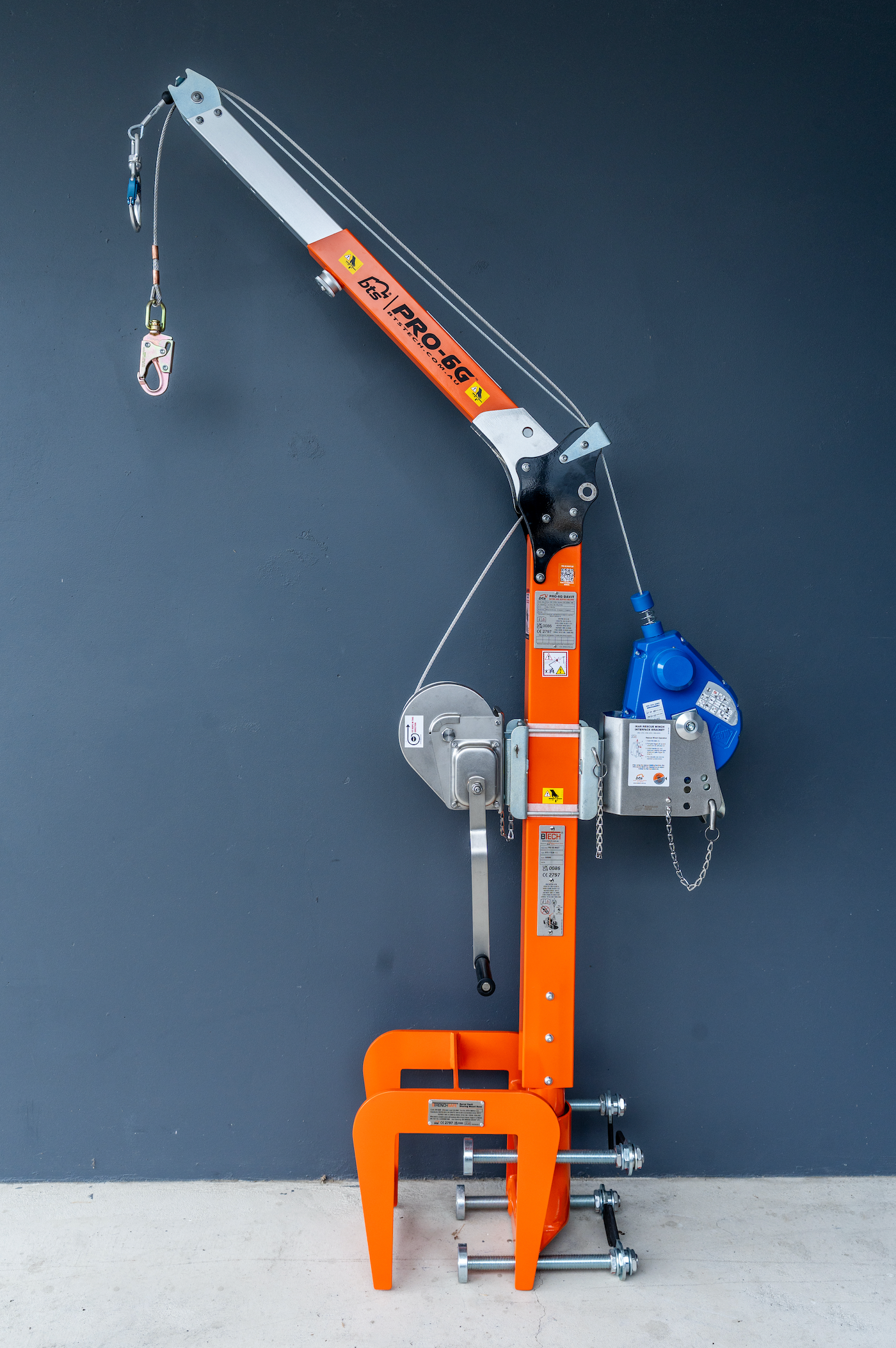

  • Brackets suited for Davits and Tripods available

Specifications

  • Rating: Rated Working Load Capacity of 136 kg
  • Lifespan: 10 Years
  • Weight: 7kg - 21 kg
  • Dimensions: 12m (450x195x180), 18m (570x240x200), 24m (630x275x220), 30m (640x315x230)
  • Materials: Galvanised Steel Cable, Lightweight Aluminium Housing
  • Safety Standard:

AS/NZS 1891.3:2020 Fall-arrest devices

EN 360


Download Technical Notice PDF
Download Product Manual PDF
  • Sku: 41-HRA-12
  • Vendor: IKAR
