Ladder Support Bracket - Gutter Roof Mount

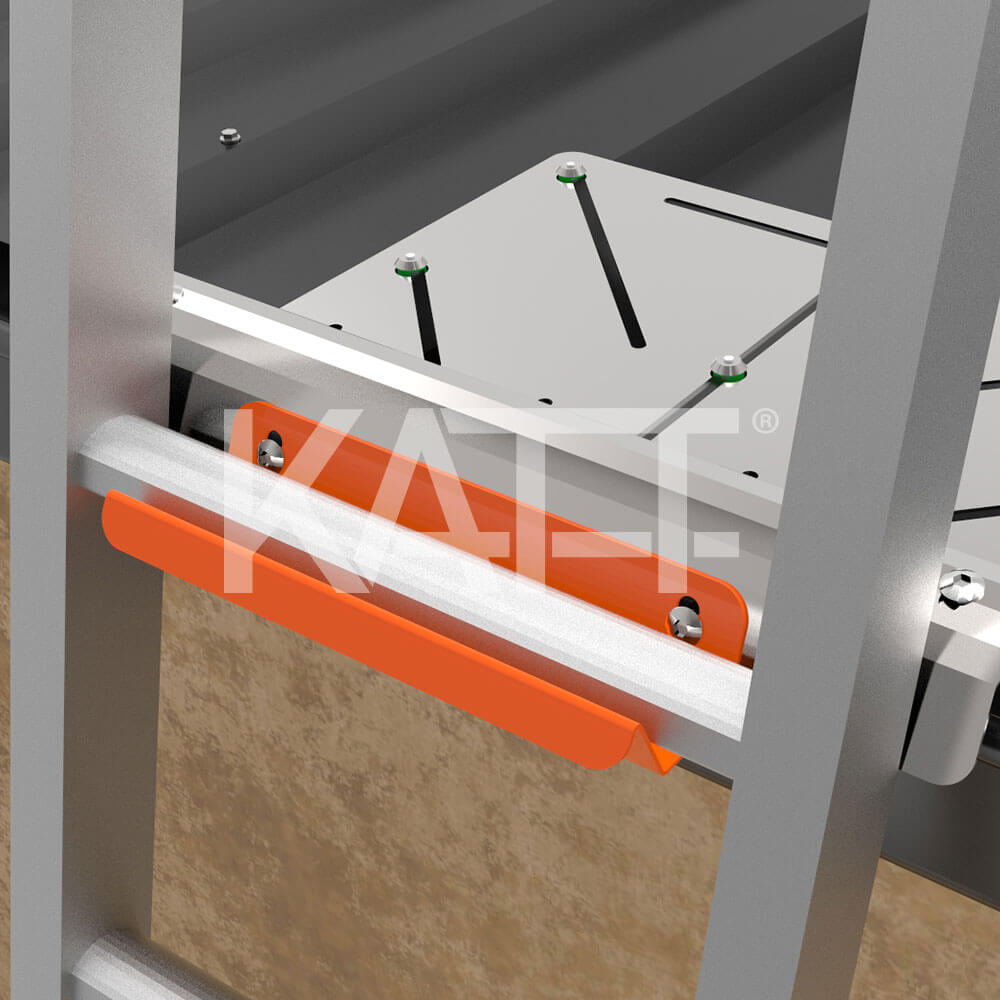

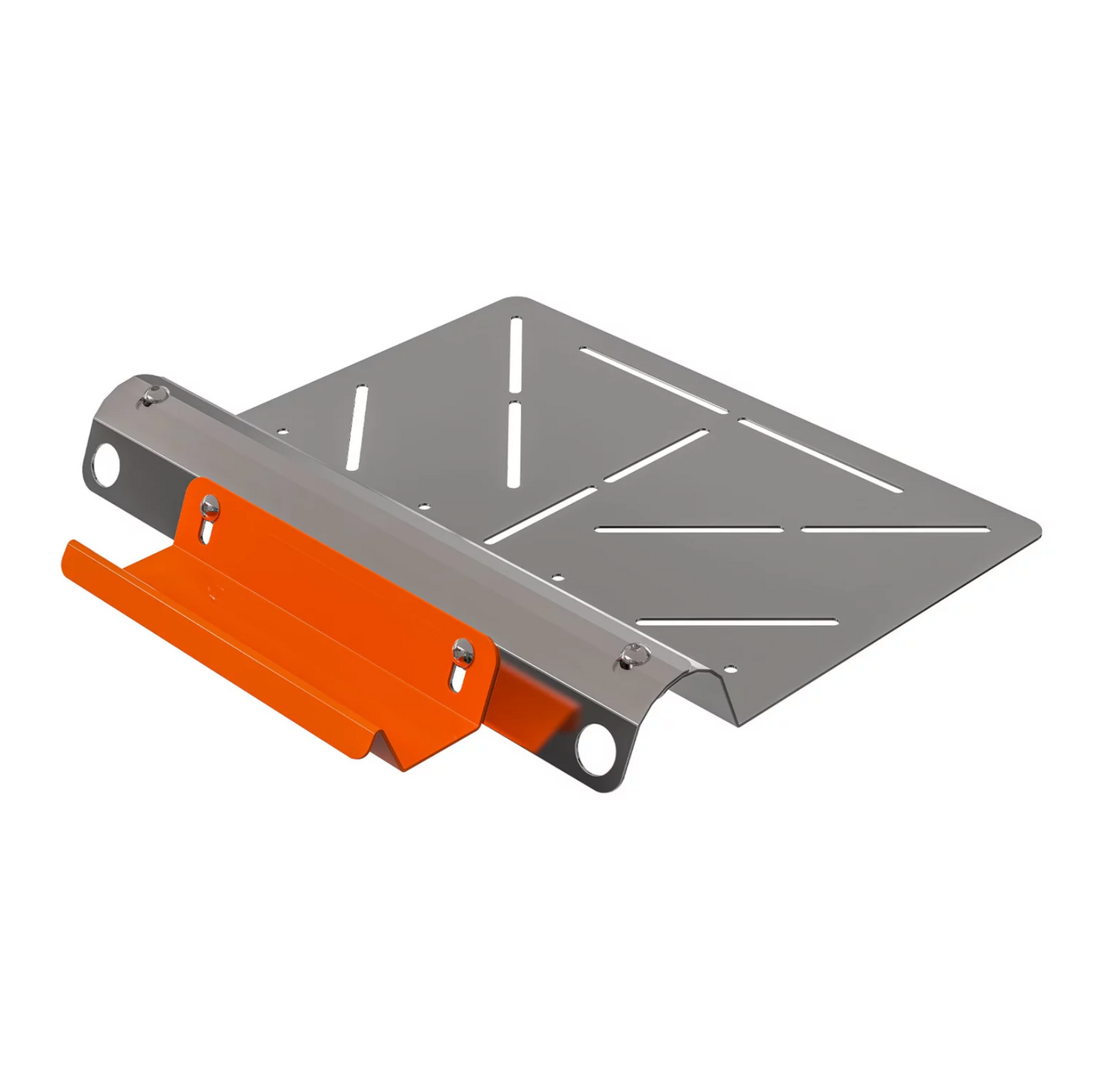

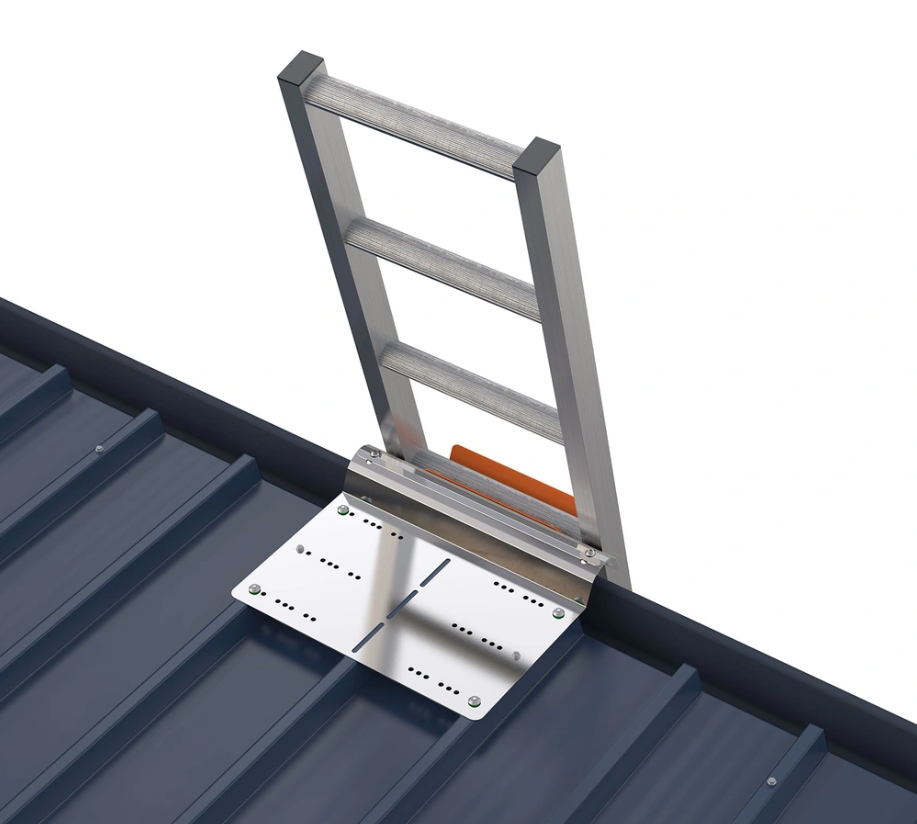

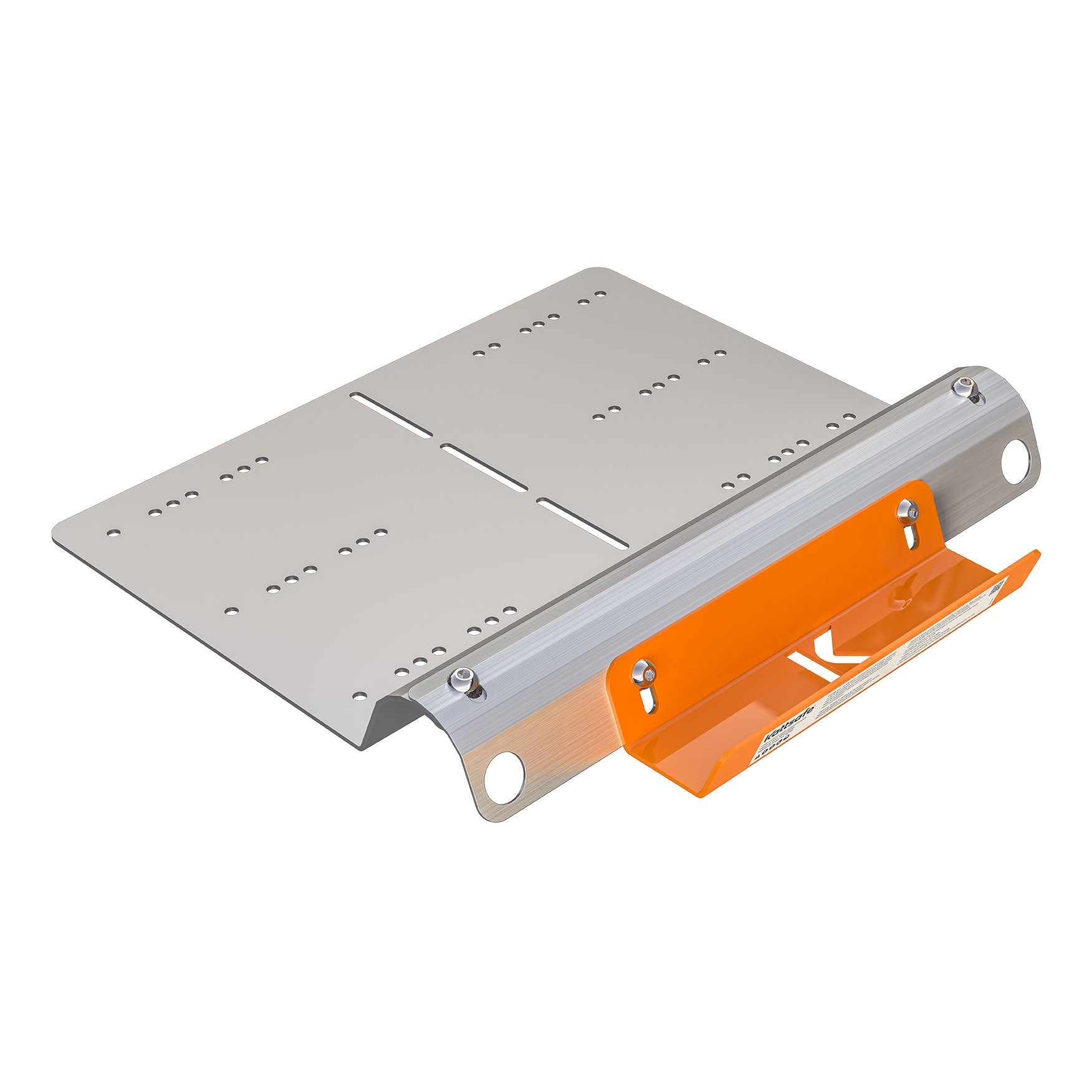

The RL402 is a roof-mounted ladder support bracket that provides a secure attachment point for portable ladders, preventing movement in any direction.

• 150kg rated

• Adjustable to pitch and angle

• Aluminium construction

• Weight: 2kg

Fixings:

Refer to the installation manual

• Concrete structure: QTY 4 - 8mm x 75mm screw bolt or wedge anchor (3 minimum).

• Timber structure: QTY 4 - 14g type 17 timber screw

• Steel structure: QTY 2 - 8mm bolt set or QTY 4 - 14g tek screws

• QTY 6 - 8mm bulb-type Rivets OR

• QTY 4 - 8mm bulb-type Rivets and QTY 2 - 12g or 14g tek screw into purlin.
