Ladder Support Bracket - Wall Mount

Name: Ladder Support Bracket - Wall Mount
Brand: KATTSAFE
SKU: RL401
Price: 199.0 NZD
Availability: InStock

$199.00

Shipping calculated at checkout.

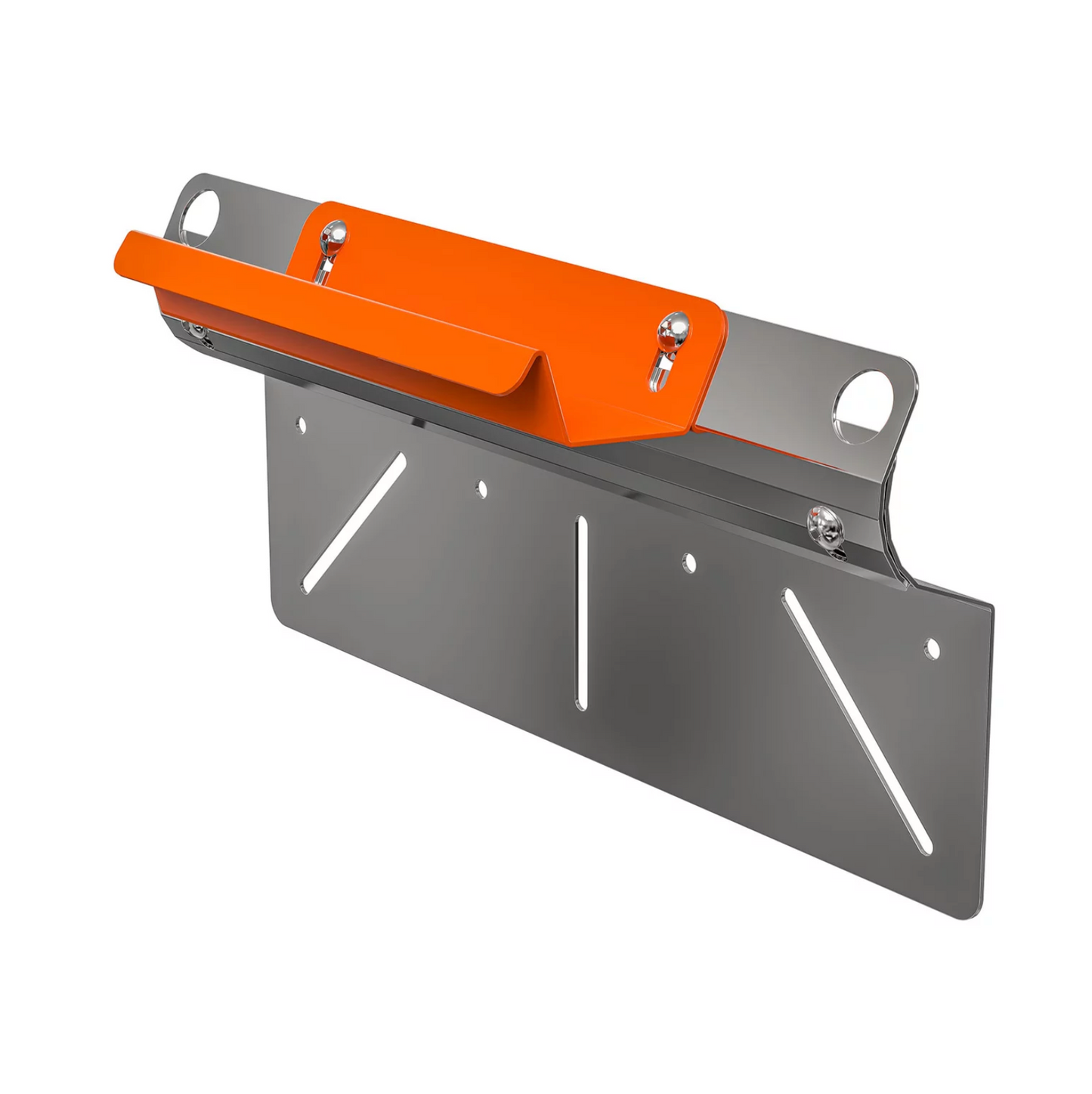

The RL401 is a wall mounted ladder support bracket which provides a secure attachment point for portable ladders, preventing movement in any direction.

Adjustable to pitch and angle
Aluminium construction
Weight: 1.5kg

Product variants

Features

Ladder angle adjustment: Allows attachment to angled surfaces with rung support kept level.

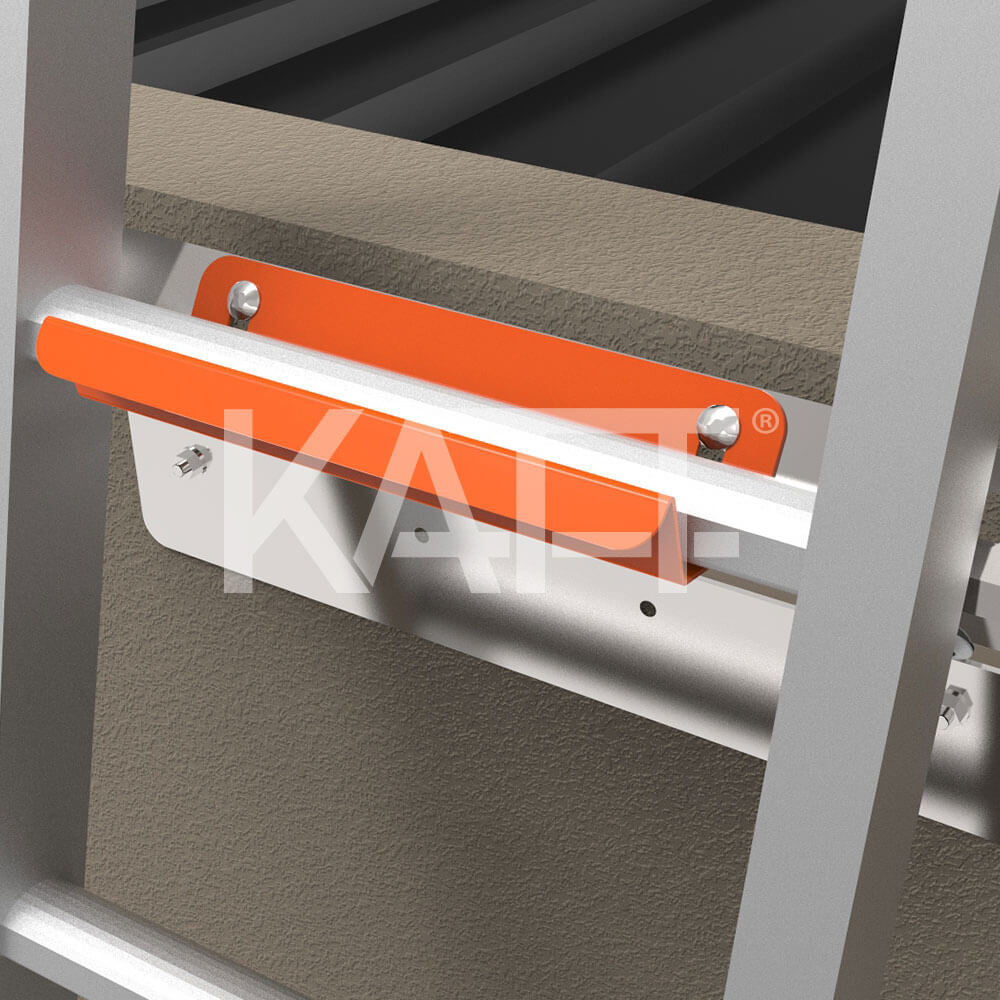

Ladder rung support: Easy visibility and ladder attachment.
Tie off points: Provides additional facility to secure ladder.
Ladder angle adjustment: Allows attachment to angled surfaces with rung support kept level.
Mounting holes: Ensures easy location for attachment to structure.
Aluminium: Profiled aluminium for an easy to transport, lightweight, corrosive-free finish.

Specifications

Rating: 120kg
Lifespan: Visual inspection for any damage or loose fixings must be done periodically and prior to use. No certified maintenance required. Basic wear/ tear preventative maintenance is recommended, as per manufacturer’s specifications and recommendations (refer installation manual).
Weight: 1.5kg
Dimensions: 480mm (W) x 160mm (D) x 240mm (H)
Materials: Profiled aluminium, powder coated
Safety Standard: Installation, certification, maintenance and usage of ladder to be in accordance with relevant OH&S Codes of Practice Guidelines

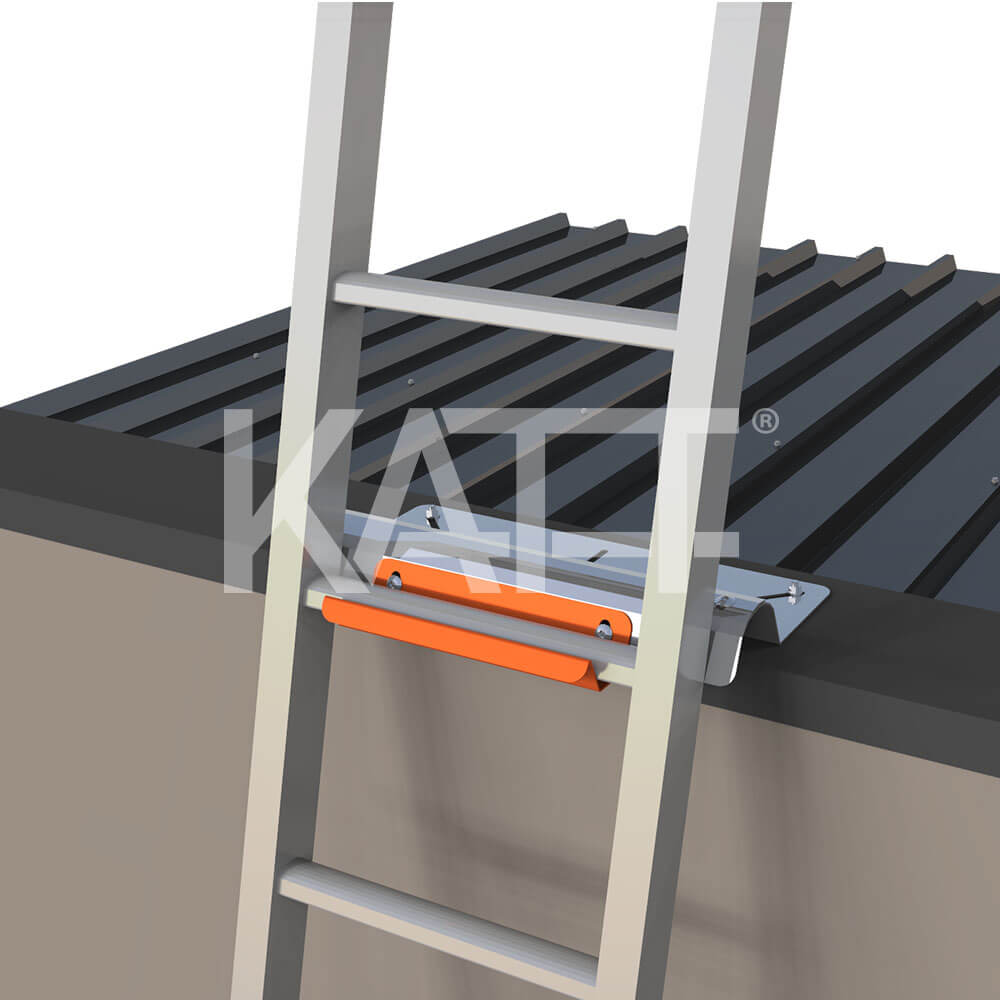

Ladder support brackets are designed to provide a secure attachment point for portable ladders when accessing a roof.

Download Technical Notice PDF
Download Product Manual PDF
