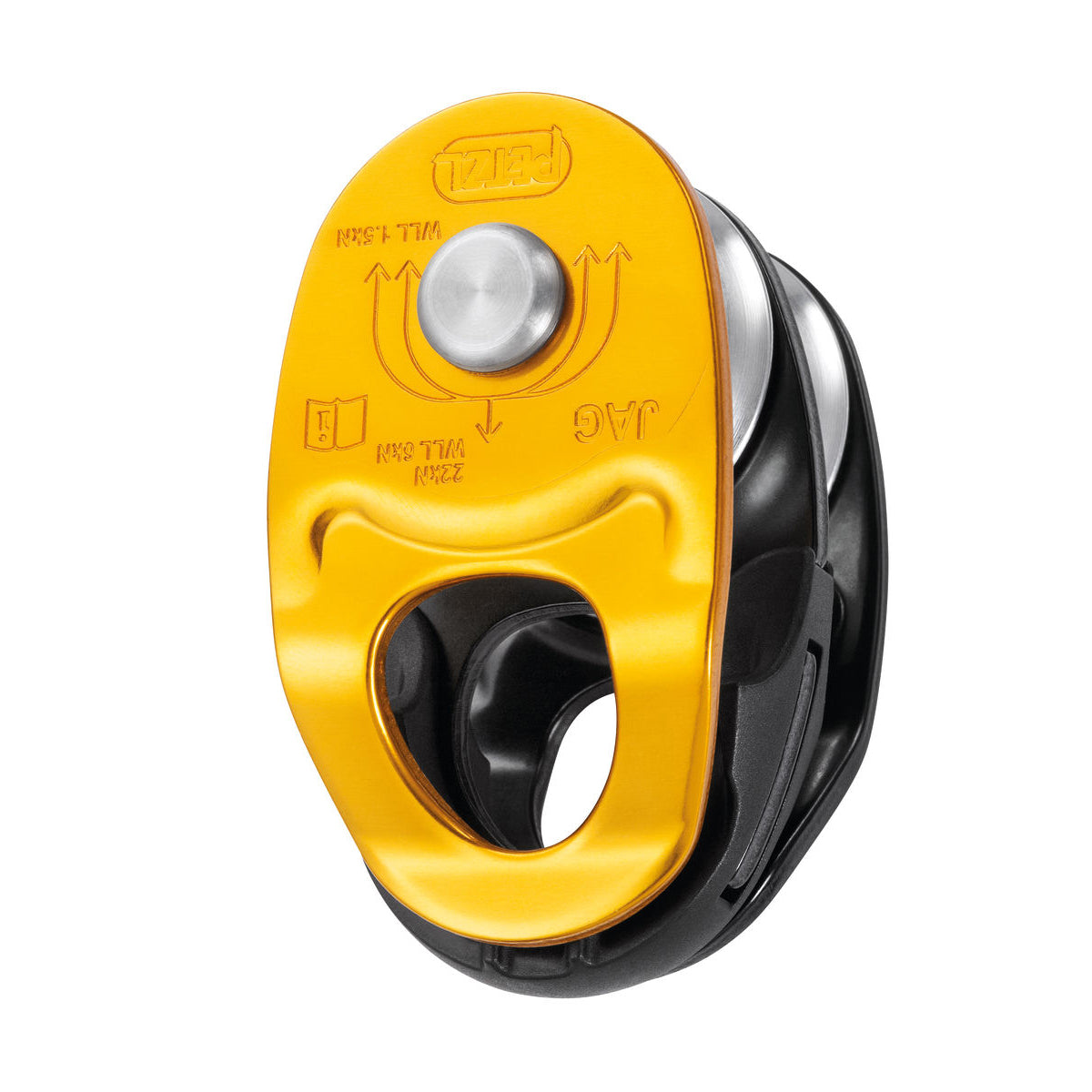

PETZL - JAG PULLEY

$149.90
 per
Shipping calculated at checkout.

The JAG pulley. A compact, high efficiency double pulley with stainless steel sheaves mounted on sealed ball bearings. Great when used with the JAG TRAXION for high efficiency 4:1 mechanical advantage.





Just $200.00 more for FREE STANDARD SHIPPING

Features

• Rope compatibility: 8 to 11 mm
• Sheave diameter: 25 mm
• Max WLL: 2.5 kN x 2 = 5 kN
• Breaking strength: 2 x 4 kN x 2 = 16 kN
• Efficiency: 91 %
• Certification(s): CE EN 12278, NFPA 1983 Technical Use

Specifications

  • Rating: Maximum working load: 2,5 kN x 2 = 5 kN
  • Lifespan: 10 years from date of first use
  • Weight: 120g
  • Dimensions: Min. rope diameter: 8 mm - Max. rope diameter: 11 mm
  • Materials: Aluminum, stainless steel
  • Safety Standard: CE EN 12278

CE EN 12278, NFPA 1983 Technical Use


Download Technical Notice PDF
  • Sku: P45
  • Vendor: Petzl
View full details
