PETZL - JAG TRAXION

$229.90
Shipping calculated at checkout.

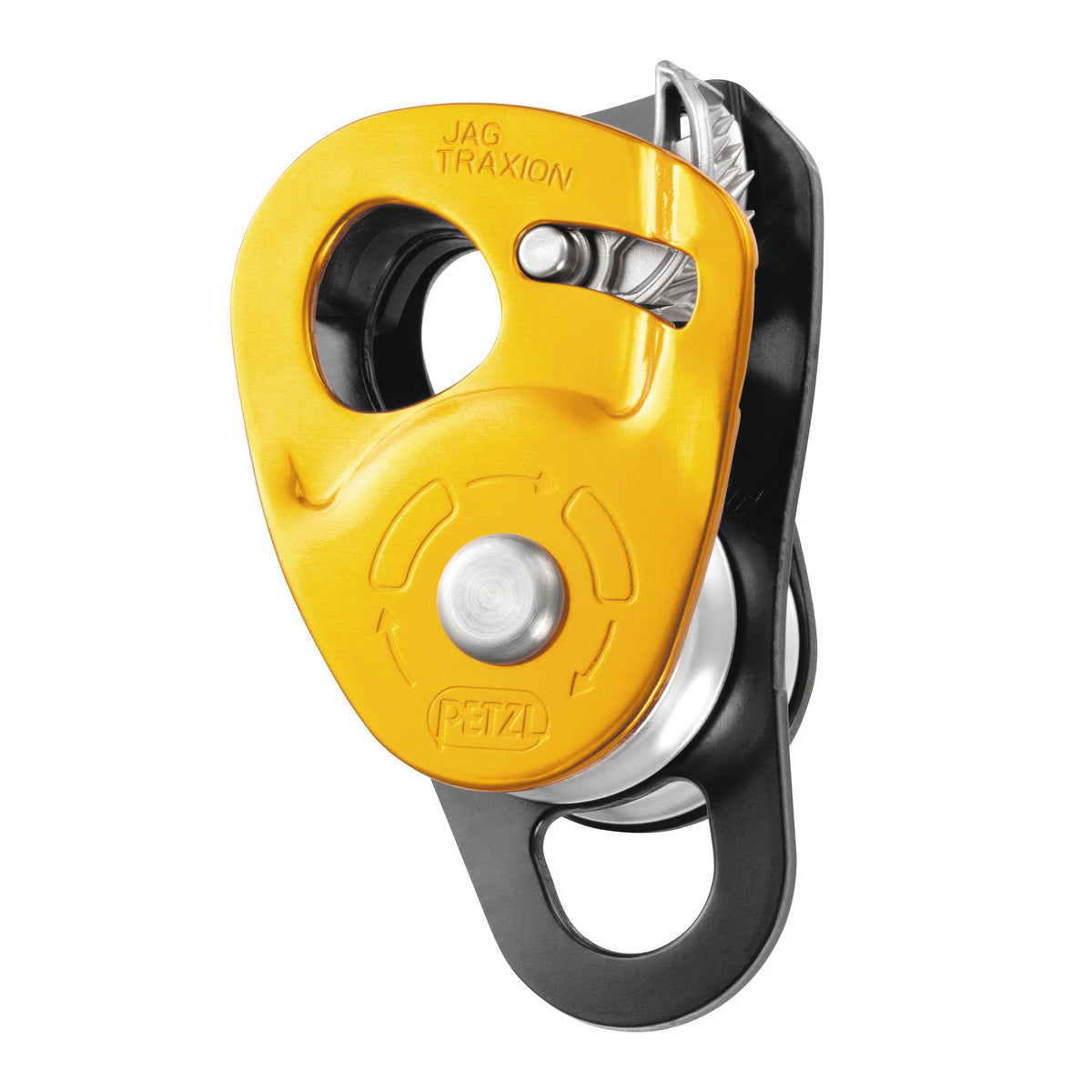

The JAG TRAXION pulley. A compact, high efficiency, double sheaved, progress capture pulley. With stainless steel sheaves on sealed ball bearings and bottom beckett. The toothed cam has a slot for self-cleaning.

 Great when used with the JAG pulley for high efficiency 4:1 mechanical advantage.





In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

  • Weight: 145 g
  • Certification(s): CE EN 567, UKCA, NFPA 2500 Technical Use
  • Material(s): aluminum, nylon
  • Min. rope diameter: 8 mm
  • Max. rope diameter: 11 mm
  • Sheave type: sealed ball bearings
  • Sheave diameter: 25 mm
  • Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Breaking strength: 2 × 4 kN × 2 = 16 kN
  • Efficiency: 91 %

Specifications

  • Rating: Maximum working load: 2 × 1,5 kN × 2 = 6 kN
  • Lifespan: 10 years from date of first use
  • Weight: 145g
  • Dimensions: Min. rope diameter: 8 mm - Max. rope diameter: 11 mm
  • Materials: Aluminum, stainless steel
  • Safety Standard: CE EN 567

CE EN 567, UKCA, NFPA 2500 Technical Use


Download Technical Notice PDF
  • Sku: P54
  • Vendor: Petzl
View full details
