Features
- Designed for experienced users working in rope access and technical rescue
- Easy to use:
- Markings and rope guide make it quick and easy to install the rope
- Ergonomic handle provides good grip and excellent descent control
- Moving side plate can be opened while the device remains connected to the harness, making it easier to pass intermediate anchors

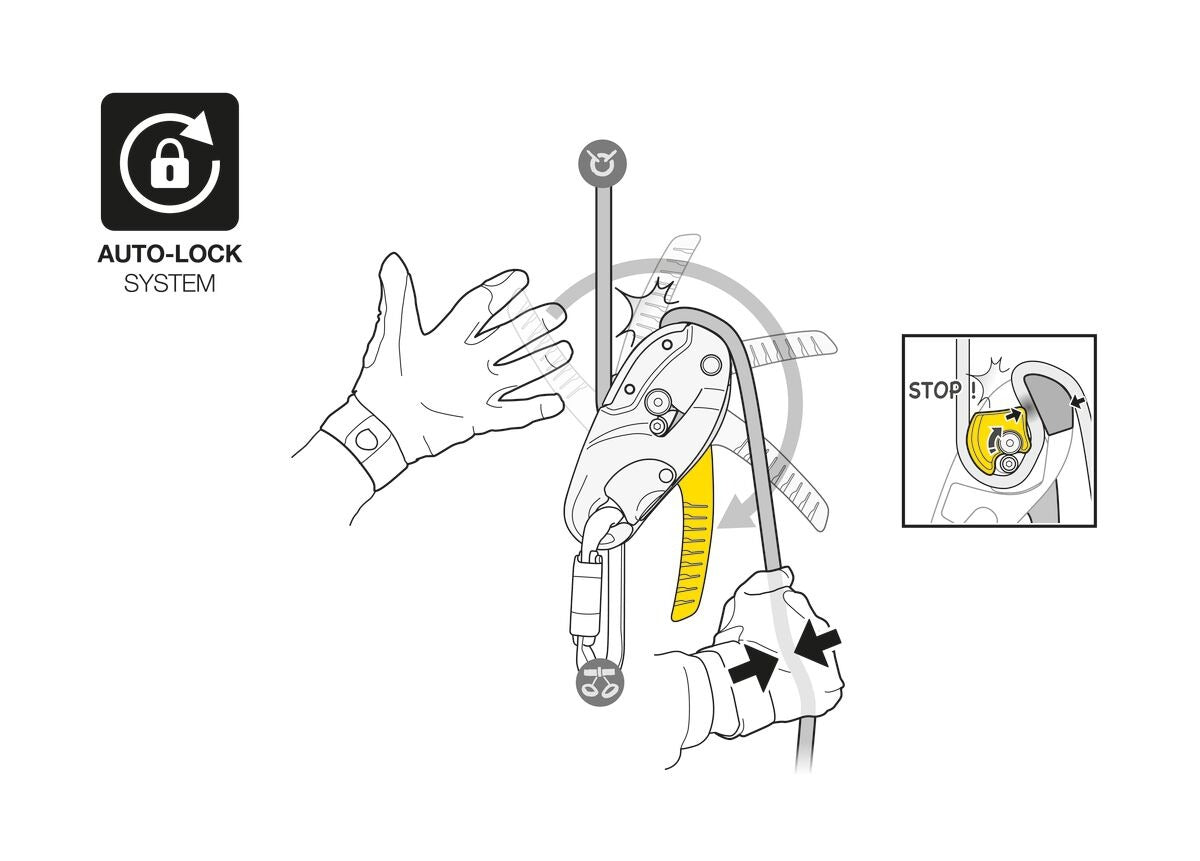

- The AUTO-LOCK system allows users to easily position themselves at a workstation without having to manipulate the handle or tie off the device
- Handle automatically switches to storage position when the rope is removed from the device, reducing the risk of accidental snagging when the descender is carried on the harness
- Versatile:

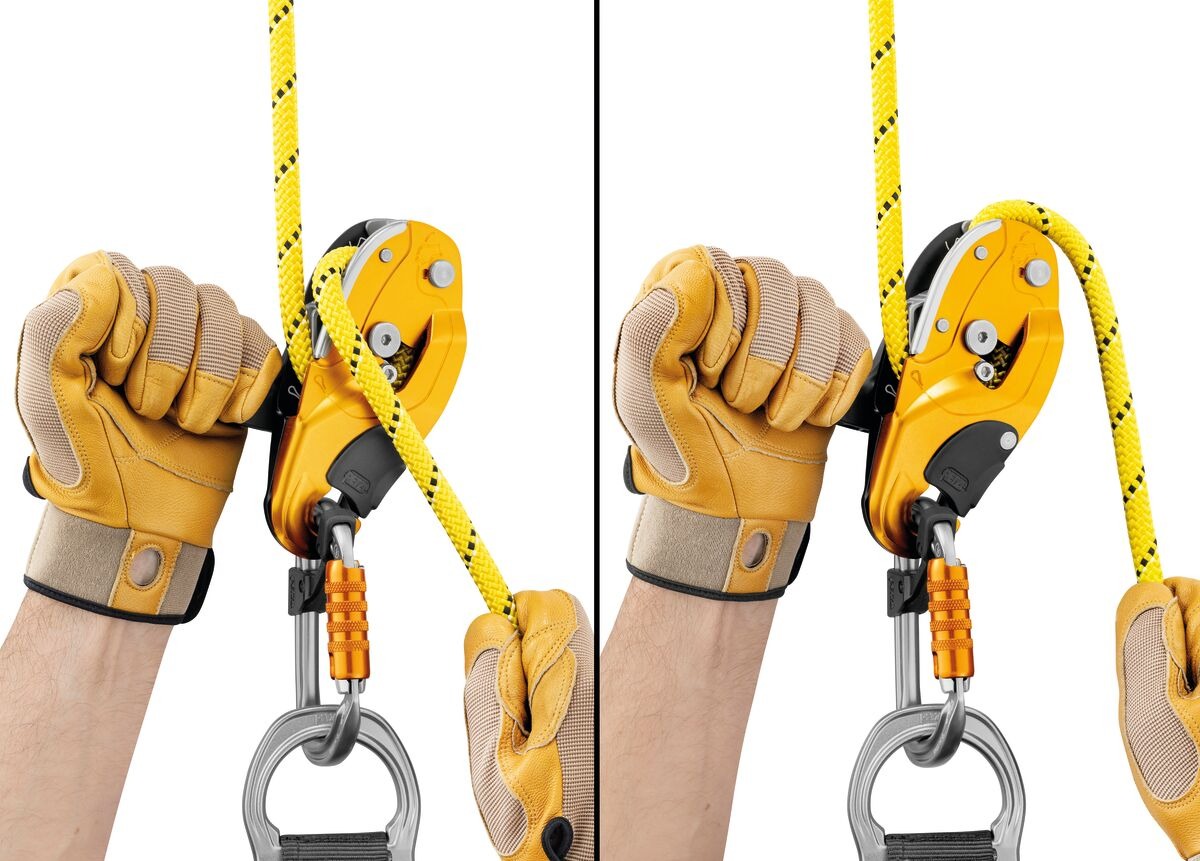

- Two possible descent modes: with the rope running over the side plate or in the V-shaped friction channel, which provides better descent control and helps keep the rope from kinking
- Can be used connected to the harness or to an anchor
- Once the rope is blocked, it is possible to ascend in short spurts without manipulating the handle by simply pulling the rope through the device
- Can be used to belay a lead with techniques used in climbing
- Durable and repairable:
- Reinforced protection on the rope friction zone helps prevent premature wear on the moving side plate
- Cam shape improves rope pinching and limits wear on the device

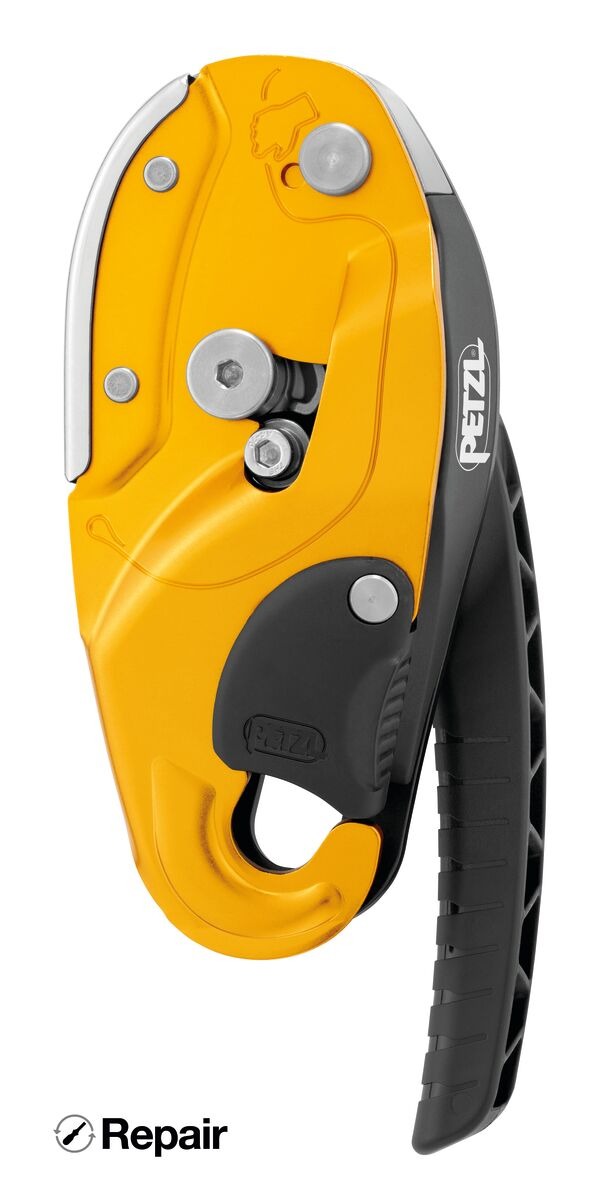

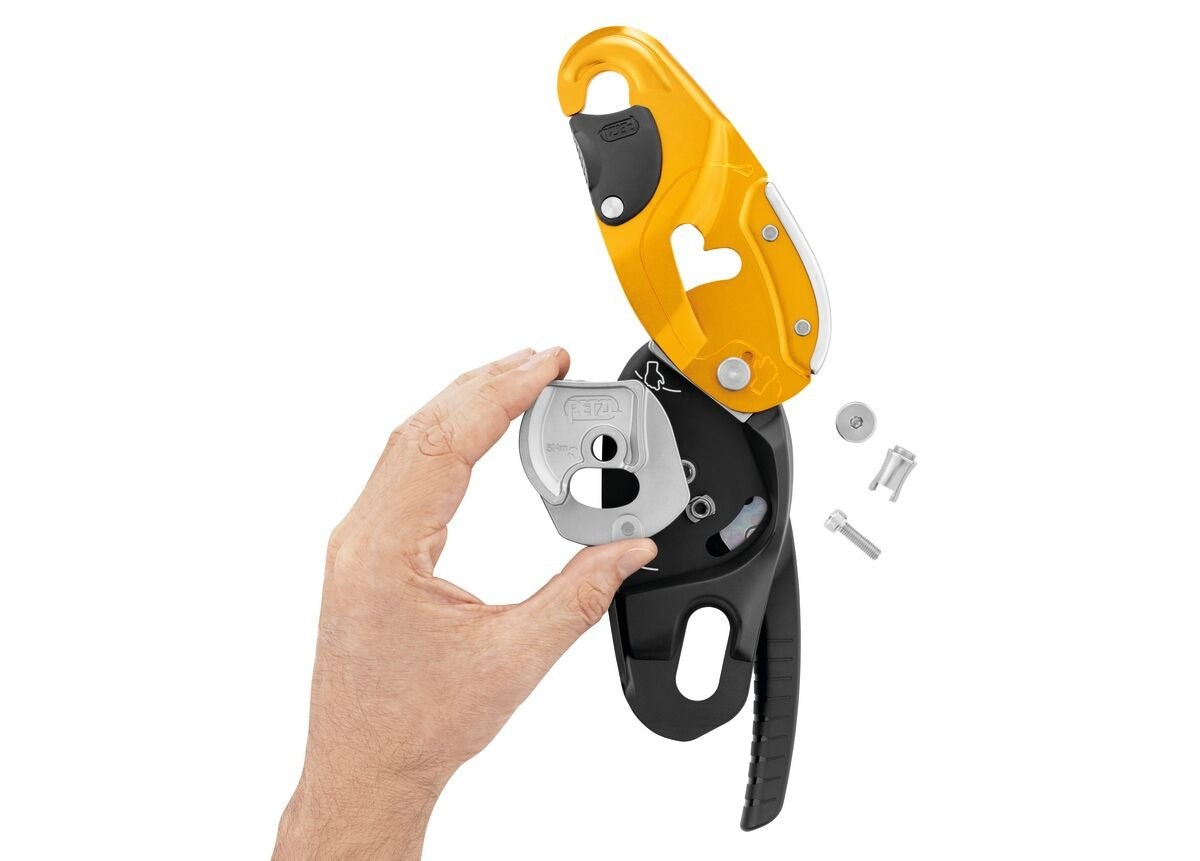

- For a longer-lasting solution or to account for intensive use and demanding work conditions, the RIG is also available in a repairable version (D021BA00 / D021BA01); replace the cam and pin using the repair kit (sold separately, D021CA00)
Specifications
- Rating: Working Load Limit for one person: 140 kg Two people: 200 kg
- Lifespan: N/A
- Weight: 406 g
- Dimensions: Rope compatibility: 9.5 to 11.5 mm in diameter
- Materials: Aluminum, stainless steel, nylon
- Safety Standard: EN 341 type 2 class A
EN 341 type 2 class A, CE EN 12841 type C, CE EN 15151-1, ANSI Z459.1, ANSI Z359.9, NFPA 1983 Technical Use, EAC, GB/T 38230 II A, XF 494:FZL-X-Q10/11.5 - EN 341 type 2 class A when used with PARALLEL 10.5 mm or AXIS 11 mm rope - EN 12841 type C when used with a 10 to 11.5 mm EN 1891 A rope - EN 15151-1 when used with a 9 to 11 mm rope - NFPA 1983 Technical Use when used with a 10 to 11.5 mm rope
