PETZL - TWIN RELEASE

Name: PETZL - TWIN RELEASE
Brand: Petzl
SKU: P001DA00
Price: 707.5 NZD
Availability: InStock

$707.50

Shipping calculated at checkout.

Releasable double progress capture pulley for haul systems

Releasable, the TWIN RELEASE progress capture pulley is designed to set up 4:1 haul systems for work in confined spaces or for technical rescue.

Releasing the cam is possible with the ergonomic handle. The brake integrated into the moving side plate and the main faceted sheave with single-direction rotation, offer additional braking and better control when lowering heavy loads.

The two sheaves provide excellent hauling efficiency. The swivel facilitates operations, allowing the pulley to be oriented under load and direct connection of carabiners, ropes, or slings.

Product variants

In stock! Orders placed before 2pm ship same day.

Just $200.00 more for FREE STANDARD SHIPPING

Quantity

I agree with the Terms and Conditions.

Features

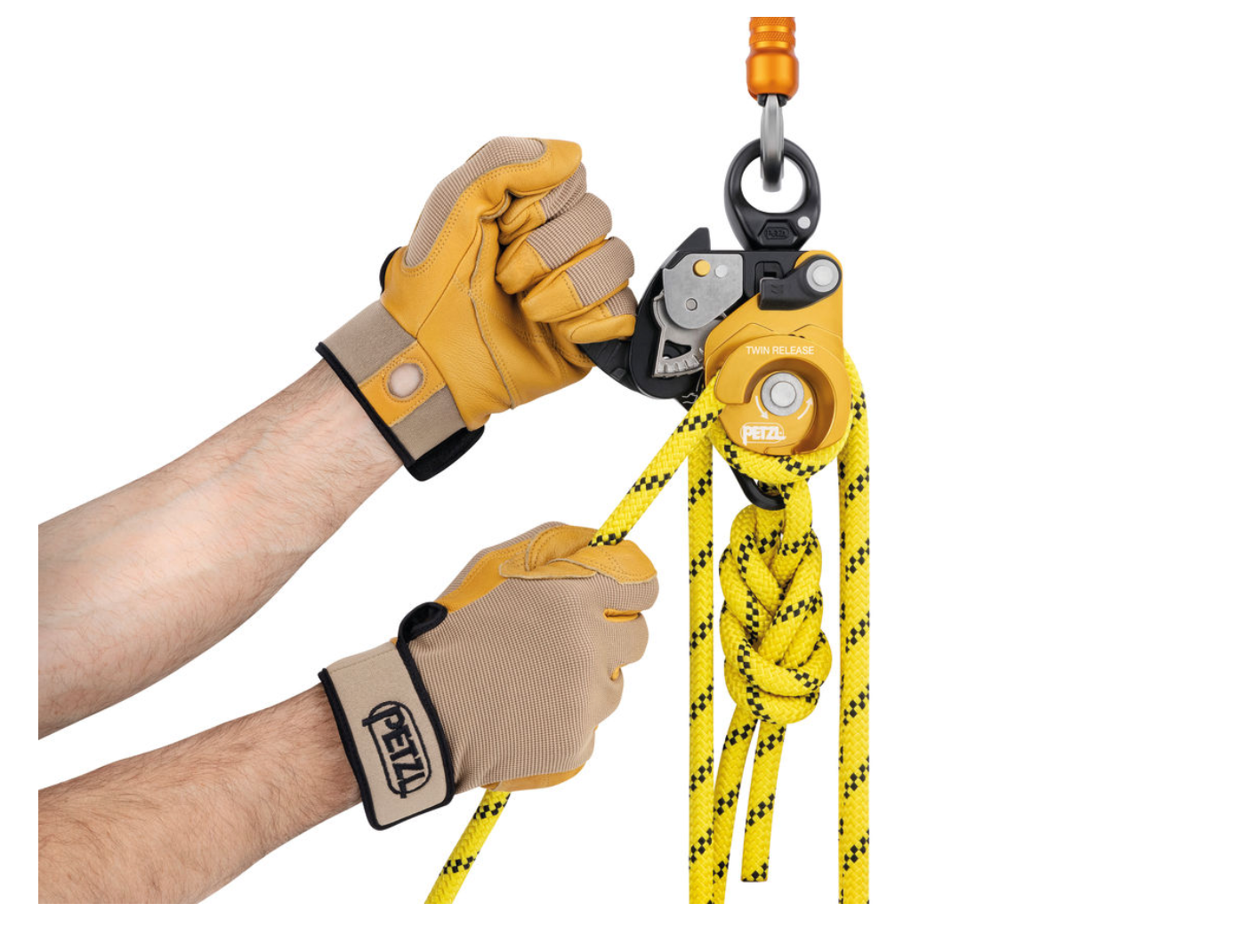

Double progress capture pulley with handle to release cam
Ergonomic handle for easy release of the cam
Brake integrated into main moving side plate allowing comfortable and precise control when lowering heavy loads
Cam can be locked in the open position to easily feed slack
Toothless cam helps preserve the rope and allows for easy transition from lowering to hauling and vice-versa

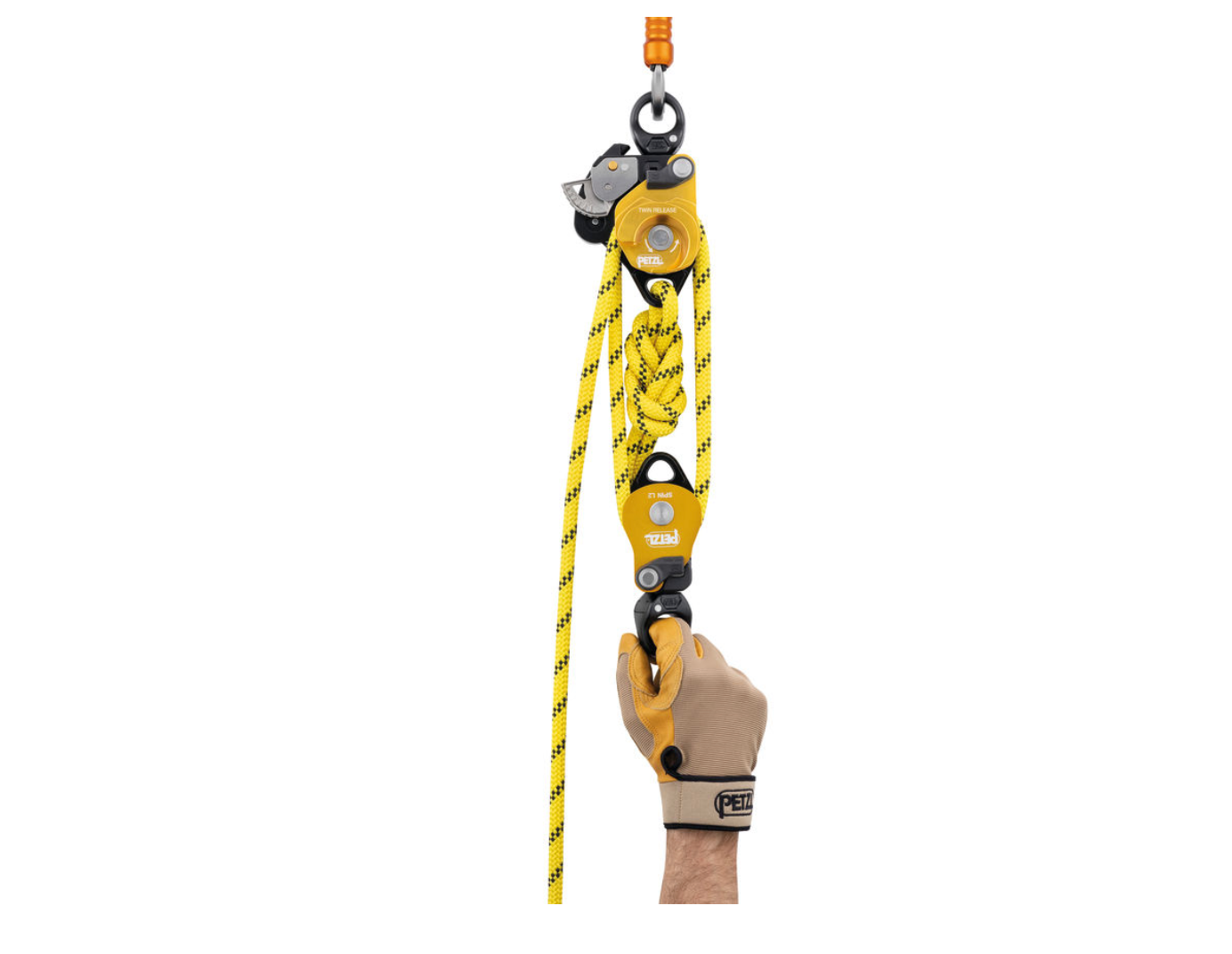

Efficiency is optimized for 4:1 haul systems

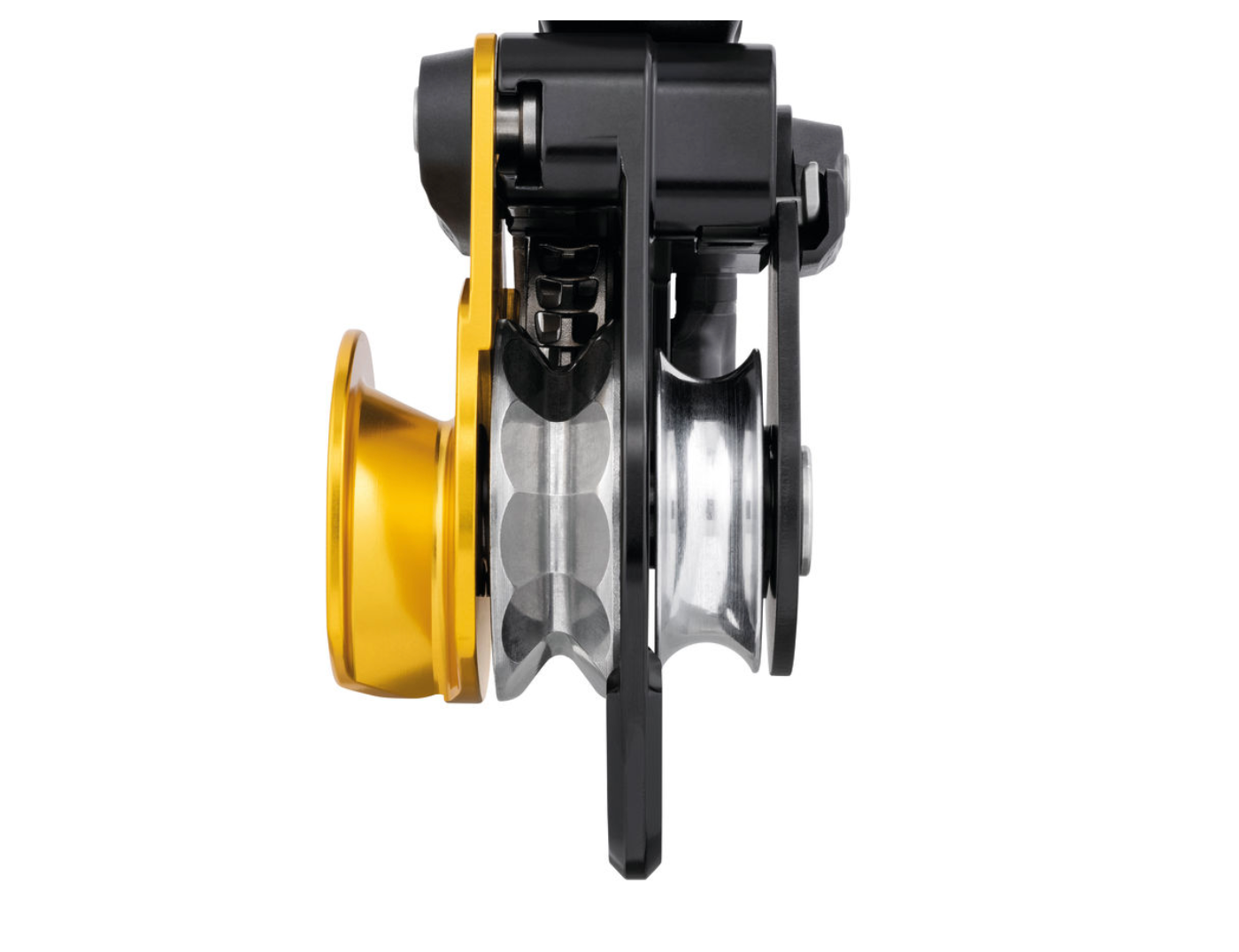

Large-diameter sheave mounted on sealed ball bearings for excellent hauling efficiency
Main faceted sheave with single-direction rotation provides excellent efficiency when hauling and adds friction zones with the rope for additional braking when lowering heavy loads
Parallel-mounted sheaves and auxiliary attachment point for setting up various types of complex haul systems

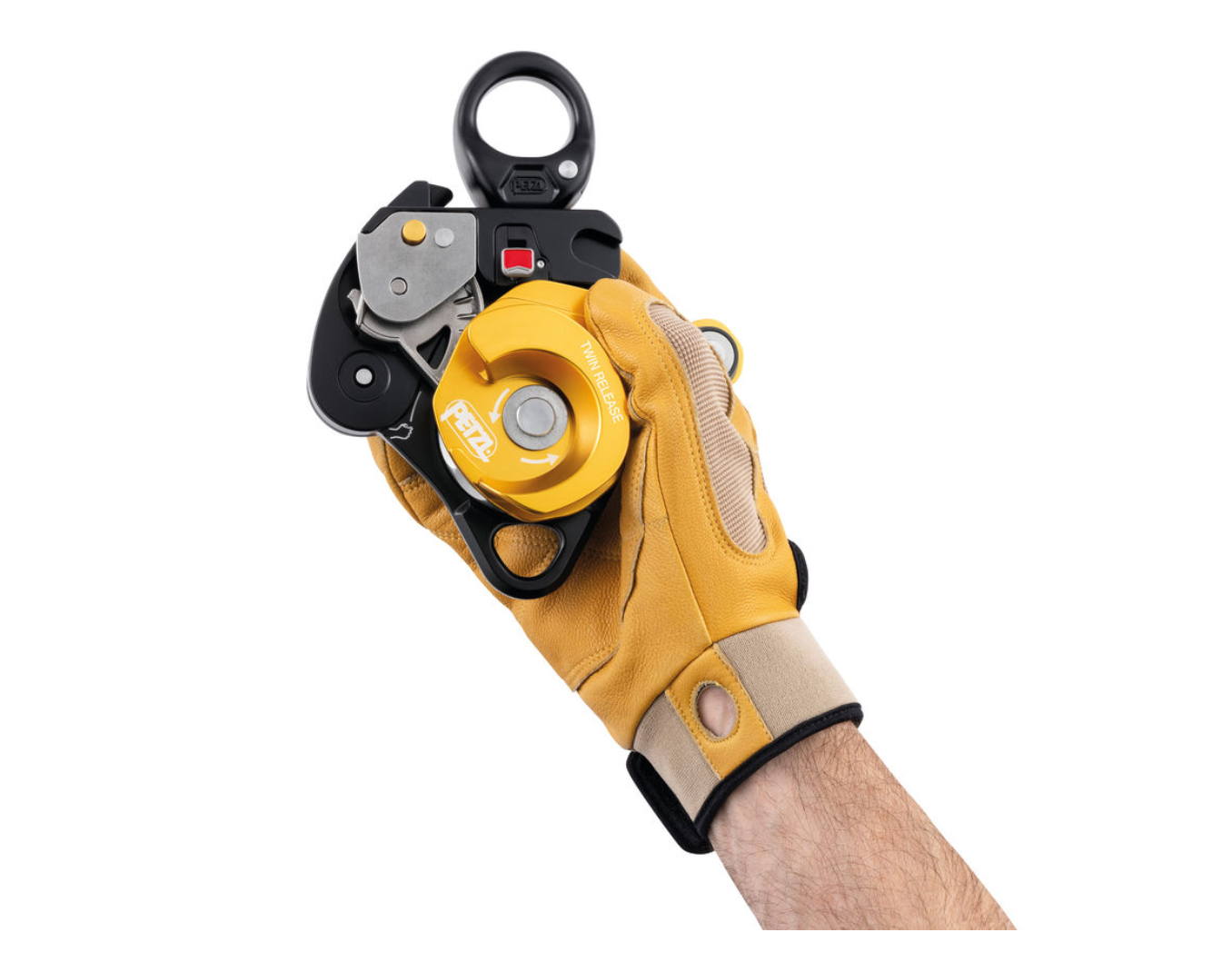

Triple-action opening of the moving side plates is quick and easy, even with gloves
Red indicators provide a visual warning when the side plates are unlocked
The rope can be installed with the device connected to the anchor
Hole in the handle for installation of a remote control cord
Facilitates operations, thanks to the swivel
Allows pulley to be oriented under load
Accommodates up to three carabiners
Swivel and auxiliary attachment point allows the use of ropes and slings for easier rigging

Specifications

Rating: Maximum Working Load: 280 kg (more information in the technical notice PDF)
Lifespan: 10 years from date of first use
Weight: 800 g
Dimensions: Min. rope diameter: 8 mm - Max. rope diameter: 13 mm
Materials: Aluminum, stainless steel, nylon
Safety Standard: CE EN 567

CE EN 567, CE EN 12278 partial*, NFPA 2500 Pulley General Use, NFPA 2500 Rope Grab Technical Use, UKCA, XF 494: FZL-H-T 9.5/13, XF 494: FZL-Z-Q 9.5/13 * Meets performance requirements of the EN 12278 standard

Download Technical Notice PDF
