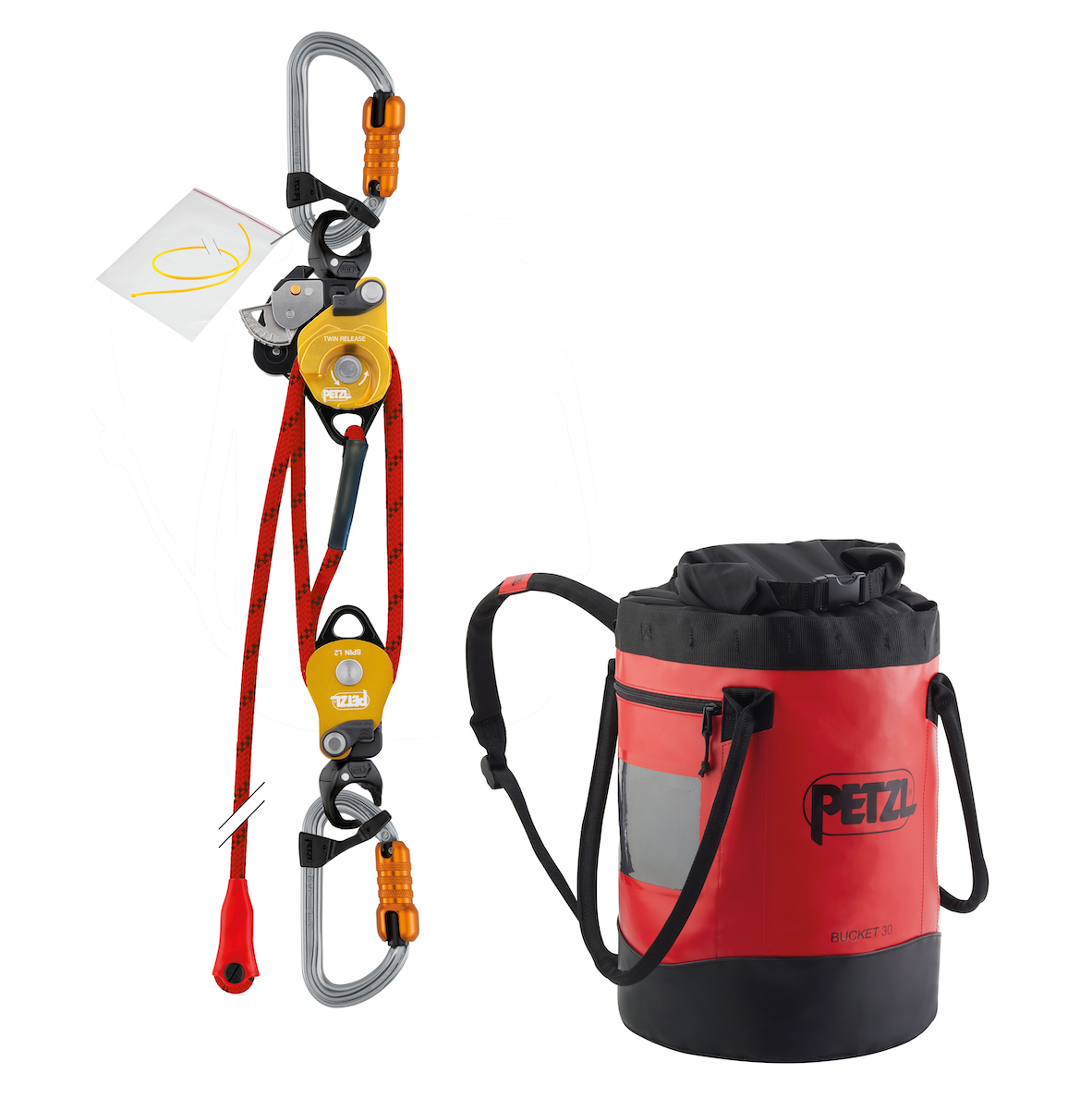

PETZL TWIN RELEASE 4:1 KIT
The TWIN RELEASE KIT is a pre-assembled, ready-to-use 4:1 hauling and lowering system - ideal for work access and rescue in industrial environments. Simply pull the system out of the bag and attach it to a tripod or fixed overhead anchor point.
The ready-to-use TWIN RELEASE SYSTEM is designed to be attached to a tripod or fixed overhead anchor for vertical work access and rescue in industrial environments. It allows the user to easily lower and haul a load, most commonly in a confined space. It can also be used to tilt and orient a litter or tension a tripod.
With a 4:1 mechanical advantage, this system reduces user effort by a factor of four and can manage a heavy load up to 280 kg. The system is releasable under load and provides additional lowering control when using the auxiliary brake on the TWIN RELEASE.
Additionally, the toothless cam preserves the rope and allows for a smooth transition from hauling to lowering. This kit's maximum working height is 15 meters when fully extended.
What's Included in the Kit?
- 1 TWIN RELEASE releasable double progress-capture pulley
- 1 SPIN L2 double pulley
- 60m Marlow 11mm Static Rope sewn in the becket of the TWIN RELEASE
- 2 Am'D carabiners with CAPTIV positioning bar
- 1 three-meter cord
- 1 30l PETZL BUCKET bag
Note: The kit is pre-assembled using 11mm Marlow Static Rope and Am'D Petzl Carabiners.Â
Features
Specifications
- Rating: Working load limit: 280kg
- Lifespan: 10 years from date of first use (Rope)
- Weight: est. 10kg
- Dimensions: 60m
- Materials: Aluminum, stainless steel, nylon, polyester
- Safety Standard: ANSI Z359.4 Synthetic Rope Tackle Block
Download Technical Notice PDF
- Sku: P001EA00
- Vendor: Petzl
