PRO-3G & 6G Hitch Mount / Counterweight Base Kit

Name: PRO-3G & 6G Hitch Mount / Counterweight Base Kit
Brand: BTS
SKU: 30076-KIT
Price: 10299.0 NZD
Availability: InStock

$10,299.00

Shipping calculated at checkout.

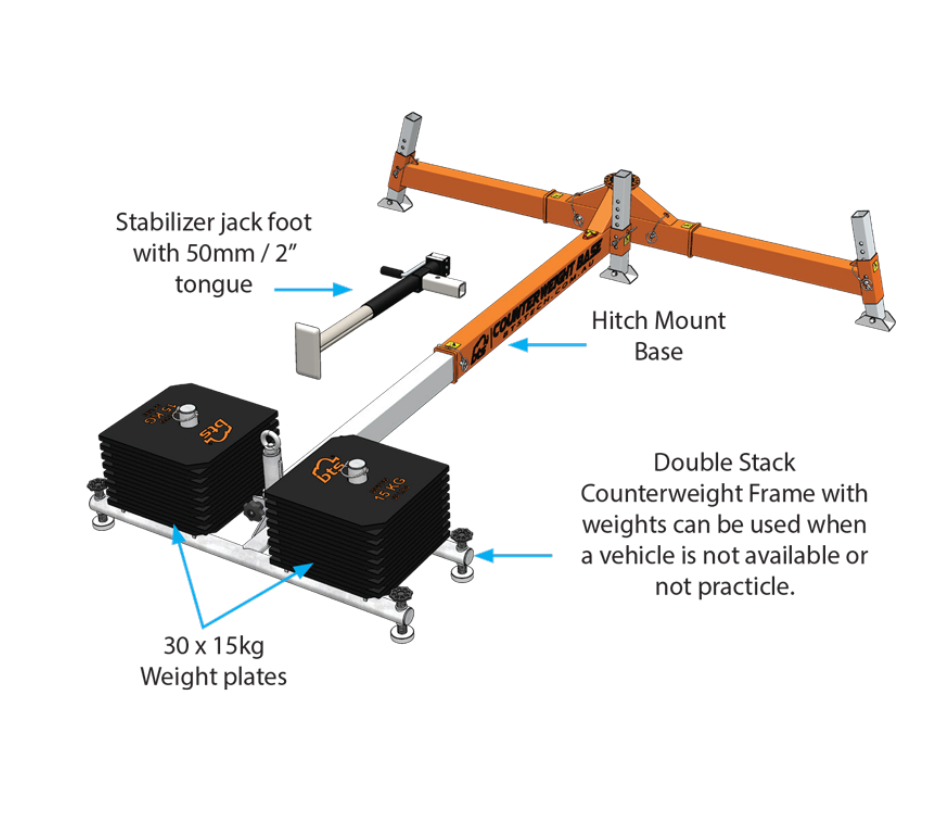

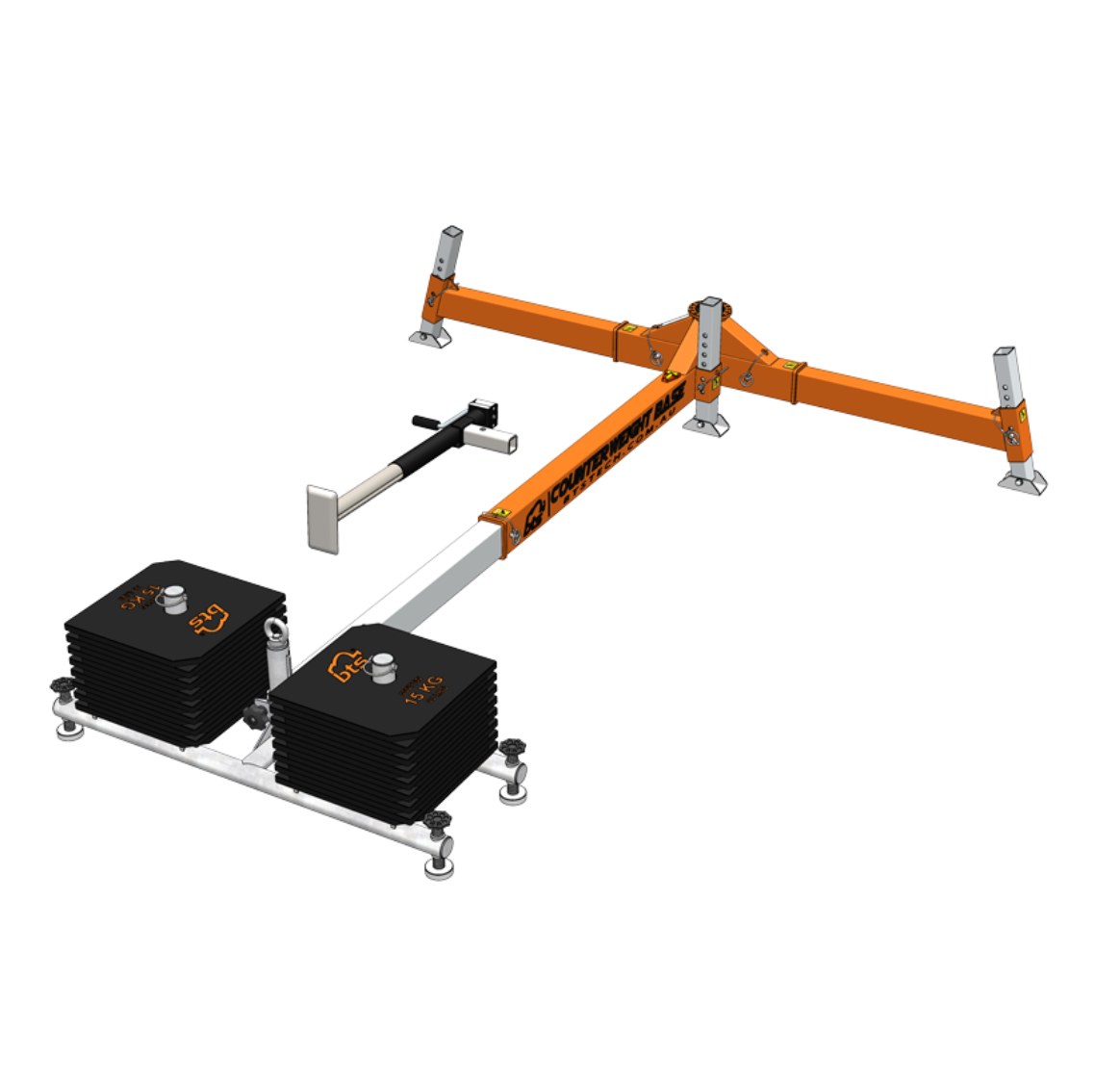

Vehicle Hitch mount/Counterweight davit base c/w bag, steel stillage and 30077K Counterweight base attachment.

The BTS PRO-6 Series Hitch Mount and Counterweight Base Davit system is your ultimate solution for height safety, fall arrest, leading edges and confined space entry and retrieval applications such as manholes, silos and pump stations. The PRO-6 Series Portable Hitch Mount Bases are designed for rugged and demanding applications using external weight sources to anchor the davit system.

Standards: when used in a complete system

OSHA1926.502 and 1910.140.
ANSI Z359.18
AS/NZS 5532 & 1891.4

Product variants

In stock! Orders placed before 2pm ship same day.

Just $200.00 more for FREE STANDARD SHIPPING

Quantity

I agree with the Terms and Conditions.

Features

Easy assembly, no tools required.
Versatile, counterweighted base or attached to a
vehicle with 50mm/2” hitch square receiver.

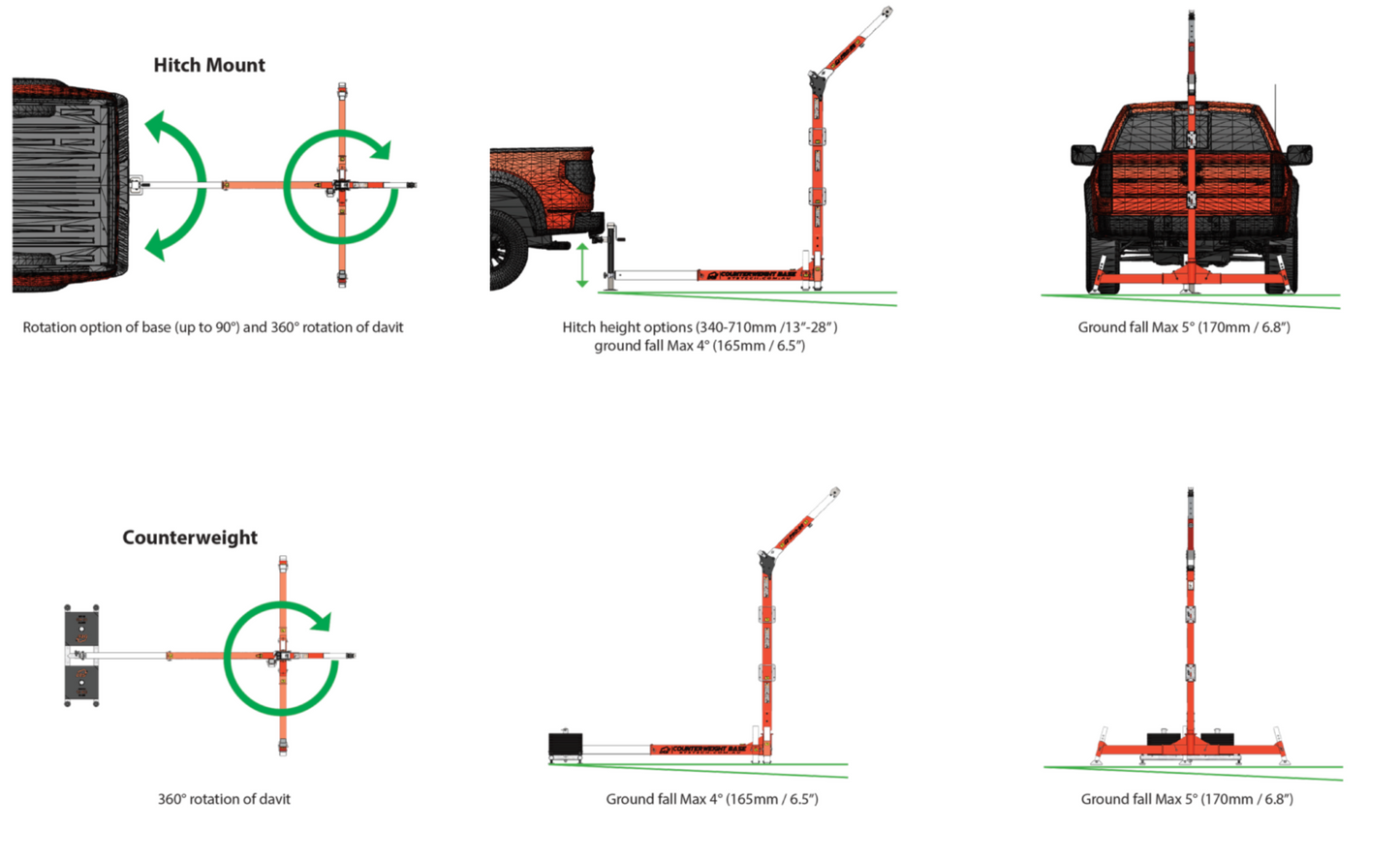

Adjustable hitch mount height 340mm (13.3”) –
710mm (28.0”)
Set up on uneven ground with independently
adjustable support legs.
Base can be rotated from the vehicle hitch up to
90° on either side.
Full 360° rotation of Pro-6G davit for access and retrieval of workers or goods.
Storage bag for easy transportation and storage.
Separates into easy to carry components.
Rated lifting point on the counterweight frame.

Specifications

Rating: Fall Arrest: Up to 2 users 140kg (310lbs) each. Work positioning: Up to 2 users 140kg (310lbs) each. Rescue retrieval: Up to 2 users 140kg (310lbs) each. MRC / WLL / Load: 140kg (310lbs) Max. USERS = 1 in pit & 1 operating winch
Lifespan: Ongoing with Periodic Inspection
Weight: 521kg
Dimensions:
Materials: Steel
Safety Standard: AS/NZS1891.4, AS/NZS 5532-2013 & CE EN795
