Stainless Steel Hand brake Winch

$1,441.00
 per
Shipping calculated at checkout.

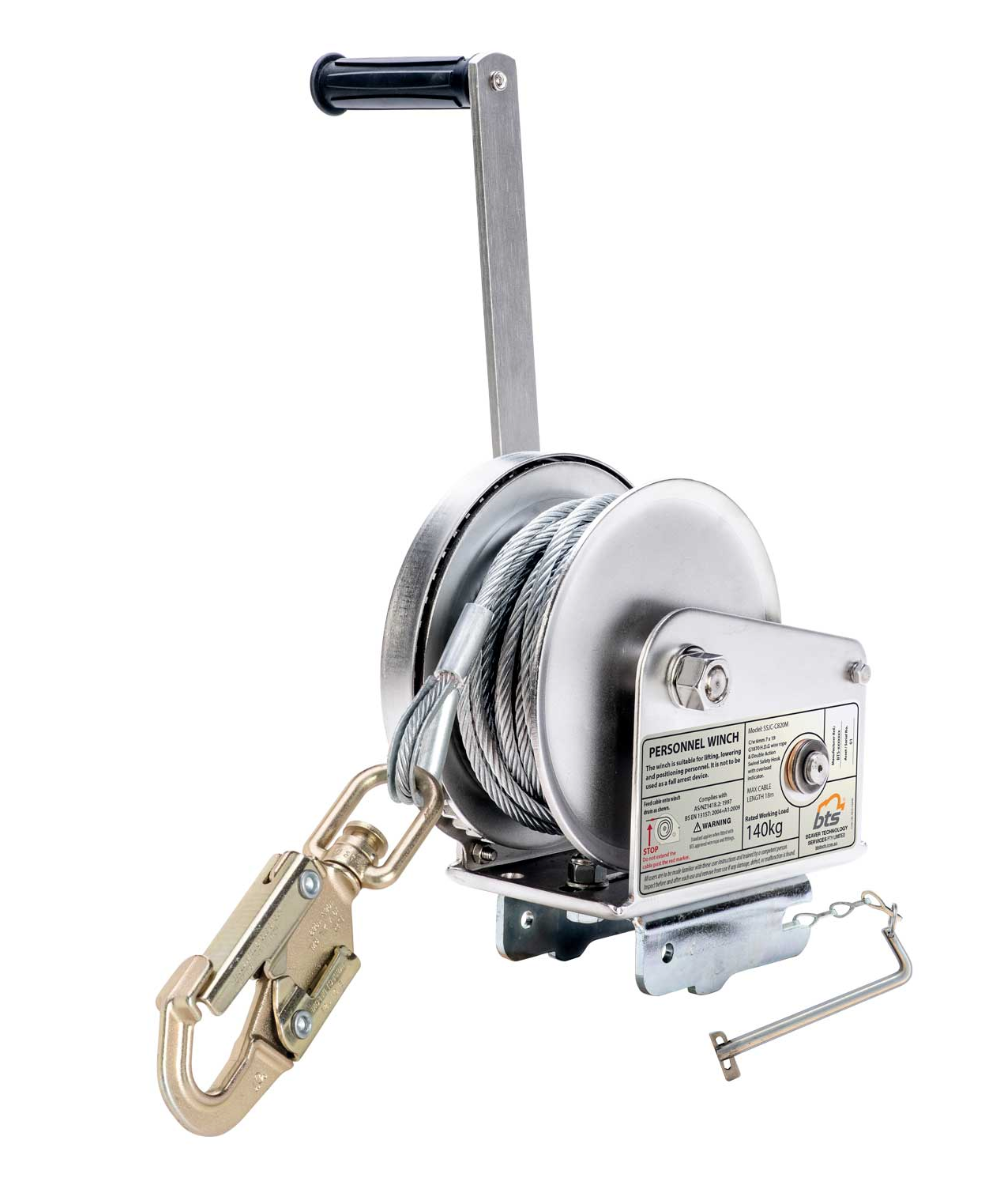

SSJC-C820M Stainless Steel Load Brake Winch - Rated Capacity: 140Kg (Lifting).

COMPLIES WITH AS1418.2, BS EN 13157: 2004+A1:2009 and relative EC Declaration of Conformity 2006 / 42 / EC / appendix 11A.

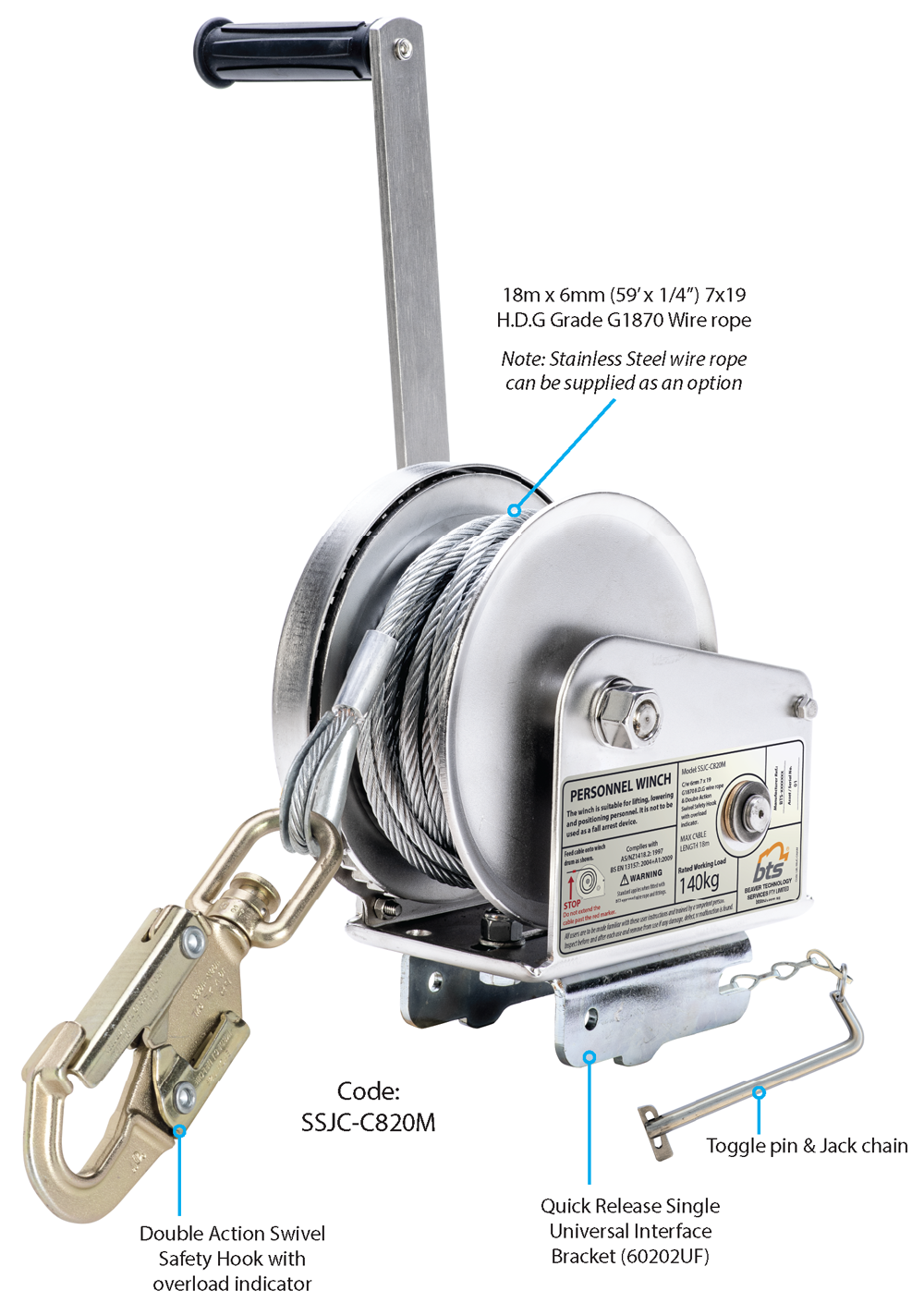

Complete with 18m x 6mm 7x19 H.D.G Grade G1870 Wire rope, Quick Release Single Universal Interface Bracket and 6mm Grade 80 Eye Swivel Self Locking Hook

In stock! Orders placed before 2pm ship same day.
Just $200.00 more for FREE STANDARD SHIPPING

Features

  • 5:1 gear ratio.
  • Very low operator effort required for easy operation.
  • Double pawl safety feature.
  • Stainless steel construction Grade 304.
  • Automatic weather proof Weston brake.
  • Automatic load actuated breaking system, no free wheeling under load.
  • Winch bearings made from bronze for additional corrosion resistance.
  • Ergonomic rubber handle.
  • Enclosed gear train.
  • Minimum handle effort to lift or pull.
  • C/w18m x 6mm (59’ x 1/4”) 7x19 H.D.G Grade G1870 Wire rope.
  • C/w Double Action Swivel Safety Hook with overload indicator.

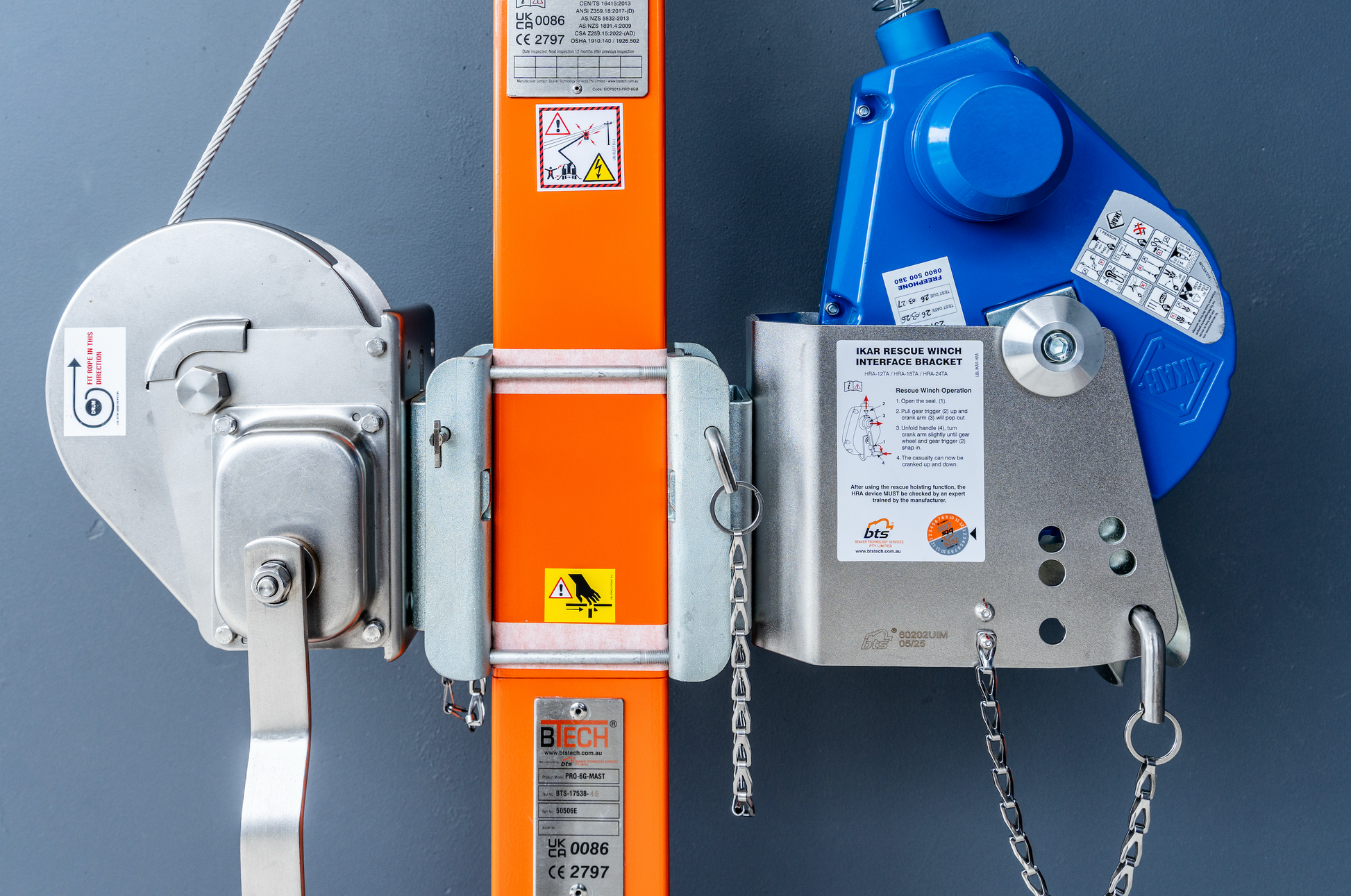

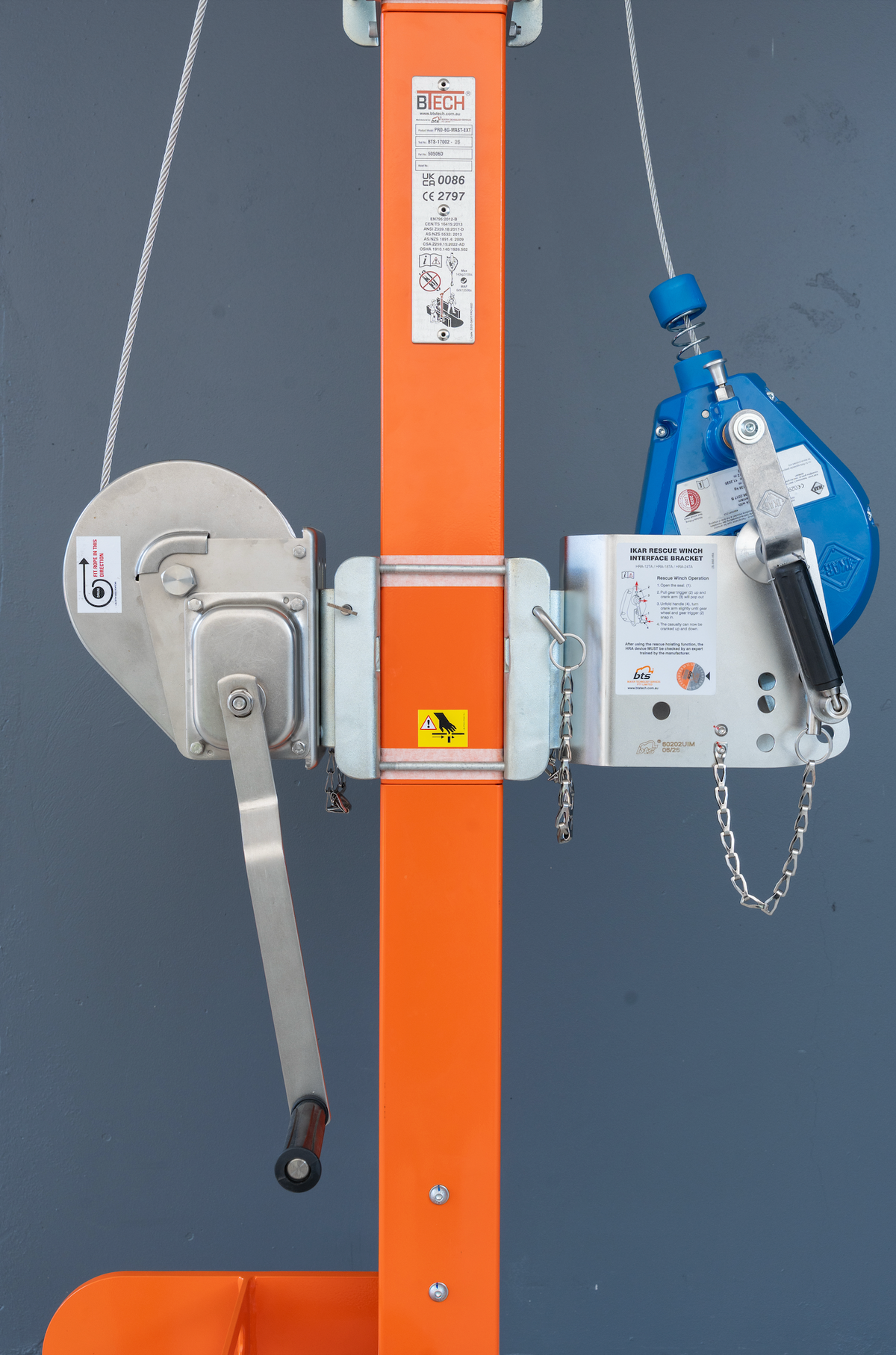

  • Quick Release female Single Universal Interface Bracket c/w locking toggle pin & jack chain lanyard designed specifically to match BTS Universal quick release interface tripod bracket (30014SB) or BTS Quick Release Double Sided Universal Male Interface Bracket (60202UA).

Specifications

  • Rating: Maximum Rated Capacity: 140Kg
  • Lifespan: 10 Years
  • Weight:
  • Dimensions: 18m Length
  • Materials: 304 Stainless Steel
  • Safety Standard: AS1418.2

AS 1418.2-1997 Cranes (including hoists and winches) - Part 2

  • Sku: SSJC-C820M
  • Vendor: BTS
