Temporary Metal Roof Horizontal Static Line System

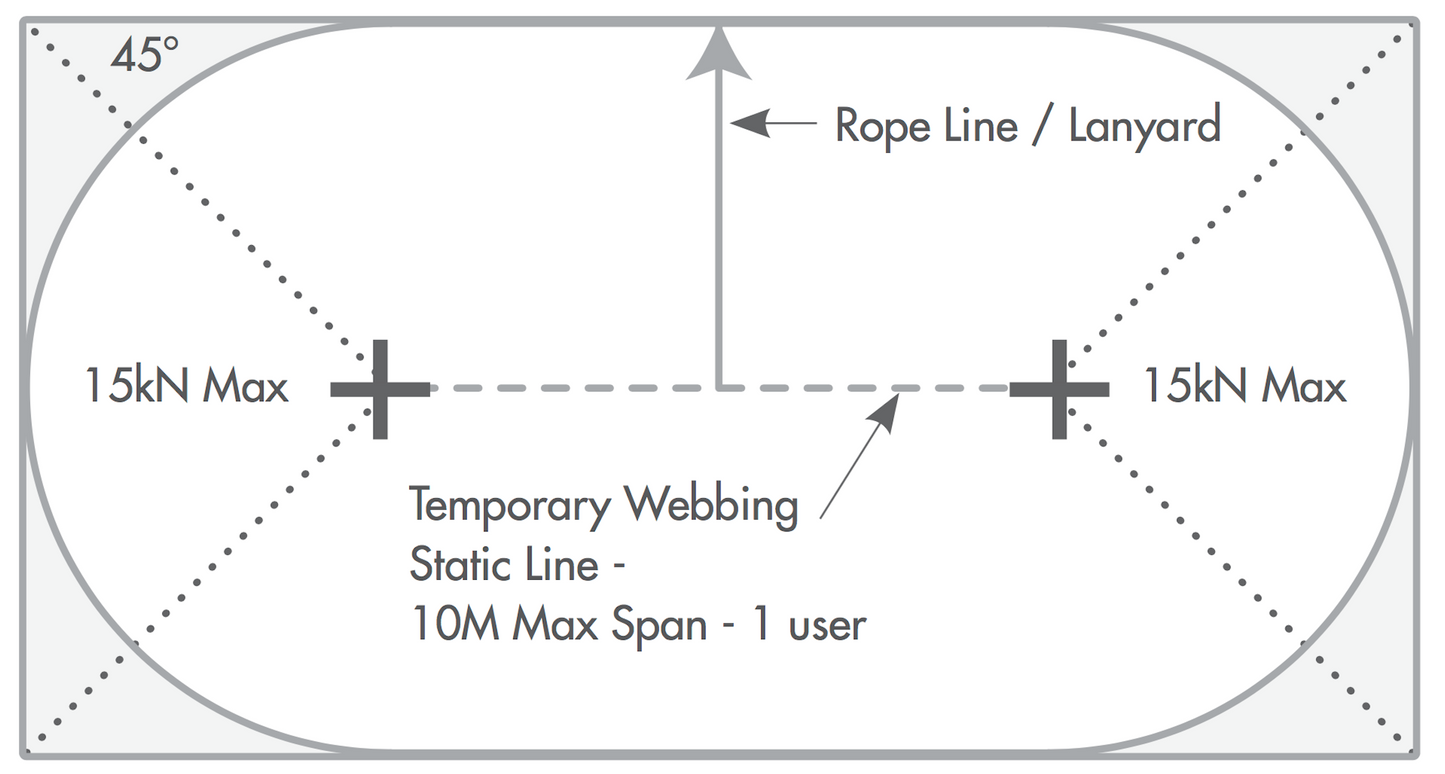

The temporary metal roof mount horizontal static line kit has been developed and rated at 15kN with a maximum span of 10.0m with one user per span.

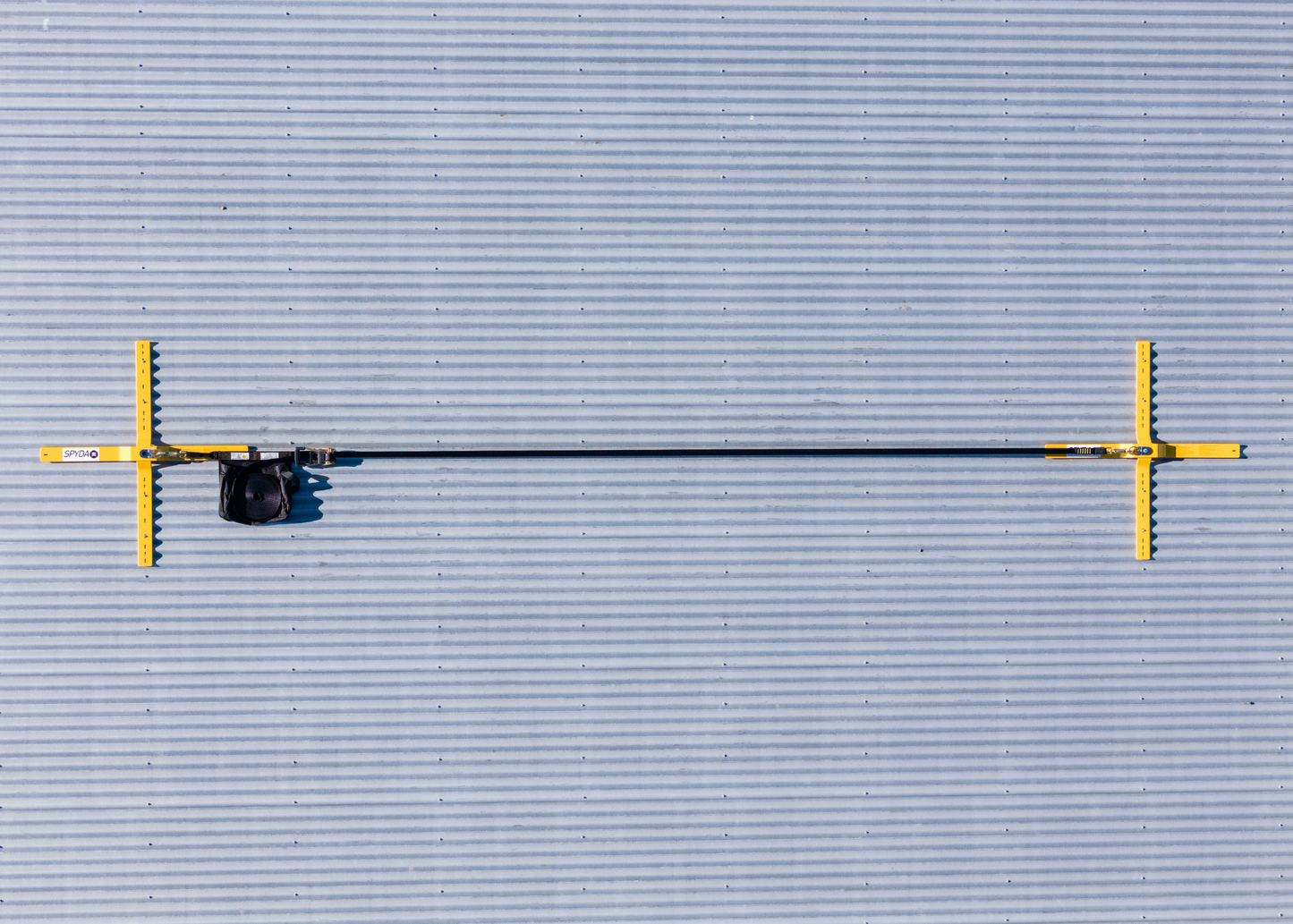

This temporary kit is designed for sheet metal screw fixed roofing applications consisting of 2 - AP145 anchor kits and a 20m horizontal webbing static line system. The 2 end anchor anchors can be positioned anywhere from 1m right out to a maximum span of 10.0m on different roof sheet pattens and profiles.

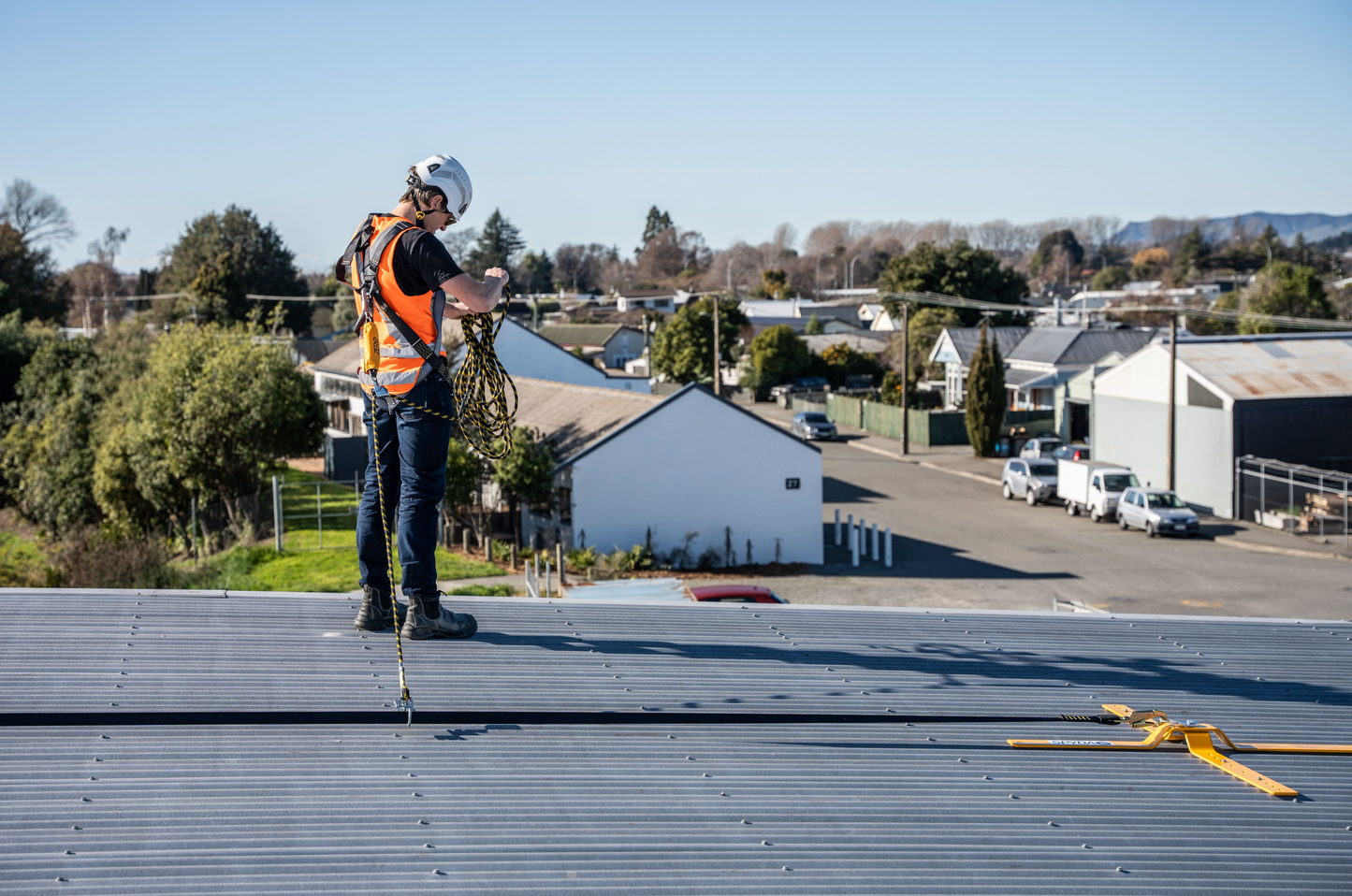

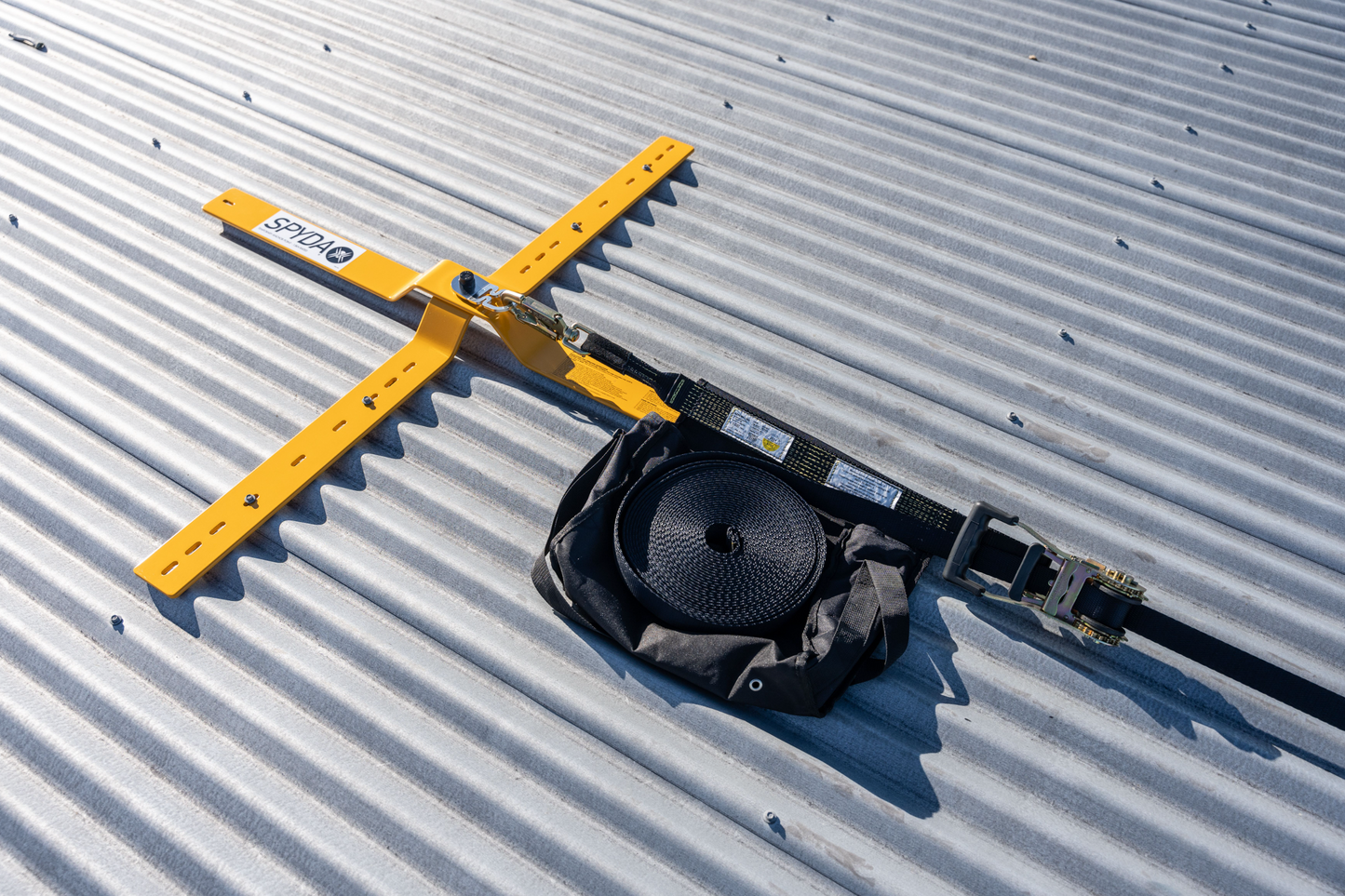

Once the anchors have been installed simply connect the adjustable webbing static line kit end snap hook connectors into the anchor points and tension up the system. Once the system has been fully set up you can use a fixed, adjustable lanyard or adjustable roof safety line system depending on the access requirements.

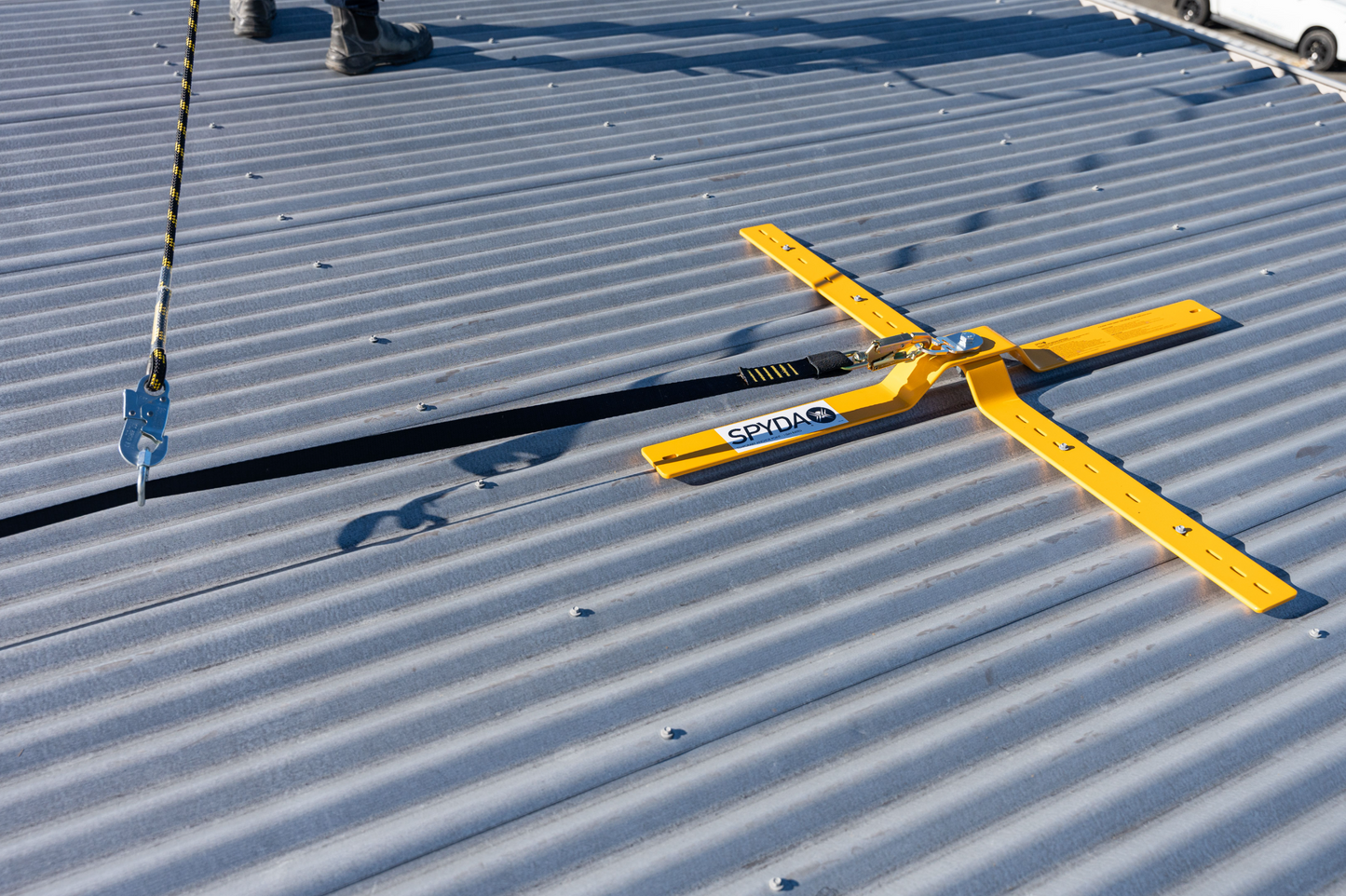

And if a static line system is not required for the task simply use one the individual anchors with an adjustable roof safety line connected into it's unique energy absorbing swivel attachment point so there is no possibility of snap hook roof-out. In the event of a fall there is a uniform load distribution. Lightweight and relocatable, the AP145 folds into a compact unit and is easily transported with the supply carry bag.
This kit has been tested in accordance with New Zealand Standards AS/NZS 1891.4:2009 and AS/NZS 5532:2013
What comes with the kit
2 - AP145 Anchor points with Individual carry bags, Screw fixing packs and Operation manual

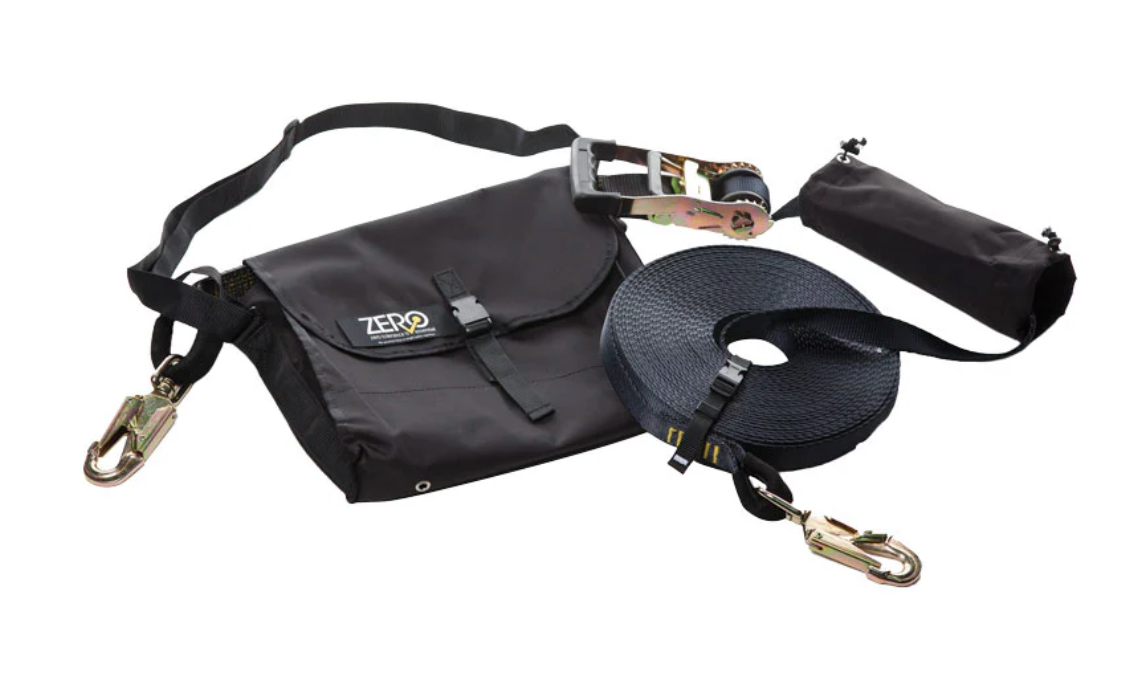

1 - Z-LINE 20m Temporary webbing static line kit and carry bag
Features
Specifications
- Rating: 15kN
- Lifespan: 10 Years
- Weight: 12KG
- Dimensions: Anchor plates 1.25m x 1.15m Webbing Static Line 20m length
- Materials: Pivot arms - high tensile powder coated aluminium Static line 35mm Polyester Webbing
- Safety Standard: AS/NZS 1891.4:2009 and AS/NZS 5532:2013
- Sku: AP145KIT01
- Vendor: KATTSAFE
