ZERO DESCEND MATE TRIPOD and WINCH KIT

$2,849.00
 per
Shipping calculated at checkout.

ZERO DESCEND MATE TRIPOD and WINCH KIT includes a Zero Descent Mate Tripod, Zero Descent Mate Winch and Zero Universal Tripod bracket ready to use on your next confined space project.

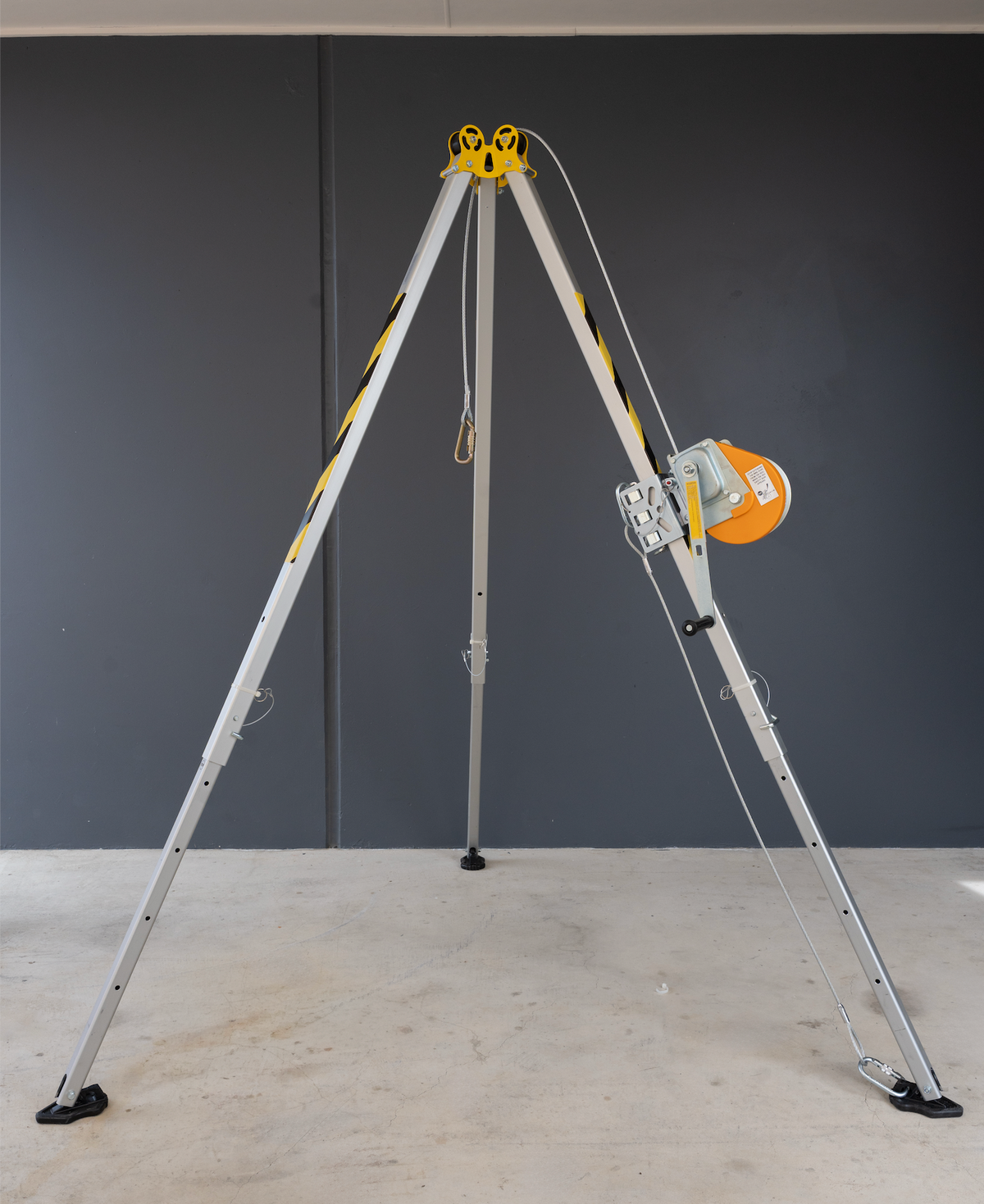

Tripod: The Descend Mate Aluminium Tripod is a multifunctional tool for lifting loads, assisting in access to confined spaces, as well as for securing and rescuing people.

The Descend Mate offers complete safety without having to be anchored to the ground.

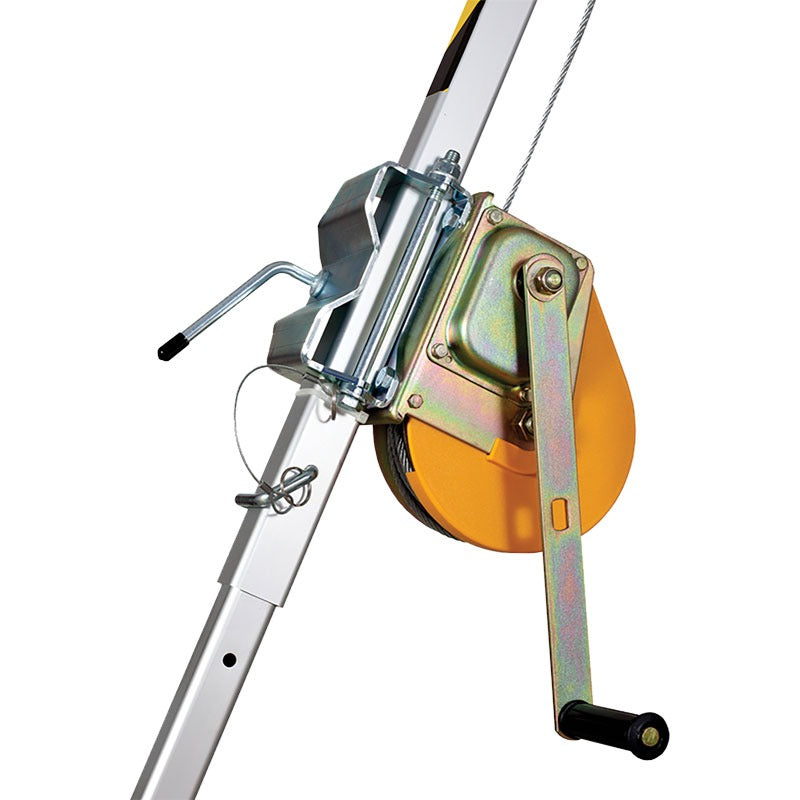

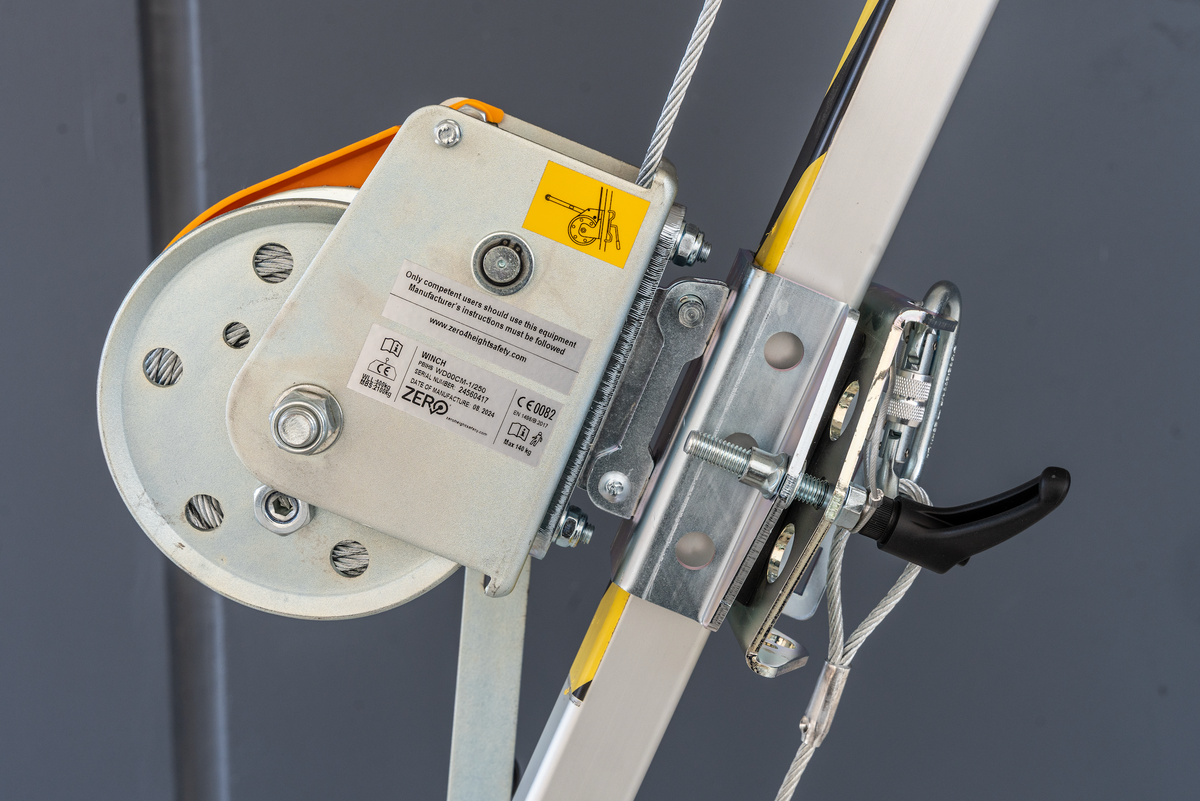

Winch: The Descend is a lifting and lowering rescue device with automatic braking ideal for basic confined space projects. Using a galvanised steel cable, the Descend Fits to all Tripods and Davit systems using the universal mounting bracket (sold separately).

The winch includes the shock absorbing spring.

Bracket: The universal tripod bracket can be attached to all tripods in the ZERO range.

Features

Tripod:

  • Adjustable telescopic length legs with chain or webbing to use between tripod legs.
  • Rubber pads on feet to assist in stability.
  • Supplied complete with Tripod PVC carry bag.
  • Confined space working area: 140cm - 213cm.
  • Dimensions when folded:172cm x 23cm x 23cm.

Winch:

  • Automatic braking.
  • Working load of 140kg.
  • Breaking force 1800kg.
  • Cable Length: 20m.
  • Weight: 13kg.
  • Rated to 140kg.
  • Other lengths are available on request.
  • Mounting bracket sold separately.

Bracket:

  • The universal tripod bracket can be attached to all tripods in the ZERO range
  • Robust steel construction
  • Galvanised finish
  • Steel lanyard included

Specifications

  • Rating: Tripod: 500kg Winch: 140kg
  • Lifespan: Up to 10 Years
  • Weight: est. 31.5kg
  • Dimensions: Tripod: 147-229cm(H) 119-182cm (L) Winch: 20m Cable Length
  • Materials: Aluminium Tripod, Galvanised Steel Winch Cable
  • Safety Standard: EN 795:2012/EN 1496:2017

EN 795:2012 Personal fall protection equipment. Anchor devices. EN 1496:2017 Personal fall protection equipment. Rescue lifting devices


Download Technical Notice PDF
  • Sku: TD00AXKIT-1
  • Vendor: ZERO
